Trans-Dapt Performance 42031 - SWAP IN A BOX KIT-LS ENGINE INTO 75-81 F-BODY AUTOMATIC TRANSMISSION W/BLACK HEADERS
Write a Review
Write a Review
Trans-Dapt Performance
Trans-Dapt Performance 42031 - SWAP IN A BOX KIT-LS ENGINE INTO 75-81 F-BODY AUTOMATIC TRANSMISSION W/BLACK HEADERS
$2,033.76
$1,106.99
(You save
$926.77
)
SKU:
FBLH-42031
UPC:
086923420316
Stock:
0
Vendor:
Motor State - CSR
SpecialOrder:
False
CarbRejected:
False
CouponIsOn:
False
StockEta:
N/A
ProfitMargin:
12.600
CostOfItem:
957.89
ItemPopularity:
0
MapPrice:
0
RetailPrice:
2033.76
EbayAllowed:
False
WarehouseStock:
0
ShippingGroups:
["Flatrate_Motor State"]
EbayPrice:
1106.99
ShipperHq:
{"shipping-groups":["Motor State","FreeShipping","Flatrate_Motor State"],"shipping-origins":[],"shipping-dimensional-rules":[]}
IsReturnable:
True
EbayPriority:
0
Trans-Dapt Performance 42031 - SWAP IN A BOX KIT-LS ENGINE INTO 75-81 F-BODY AUTOMATIC TRANSMISSION W/BLACK HEADERS
$2,033.76
$1,106.99
(You save
$926.77
)
Trans-Dapt Performance - 42031
Engine Conversion Kit - Crossmember / Gaskets / Hardware / Headers / Mounts / Oil Pan / Pickup Tube - Auto Trans - GM LS-Series - GM F-Body 1975-81 - Kit
Engine Swap-In-A-Box Kit; For Installing a GM LS (Gen III/IV) and AUTOMATIC Transmission in 1975-81 GM F-Body Cars (Chevy Camaro, Pontiac Firebird); Standard-Duty, Mild Steel, 1-3/4 in., MID-LENGTH Tube Headers- UNCOATED Headers
Air Conditioning: Yes
Collector Size: 3 in.
Engine: Chevy LS Series
Emissions Notes: Not Legal For Street Use on '75-Later Model Years! Legal for off-road use only.
Contents: Headers; Engine Mounts; Transmission Crossmember; Oil Pan; Hardware and Gaskets
Exhaust System Dia: 3 in.
Reducer Outlet Size: 2-1/2 in.
Collector Style: BALL and SOCKET Style (Gasketless)
Baffled: No
Flange Thickness: 0.375 in.
Transmission Compatibility: 4L60E
Power Steering: Yes
Manual Transmission - Floor: No
Manual Transmission - Column: No
Automatic Transmission - Floor: Yes
Automatic Transmission - Column: No
Finish: Uncoated Headers
Product Type: Complete SWAP-IN-A-BOX Kits
Tuned: No
Installation Notes: Pan has -10AN inlet / outlet ports, and requires relocation of the oil filter.

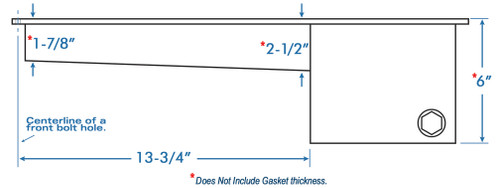

Oil Pan Depth (in): 2 in. at front of Pan; 6 in. at Rear Sump
with EGR: No
with A.I.R. System: No
Kicked Out: No
Sump Location: Rear
Dipstick Port: No
Variations: 42031, 42032, 42033.
Header Style: Mid-Length Tube
Transmission Notes: Not for use with 4L80E or 4L85E Transmissions.
Sump Style: Wet Sump
Product Details: Engine swap kit for installing an LS engine into 1975-81 Chevy Camaro and Pontiac Firebird
Pickup #: 2522
O2 Sensors Included: No
IMPORTANT!: Some LS have dipstick in pan and will require drilling of dipstick port on block
Tube Diameter: 1-3/4 in.
Oil Pan Included: Yes
Windage Tray Included: No
Transmission Mount/Crossmember Included: 6419
Reducers Included: Yes
Pickup Included: Yes
Oxygen Sensor Bung Included: No
Oil Pan Bolts Included: Yes
Mounting Hardware Included: Yes
Primary Tube Gauge: 16g
Motor Mounts Included: 4203
Installation Hardware Included: Yes
Hedman Hedders Included: Yes
Header Fasteners Included: Yes
Gasket Or Seal Included: Yes
Drain Plug Included: Yes
Y-Pipe Included: No
Primary Tube Diameter (in): 1.75 in.
Collector Bolts Included: Yes
Transmission Type: Automatic Transmission
Sump Dimensions: Driver: 4 3/4 in. x 3 in. x 8 1/4 in.; Passenger: 7 in. x 8 1/4 in.
Replacement Motor Mount Kit: 4203
Replacement Head Flange Gasket: Yes
Replacement Gasket: 27470
Vehicle Family: F-Body (GM) 1975-81
Transmission Mount Type: Crossmember
Package Contents: Headers; Engine Mounts; Transmission Crossmember; Oil Pan; Hardware and Gaskets
Oil Pan Material: Steel
Oil Pan Capacity: 5 Qt. Capacity
O2 Provision: No
Cylinder Head: Factory Style
Header Finish: Uncoated
Header Material: Mild Steel
Crank Shaft Wiper Included: No
Bolts/Studs Included: Yes
