Racepak - 250-DS-IQ3LD

Digital Dash - IQ3 - Logger Dash - V-Net System - USB Programming Cable Included - Black - Racepak Digital Dashes - Kit

IQ3 Logger Dash; Incl. IQ3 Data Logger Dash / RPM Harness /512 MB MicroSD Memory Card / GPS Antenna And Cable / Programming Cable / Software;

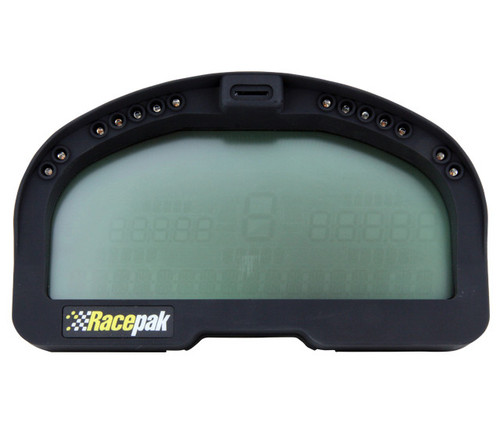

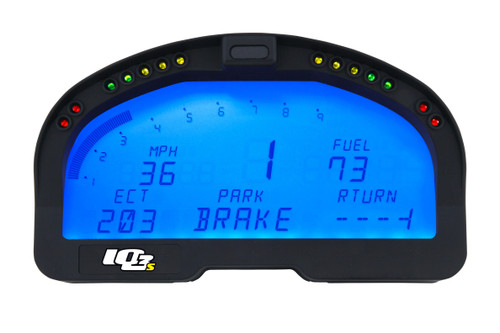

The IQ3 Logger Dash combines a 32 channel data logger with a complete display dash. This eliminates the need for an external data recorder and simplifies wiring complexity. The display features four user-definable pages of data with programmable shift and warning lights. Data is collected on a front-mounted MicroSD card for convenience. Internal GPS speed measurement eliminates the need for added wheel sensors. The box includes: IQ3 data logger dash, power/ground/engine RPM harness, 512mb microSD memory card, GPS antenna and cable, programming cable and DatalinkII software and installation manual. Specifications: 32 total channels of data / 24 programmable sensor inputs on 4 pages / internal GPS / programmable shift and warning lights / gear indicator. Dimensions: 9.00 in. (L) x 12.50 in. (W) x 4.00 in. (H) (22.86 cm. x 31.75 cm. x 10.16 cm.) / 3 lb. (731.4 g)

• 32 Total Channels Of Data
• 24 Programmable Sensor Inputs On 4 Pages
• Internal GPS
• Features Programmable Shift And Warning Lights / Gear Indicator
• Includes IQ3 Data Logger Dash / Harness / More Parts
