Racepak - 250-DS-IQ3D

Digital Dash - IQ3 Drag Logger - V-Net System - Harness / Micro SD Card / Sensors / Software / USB Programming Cable - Racepak Digital Dash - Kit

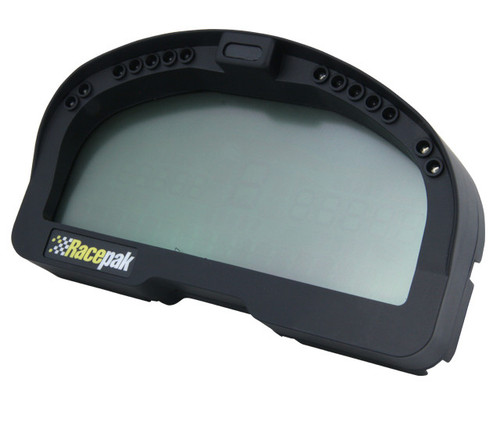

The IQ3D combines the look and feel of our popular IQ3 dash with a robust, built-in data logger for Sportsman Drag Racing, Street Strip projects, or any vehicle that needs a programmable display with built-in data logging!

The IQ3D is designed for the sportsman drag racer looking for a compact, all-in-one solution. It combines the look and feel of our popular IQ3 dash with a robust, built-in data logger. Information is displayed on four user-definable pages and recorded data is stored on a microSD memory card located on the face of the dash for easy access. The IQ3D has built-in support for over 20 of the most popular EFI systems. The box includes wiring harness with 2 programming buttons, driveshaft sensor, oil pressure sensor, water temperature sensor, USB programming cable, Racepak Datalink II software and MicroSD card and reader. It is compatible with AEM V2/EMS-4/Infinity EMS / Big Stuff 3 / Electromotive TECGT / EMS EM-Tech ECU / Emtron ECU / FAST XFI / Fuel Tech (200,250,300,350,500v1,500v2, 600) / Holley Dominator / InjPro / Life Racing F88 / Link G4+ Series / MaxxECU / MEFI-4B / MegaSquirt-III (DIY Autotune) / MicroTech / MoTeC CAN (Data set 3) / MSD Atomic LS / MSD Atomic TBI / OBD-II (2008 and later) / Pro EFI / User Configured (CAN bus knowledge required). The IQ3D connects to these ECU systems using EFI adapter cables. Specifications - records engine and driveshaft RPM, oil PSI, water temperature, battery voltage and 12v Event / displays up to 28 inputs via 4 pages / blue dimmable backlight / four user defined alarms / user defined 5 character sensor input names / programmable shift light output for up to six shift points / shielded, low luster display for sunlight viewing / six additional V-Net channels available (2 and 4 channel upgrades available, up to 18 channels) / connects to over 20 aftermarket EFI products including Holley, FAST, Big Stuff 3 and more / shock travel upgrade package available. Dimensions - 7.30 in. (W) x 4.10 in. (H) x 2.10 in. (D) (18.54 cm. x 10.41 cm. x 5.33 cm.) / 1.0 lb. (454 g.)

• Channels: 12 Total - 6 internal and option to expand 6 V-Net digital/analog
• Sample Rate: V-Net records data up to 100 frames per second
• Memory: up to 16GB microSD card
• 6 external V-Net sensor inputs with optional high speed logging modules
• Displays up to 28 inputs via 4 pages of microSD Memory.
• Blue Backlight for a stylish look.
• Gear Indicator
• Eight user definable alarms with on screen warning text and lights
• User defined 5 character sensor input names
• User defined shift points
• Shielded, low glare display for sunlight viewing
• Metric and English units for multiple display options.
