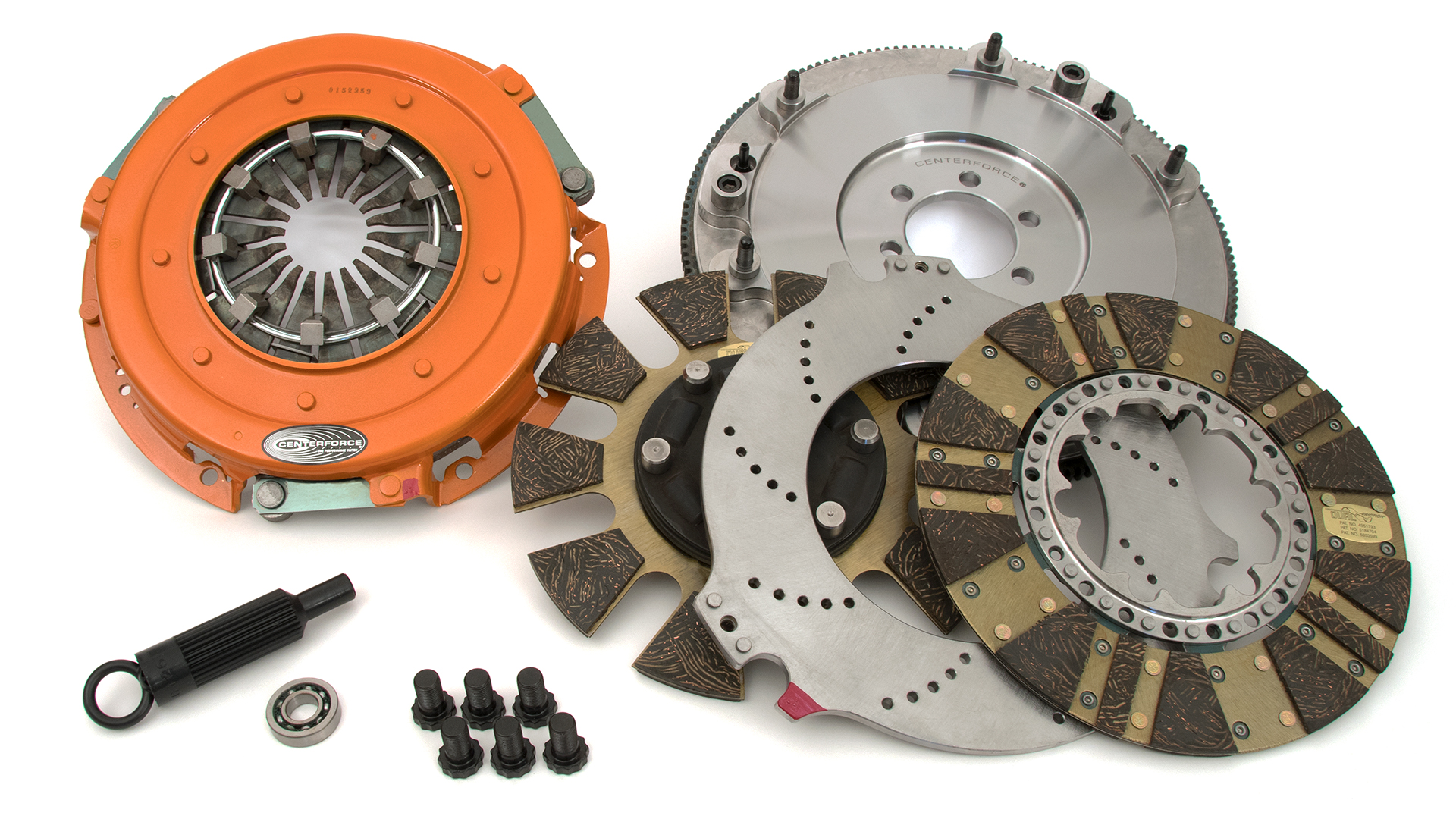

Centerforce 413614860 - DYAD ? DS 10.4, Multi-Disc Clutch and Flywheel Kit, 51.75 lbs, 166 Tooth Gear, 0 in/oz Internally Balanced, 6 Bolt Crank, 1300 ft/lbs Capacity, 10.4in Dia., 26-Spline, Fits Pontiac Cars 8 Cyl
Write a Review
Write a Review
Centerforce
Centerforce 413614860 - DYAD ? DS 10.4, Multi-Disc Clutch and Flywheel Kit, 51.75 lbs, 166 Tooth Gear, 0 in/oz Internally Balanced, 6 Bolt Crank, 1300 ft/lbs Capacity, 10.4in Dia., 26-Spline, Fits Pontiac Cars 8 Cyl
$2,162.99
$1,753.99
(You save
$409.00
)
SKU:
BDPL-413614860
UPC:
788442034189
Stock:
0
Vendor:
Premier - CSR
SpecialOrder:
True
CarbRejected:
False
CouponIsOn:
False
StockEta:
N/A
ProfitMargin:
8.000
CostOfItem:
1600.20
ItemPopularity:
0
MapPrice:
1729.95
RetailPrice:
2162.99
EbayAllowed:
False
WarehouseStock:
0
ShippingGroups:
["Flatrate_Premier"]
EbayPrice:
1729.95
ShipperHq:
{"shipping-groups":["Premier","FreeShipping","Flatrate_Premier"],"shipping-origins":[],"shipping-dimensional-rules":[]}
IsReturnable:
True
EbayPriority:
0
Centerforce 413614860 - DYAD ? DS 10.4, Multi-Disc Clutch and Flywheel Kit, 51.75 lbs, 166 Tooth Gear, 0 in/oz Internally Balanced, 6 Bolt Crank, 1300 ft/lbs Capacity, 10.4in Dia., 26-Spline, Fits Pontiac Cars 8 Cyl
$2,162.99
$1,753.99
(You save
$409.00
)
Centerforce - 413614860
DYAD(R) DS 10.4, Clutch and Flywheel Kit
The Centerforce(R) DYAD(R) DS (Drive System) 10.4 Inch patented multi-disc clutch offers smooth engagement, light pedal, and high-end holding capacity for engine torque levels from 500 to 1300 ft /lbs.
The Centerforce(R) DYAD DS 10.4 in. twin disc clutch has been developed for vehicles requiring a holding capacity of 500 to 1300 ft/lbs of torque at the crank. The pressure plate features our patented centrifugal weight system for superior clamp load over stock and our patented ball bearing actuated pressure plate providing light pedal effort. The discs are equipped with organic segmented facings providing increased holding capacity and the sprung/dampened drive disc provides smooth drivability. DYAD DS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's. Components are designed, machined and assembled in the USA. DYAD DS clutches are match balanced and ready for installation using the included ARP fasteners.
- No Complicated Setup Or Adjustments Required
- Fully Dampened Clutch Developed For Vehicles W/extreme Power
- Patented Ball Bearing Pressure Plate
- Patented Multi-disc Floating Disc And Drive Disc Design
- Quiet; Positive Drive Floater
- Smooth Engagement And Light Pedal Effort
- Holds 500 To 1300 Ft/lbs Of Torque
- Precision Balanced
- Greater Longevity
- Arp Fasteners
- Excellent Driver Control
- Comes Preassembled For Your Convenience
Alignment Tool Included: Yes
Clutch Disc Diameter: 10.4
Clutch Disc Diameter: 264.2
Counterweight Assist: YES
Crankshaft Bolt Hole Quantity: 6
Disc Material: Organic/Carbon composite
Disc Type Sprung Solid: Sprung
Disc Type: Segmented face
Flywheel Counter Balance Weight: 0
Flywheel Crank Bolt Size: 1/2 in x 20 x .875
Flywheel Crank Flange Register: 2.750
Input Shaft Diameter: 1-1/8
Input Spline Quantity: 26
Installed Height: 2.910
Made In The USA: Assembled
Material: Billet Steel Flywheel / Nodular Iron Pressure Plate / Segmented Organic Friction
Mounting Hardware Included: Yes
Out of Package Weight: 51.75
Pilot Bushing Included: Yes
Ring Gear O.D.: 13.889
Tooth Quantity: 166
Torque Capacity: 1300
[{"BaseVehicleId":4652,"EngineBaseId":61},{"BaseVehicleId":4652,"EngineBaseId":5365},{"BaseVehicleId":4652,"EngineBaseId":5461},{"BaseVehicleId":4653,"EngineBaseId":61},{"BaseVehicleId":4653,"EngineBaseId":5365},{"BaseVehicleId":4653,"EngineBaseId":5461},{"BaseVehicleId":4654,"EngineBaseId":61},{"BaseVehicleId":4654,"EngineBaseId":361},{"BaseVehicleId":4654,"EngineBaseId":365},{"BaseVehicleId":4654,"EngineBaseId":5365},{"BaseVehicleId":4655,"EngineBaseId":61},{"BaseVehicleId":4655,"EngineBaseId":62},{"BaseVehicleId":4656,"EngineBaseId":61},{"BaseVehicleId":4656,"EngineBaseId":63},{"BaseVehicleId":4656,"EngineBaseId":365},{"BaseVehicleId":4657,"EngineBaseId":63},{"BaseVehicleId":4658,"SubModelId":629,"EngineBaseId":63},{"BaseVehicleId":4658,"SubModelId":631,"EngineBaseId":63},{"BaseVehicleId":4659,"EngineBaseId":63},{"BaseVehicleId":4680,"EngineBaseId":61},{"BaseVehicleId":4744,"SubModelId":20,"EngineBaseId":5365},{"BaseVehicleId":4744,"SubModelId":141,"EngineBaseId":5365},{"BaseVehicleId":4745,"SubModelId":20,"EngineBaseId":5365},{"BaseVehicleId":4745,"SubModelId":141,"EngineBaseId":5365},{"BaseVehicleId":4746,"SubModelId":20,"EngineBaseId":61},{"BaseVehicleId":4746,"SubModelId":20,"EngineBaseId":361},{"BaseVehicleId":4746,"SubModelId":20,"EngineBaseId":5365},{"BaseVehicleId":4746,"SubModelId":141,"EngineBaseId":61},{"BaseVehicleId":4746,"SubModelId":141,"EngineBaseId":361},{"BaseVehicleId":4746,"SubModelId":141,"EngineBaseId":5365},{"BaseVehicleId":4746,"SubModelId":624,"EngineBaseId":61},{"BaseVehicleId":4746,"SubModelId":624,"EngineBaseId":361},{"BaseVehicleId":4768,"EngineBaseId":63},{"BaseVehicleId":4818,"EngineBaseId":5365},{"BaseVehicleId":4819,"EngineBaseId":5365},{"BaseVehicleId":4820,"EngineBaseId":62},{"BaseVehicleId":4820,"EngineBaseId":361},{"BaseVehicleId":16835,"EngineBaseId":5448},{"BaseVehicleId":16836,"EngineBaseId":5448},{"BaseVehicleId":16837,"EngineBaseId":5448},{"BaseVehicleId":16838,"EngineBaseId":5422},{"BaseVehicleId":16838,"EngineBaseId":5461},{"BaseVehicleId":16839,"EngineBaseId":5365},{"BaseVehicleId":16839,"EngineBaseId":5422},{"BaseVehicleId":16839,"EngineBaseId":5461},{"BaseVehicleId":16860,"SubModelId":20,"EngineBaseId":5448},{"BaseVehicleId":16860,"SubModelId":624,"EngineBaseId":5448},{"BaseVehicleId":16861,"SubModelId":20,"EngineBaseId":5448},{"BaseVehicleId":16861,"SubModelId":624,"EngineBaseId":5448},{"BaseVehicleId":16862,"SubModelId":20,"EngineBaseId":5448},{"BaseVehicleId":16862,"SubModelId":624,"EngineBaseId":5448},{"BaseVehicleId":16863,"SubModelId":20,"EngineBaseId":5365},{"BaseVehicleId":16863,"SubModelId":20,"EngineBaseId":5422},{"BaseVehicleId":16863,"SubModelId":20,"EngineBaseId":5461},{"BaseVehicleId":16863,"SubModelId":624,"EngineBaseId":5365},{"BaseVehicleId":16863,"SubModelId":624,"EngineBaseId":5422},{"BaseVehicleId":16863,"SubModelId":624,"EngineBaseId":5461},{"BaseVehicleId":16864,"SubModelId":20,"EngineBaseId":5365},{"BaseVehicleId":16864,"SubModelId":20,"EngineBaseId":5422},{"BaseVehicleId":16864,"SubModelId":20,"EngineBaseId":5461},{"BaseVehicleId":16882,"SubModelId":20,"EngineBaseId":5340},{"BaseVehicleId":16882,"SubModelId":20,"EngineBaseId":5422},{"BaseVehicleId":16883,"SubModelId":20,"EngineBaseId":5365},{"BaseVehicleId":16883,"SubModelId":20,"EngineBaseId":5422},{"BaseVehicleId":16884,"SubModelId":20,"EngineBaseId":5365},{"BaseVehicleId":16884,"SubModelId":20,"EngineBaseId":5422},{"BaseVehicleId":16884,"SubModelId":1654,"EngineBaseId":5365},{"BaseVehicleId":16885,"SubModelId":20,"EngineBaseId":5365},{"BaseVehicleId":16885,"SubModelId":20,"EngineBaseId":5422},{"BaseVehicleId":16886,"SubModelId":20,"EngineBaseId":5365},{"BaseVehicleId":16886,"SubModelId":20,"EngineBaseId":5422},{"BaseVehicleId":16887,"SubModelId":20,"EngineBaseId":5365},{"BaseVehicleId":16887,"SubModelId":20,"EngineBaseId":5422},{"BaseVehicleId":16888,"SubModelId":20,"EngineBaseId":5365},{"BaseVehicleId":16888,"SubModelId":20,"EngineBaseId":5422},{"BaseVehicleId":16888,"SubModelId":20,"EngineBaseId":5461},{"BaseVehicleId":16889,"SubModelId":20,"EngineBaseId":5365},{"BaseVehicleId":16889,"SubModelId":20,"EngineBaseId":5422},{"BaseVehicleId":16889,"SubModelId":20,"EngineBaseId":5461},{"BaseVehicleId":16890,"EngineBaseId":5365},{"BaseVehicleId":16890,"EngineBaseId":5422},{"BaseVehicleId":16890,"EngineBaseId":5461},{"BaseVehicleId":16891,"EngineBaseId":5365},{"BaseVehicleId":16891,"EngineBaseId":5422},{"BaseVehicleId":16897,"EngineBaseId":5448},{"BaseVehicleId":16898,"EngineBaseId":5448},{"BaseVehicleId":16899,"EngineBaseId":5448},{"BaseVehicleId":16900,"EngineBaseId":5461},{"BaseVehicleId":16901,"EngineBaseId":5422},{"BaseVehicleId":16901,"EngineBaseId":5461},{"BaseVehicleId":16922,"SubModelId":20,"EngineBaseId":5461},{"BaseVehicleId":16924,"SubModelId":20,"EngineBaseId":5461},{"BaseVehicleId":16931,"EngineBaseId":5340},{"BaseVehicleId":16932},{"BaseVehicleId":16933,"EngineBaseId":5340},{"BaseVehicleId":16934,"EngineBaseId":5340},{"BaseVehicleId":16935,"EngineBaseId":5365},{"BaseVehicleId":16936,"SubModelId":20,"EngineBaseId":5365},{"BaseVehicleId":16937,"SubModelId":20,"EngineBaseId":5365},{"BaseVehicleId":16937,"SubModelId":20,"EngineBaseId":5461},{"BaseVehicleId":16937,"SubModelId":624,"EngineBaseId":5365},{"BaseVehicleId":16937,"SubModelId":624,"EngineBaseId":5461},{"BaseVehicleId":16938,"SubModelId":20,"EngineBaseId":5365},{"BaseVehicleId":16938,"SubModelId":20,"EngineBaseId":5461},{"BaseVehicleId":16986,"EngineBaseId":5365},{"BaseVehicleId":16987,"EngineBaseId":5365},{"BaseVehicleId":16988,"SubModelId":20,"EngineBaseId":5365},{"BaseVehicleId":16989,"SubModelId":20,"EngineBaseId":5365},{"BaseVehicleId":117432},{"BaseVehicleId":117563,"EngineBaseId":5155},{"BaseVehicleId":117563,"EngineBaseId":5340},{"BaseVehicleId":117563,"EngineBaseId":5548},{"BaseVehicleId":117672,"SubModelId":20,"EngineBaseId":5340},{"BaseVehicleId":117672,"SubModelId":624,"EngineBaseId":5340},{"BaseVehicleId":117764},{"BaseVehicleId":117769,"SubModelId":20,"EngineBaseId":5340},{"BaseVehicleId":117769,"SubModelId":624,"EngineBaseId":5340},{"BaseVehicleId":117849,"SubModelId":20,"EngineBaseId":5422},{"BaseVehicleId":117849,"SubModelId":20,"EngineBaseId":5448},{"BaseVehicleId":117853,"SubModelId":20,"EngineBaseId":5365},{"BaseVehicleId":117853,"SubModelId":624,"EngineBaseId":5365},{"BaseVehicleId":117928,"SubModelId":20,"EngineBaseId":5422},{"BaseVehicleId":117928,"SubModelId":20,"EngineBaseId":5448},{"BaseVehicleId":117932,"SubModelId":20,"EngineBaseId":5365},{"BaseVehicleId":117932,"SubModelId":624,"EngineBaseId":5365},{"BaseVehicleId":118000,"SubModelId":20,"EngineBaseId":5422},{"BaseVehicleId":118000,"SubModelId":20,"EngineBaseId":5461},{"BaseVehicleId":118004,"SubModelId":20,"EngineBaseId":5365}]
