Centerforce 413613000 - DYAD ? DS 10.4, Multi-Disc Clutch and Flywheel Kit, 130 Tooth Gear, 0 in/oz Internally Balanced, 6 Bolt Crank, 1300 ft/lbs Capacity, 10.4in Dia., 26-Spline, Fits Dodge/Plymouth Cars 8 Cyl
Centerforce 413613000 - DYAD ? DS 10.4, Multi-Disc Clutch and Flywheel Kit, 130 Tooth Gear, 0 in/oz Internally Balanced, 6 Bolt Crank, 1300 ft/lbs Capacity, 10.4in Dia., 26-Spline, Fits Dodge/Plymouth Cars 8 Cyl

Centerforce 413613000 - DYAD ? DS 10.4, Multi-Disc Clutch and Flywheel Kit, 130 Tooth Gear, 0 in/oz Internally Balanced, 6 Bolt Crank, 1300 ft/lbs Capacity, 10.4in Dia., 26-Spline, Fits Dodge/Plymouth Cars 8 Cyl

Write a Review
$2,162.99
$1,753.99
(You save $409.00 )
SKU: BDPL-413613000
UPC: 788442034066
Stock: 0
Vendor: Premier - CSR
SpecialOrder: True
CarbRejected: False
CouponIsOn: False
StockEta: N/A
ProfitMargin: 8.000
CostOfItem: 1600.20
ItemPopularity: 0
MapPrice: 1729.95
RetailPrice: 2162.99
EbayAllowed: False
WarehouseStock: 0
ShippingGroups: ["Flatrate_Premier"]
EbayPrice: 1729.95
ShipperHq: {"shipping-groups":["Premier","FreeShipping","Flatrate_Premier"],"shipping-origins":[],"shipping-dimensional-rules":[]}
IsReturnable: True
EbayPriority: 0

Out of stock

  • screenshot-2024-06-06-013938.png
Centerforce 413613000 - DYAD ? DS 10.4, Multi-Disc Clutch and Flywheel Kit, 130 Tooth Gear, 0 in/oz Internally Balanced, 6 Bolt Crank, 1300 ft/lbs Capacity, 10.4in Dia., 26-Spline, Fits Dodge/Plymouth Cars 8 Cyl

Centerforce 413613000 - DYAD ? DS 10.4, Multi-Disc Clutch and Flywheel Kit, 130 Tooth Gear, 0 in/oz Internally Balanced, 6 Bolt Crank, 1300 ft/lbs Capacity, 10.4in Dia., 26-Spline, Fits Dodge/Plymouth Cars 8 Cyl

$2,162.99
$1,753.99
(You save $409.00 )
Description

Centerforce - 413613000

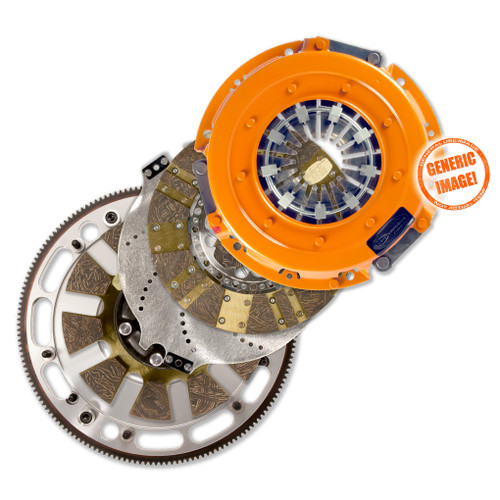

DYAD(R) DS 10.4, Clutch and Flywheel Kit

The Centerforce(R) DYAD(R) DS (Drive System) 10.4 Inch patented multi-disc clutch offers smooth engagement, light pedal, and high-end holding capacity for engine torque levels from 500 to 1300 ft /lbs.

The Centerforce(R) DYAD DS 10.4 in. twin disc clutch has been developed for vehicles requiring a holding capacity of 500 to 1300 ft/lbs of torque at the crank. The pressure plate features our patented centrifugal weight system for superior clamp load over stock and our patented ball bearing actuated pressure plate providing light pedal effort. The discs are equipped with organic segmented facings providing increased holding capacity and the sprung/dampened drive disc provides smooth drivability. DYAD DS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's. Components are designed, machined and assembled in the USA. DYAD DS clutches are match balanced and ready for installation using the included ARP fasteners.

  • No Complicated Setup Or Adjustments Required
  • Fully Dampened Clutch Developed For Vehicles W/extreme Power
  • Patented Ball Bearing Pressure Plate
  • Patented Multi-disc Floating Disc And Drive Disc Design
  • Quiet; Positive Drive Floater
  • Smooth Engagement And Light Pedal Effort
  • Holds 500 To 1300 Ft/lbs Of Torque
  • Precision Balanced
  • Greater Longevity
  • Arp Fasteners
  • Excellent Driver Control
  • Comes Preassembled For Your Convenience

Alignment Tool Included: Yes
Clutch Disc Diameter: 10.4
Clutch Disc Diameter: 264.2
Counterweight Assist: YES
Crankshaft Bolt Hole Quantity: 6
Disc Material: Organic/Carbon composite
Disc Type Sprung Solid: Sprung
Disc Type: Segmented face
Flywheel Counter Balance Weight: 0
Flywheel Crank Bolt Size: 7/16 in x 20 x 0.875
Flywheel Crank Flange Register: 2.160
Input Shaft Diameter: 1-1/8
Input Spline Quantity: 26
Installed Height: 2.960
Made In The USA: Assembled
Material: Billet Steel Flywheel / Nodular Iron Pressure Plate / Segmented Organic Friction
Mounting Hardware Included: Yes
Ring Gear O.D.: 13.205
Tooth Quantity: 130
Torque Capacity: 1300

Warranty Information
[{"BaseVehicleId":1608,"EngineBaseId":1090},{"BaseVehicleId":1609,"EngineBaseId":1090},{"BaseVehicleId":1610,"EngineBaseId":1090},{"BaseVehicleId":1847,"SubModelId":20,"EngineBaseId":1090},{"BaseVehicleId":1847,"SubModelId":125,"EngineBaseId":1090},{"BaseVehicleId":1847,"SubModelId":141,"EngineBaseId":1090},{"BaseVehicleId":1847,"SubModelId":282,"EngineBaseId":1090},{"BaseVehicleId":1847,"SubModelId":299,"EngineBaseId":1090},{"BaseVehicleId":1847,"SubModelId":301,"EngineBaseId":1090},{"BaseVehicleId":1848,"EngineBaseId":1090},{"BaseVehicleId":1859},{"BaseVehicleId":1860,"EngineBaseId":1090},{"BaseVehicleId":2379,"SubModelId":20,"EngineBaseId":1090},{"BaseVehicleId":2379,"SubModelId":125,"EngineBaseId":1090},{"BaseVehicleId":2380,"EngineBaseId":1090},{"BaseVehicleId":2381,"SubModelId":20,"EngineBaseId":1090},{"BaseVehicleId":2381,"SubModelId":125,"EngineBaseId":1090},{"BaseVehicleId":2381,"SubModelId":141,"EngineBaseId":1090},{"BaseVehicleId":2382,"SubModelId":20,"EngineBaseId":1090},{"BaseVehicleId":2382,"SubModelId":141,"EngineBaseId":1090},{"BaseVehicleId":2382,"SubModelId":272,"EngineBaseId":1090},{"BaseVehicleId":2383,"SubModelId":20,"EngineBaseId":1090},{"BaseVehicleId":2383,"SubModelId":141,"EngineBaseId":1090},{"BaseVehicleId":2383,"SubModelId":272,"EngineBaseId":1090},{"BaseVehicleId":2384,"SubModelId":20,"EngineBaseId":1090},{"BaseVehicleId":2384,"SubModelId":141,"EngineBaseId":1090},{"BaseVehicleId":2384,"SubModelId":272,"EngineBaseId":1090},{"BaseVehicleId":2472,"EngineBaseId":1090},{"BaseVehicleId":16636,"EngineBaseId":1090},{"BaseVehicleId":16637,"EngineBaseId":1090},{"BaseVehicleId":16637,"EngineBaseId":5404},{"BaseVehicleId":16638,"EngineBaseId":1090},{"BaseVehicleId":16638,"EngineBaseId":5353},{"BaseVehicleId":16638,"EngineBaseId":5404},{"BaseVehicleId":16639,"EngineBaseId":1090},{"BaseVehicleId":16639,"EngineBaseId":5353},{"BaseVehicleId":16639,"EngineBaseId":5404},{"BaseVehicleId":16640,"SubModelId":20,"EngineBaseId":1090},{"BaseVehicleId":16640,"SubModelId":20,"EngineBaseId":5353},{"BaseVehicleId":16640,"SubModelId":20,"EngineBaseId":5404},{"BaseVehicleId":16641,"SubModelId":20,"EngineBaseId":1090},{"BaseVehicleId":16641,"SubModelId":20,"EngineBaseId":5353},{"BaseVehicleId":16641,"SubModelId":20,"EngineBaseId":5404},{"BaseVehicleId":14530,"SubModelId":20,"EngineBaseId":1090},{"BaseVehicleId":14530,"SubModelId":20,"EngineBaseId":5353},{"BaseVehicleId":14530,"SubModelId":20,"EngineBaseId":5455},{"BaseVehicleId":14531,"SubModelId":20,"EngineBaseId":1090},{"BaseVehicleId":14531,"SubModelId":20,"EngineBaseId":5353},{"BaseVehicleId":14531,"SubModelId":20,"EngineBaseId":5455},{"BaseVehicleId":14532,"SubModelId":20,"EngineBaseId":1090},{"BaseVehicleId":14532,"SubModelId":20,"EngineBaseId":5353},{"BaseVehicleId":14532,"SubModelId":20,"EngineBaseId":5429},{"BaseVehicleId":14532,"SubModelId":20,"EngineBaseId":5455},{"BaseVehicleId":14533,"EngineBaseId":1090},{"BaseVehicleId":14533,"EngineBaseId":5429},{"BaseVehicleId":14534,"EngineBaseId":1090},{"BaseVehicleId":14534,"EngineBaseId":5429},{"BaseVehicleId":14535,"EngineBaseId":1090},{"BaseVehicleId":14535,"EngineBaseId":5404},{"BaseVehicleId":14536,"SubModelId":20,"EngineBaseId":1090},{"BaseVehicleId":14536,"SubModelId":20,"EngineBaseId":5404},{"BaseVehicleId":14536,"SubModelId":20,"EngineBaseId":5455},{"BaseVehicleId":14537,"SubModelId":20,"EngineBaseId":1090},{"BaseVehicleId":14537,"SubModelId":20,"EngineBaseId":5404},{"BaseVehicleId":14537,"SubModelId":20,"EngineBaseId":5455},{"BaseVehicleId":14538,"SubModelId":20,"EngineBaseId":1090},{"BaseVehicleId":14538,"SubModelId":20,"EngineBaseId":5404},{"BaseVehicleId":14538,"SubModelId":20,"EngineBaseId":5455},{"BaseVehicleId":14539,"SubModelId":20,"EngineBaseId":1090},{"BaseVehicleId":14539,"SubModelId":20,"EngineBaseId":5353},{"BaseVehicleId":14539,"SubModelId":20,"EngineBaseId":5455},{"BaseVehicleId":14540,"SubModelId":20,"EngineBaseId":1090},{"BaseVehicleId":14540,"SubModelId":20,"EngineBaseId":5353},{"BaseVehicleId":14540,"SubModelId":20,"EngineBaseId":5455},{"BaseVehicleId":14541,"SubModelId":20,"EngineBaseId":1090},{"BaseVehicleId":14541,"SubModelId":20,"EngineBaseId":5353},{"BaseVehicleId":14541,"SubModelId":20,"EngineBaseId":5429},{"BaseVehicleId":14541,"SubModelId":20,"EngineBaseId":5455},{"BaseVehicleId":14542,"SubModelId":20,"EngineBaseId":1090},{"BaseVehicleId":14542,"SubModelId":20,"EngineBaseId":5429},{"BaseVehicleId":14543,"SubModelId":20,"EngineBaseId":1090},{"BaseVehicleId":14543,"SubModelId":20,"EngineBaseId":5429},{"BaseVehicleId":14559,"EngineBaseId":5274},{"BaseVehicleId":14559,"EngineBaseId":5404},{"BaseVehicleId":14559,"EngineBaseId":5444},{"BaseVehicleId":14560,"SubModelId":20,"EngineBaseId":5404},{"BaseVehicleId":14561,"SubModelId":176,"EngineBaseId":1090},{"BaseVehicleId":14561,"SubModelId":176,"EngineBaseId":5404},{"BaseVehicleId":14561,"SubModelId":176,"EngineBaseId":5455},{"BaseVehicleId":14564,"SubModelId":20,"EngineBaseId":1090},{"BaseVehicleId":14564,"SubModelId":20,"EngineBaseId":5353},{"BaseVehicleId":14564,"SubModelId":20,"EngineBaseId":5455},{"BaseVehicleId":14565,"SubModelId":20,"EngineBaseId":1090},{"BaseVehicleId":14565,"SubModelId":20,"EngineBaseId":5353},{"BaseVehicleId":14565,"SubModelId":20,"EngineBaseId":5455},{"BaseVehicleId":14566,"SubModelId":20,"EngineBaseId":1090},{"BaseVehicleId":14566,"SubModelId":20,"EngineBaseId":5353},{"BaseVehicleId":14566,"SubModelId":20,"EngineBaseId":5429},{"BaseVehicleId":14566,"SubModelId":20,"EngineBaseId":5455},{"BaseVehicleId":14567,"SubModelId":20,"EngineBaseId":1090},{"BaseVehicleId":14567,"SubModelId":20,"EngineBaseId":5429},{"BaseVehicleId":14568,"SubModelId":20,"EngineBaseId":5429},{"BaseVehicleId":14638,"SubModelId":20,"EngineBaseId":5404},{"BaseVehicleId":14639,"SubModelId":20,"EngineBaseId":1090},{"BaseVehicleId":14639,"SubModelId":20,"EngineBaseId":5353},{"BaseVehicleId":14639,"SubModelId":20,"EngineBaseId":5404},{"BaseVehicleId":14640,"SubModelId":20,"EngineBaseId":1090},{"BaseVehicleId":14640,"SubModelId":20,"EngineBaseId":5353},{"BaseVehicleId":14640,"SubModelId":20,"EngineBaseId":5404},{"BaseVehicleId":14641,"SubModelId":20,"EngineBaseId":1090},{"BaseVehicleId":14641,"SubModelId":20,"EngineBaseId":5353},{"BaseVehicleId":14642,"SubModelId":20,"EngineBaseId":1090},{"BaseVehicleId":14642,"SubModelId":20,"EngineBaseId":5353},{"BaseVehicleId":14643,"SubModelId":20,"EngineBaseId":1090},{"BaseVehicleId":14643,"SubModelId":20,"EngineBaseId":5353},{"BaseVehicleId":14644,"SubModelId":20,"EngineBaseId":1090},{"BaseVehicleId":14645,"SubModelId":20,"EngineBaseId":1090},{"BaseVehicleId":16761,"EngineBaseId":1090},{"BaseVehicleId":16761,"EngineBaseId":5353},{"BaseVehicleId":16761,"EngineBaseId":5404},{"BaseVehicleId":16761,"EngineBaseId":5455},{"BaseVehicleId":16762,"EngineBaseId":1090},{"BaseVehicleId":16762,"EngineBaseId":5353},{"BaseVehicleId":16762,"EngineBaseId":5455},{"BaseVehicleId":16763,"EngineBaseId":1090},{"BaseVehicleId":16763,"EngineBaseId":5353},{"BaseVehicleId":16764,"EngineBaseId":1090},{"BaseVehicleId":16765,"EngineBaseId":1090},{"BaseVehicleId":16765,"EngineBaseId":5274},{"BaseVehicleId":16765,"EngineBaseId":5404},{"BaseVehicleId":16765,"EngineBaseId":5444},{"BaseVehicleId":16766,"EngineBaseId":1090},{"BaseVehicleId":16766,"EngineBaseId":5404},{"BaseVehicleId":16767,"EngineBaseId":1090},{"BaseVehicleId":16767,"EngineBaseId":5404},{"BaseVehicleId":16768,"SubModelId":20,"EngineBaseId":1090},{"BaseVehicleId":16768,"SubModelId":20,"EngineBaseId":5353},{"BaseVehicleId":16768,"SubModelId":20,"EngineBaseId":5404},{"BaseVehicleId":16769,"SubModelId":20,"EngineBaseId":1090},{"BaseVehicleId":16769,"SubModelId":20,"EngineBaseId":5353},{"BaseVehicleId":16769,"SubModelId":20,"EngineBaseId":5404},{"BaseVehicleId":16770,"SubModelId":20,"EngineBaseId":1090},{"BaseVehicleId":16771,"SubModelId":20,"EngineBaseId":1090},{"BaseVehicleId":16771,"SubModelId":20,"EngineBaseId":5353},{"BaseVehicleId":16771,"SubModelId":20,"EngineBaseId":5404},{"BaseVehicleId":16772,"SubModelId":20,"EngineBaseId":1090},{"BaseVehicleId":16772,"SubModelId":20,"EngineBaseId":5353},{"BaseVehicleId":16773,"SubModelId":20,"EngineBaseId":1090},{"BaseVehicleId":16773,"SubModelId":20,"EngineBaseId":5353},{"BaseVehicleId":16774,"SubModelId":20,"EngineBaseId":1090},{"BaseVehicleId":24385,"EngineBaseId":1090},{"BaseVehicleId":24385,"EngineBaseId":1443},{"BaseVehicleId":24385,"EngineBaseId":1444},{"BaseVehicleId":24385,"EngineBaseId":1455},{"BaseVehicleId":16641,"SubModelId":20,"EngineBaseId":5455},{"BaseVehicleId":16642,"EngineBaseId":1090},{"BaseVehicleId":16642,"EngineBaseId":5353},{"BaseVehicleId":16642,"EngineBaseId":5455},{"BaseVehicleId":16643,"EngineBaseId":1090},{"BaseVehicleId":16643,"EngineBaseId":5353},{"BaseVehicleId":16644,"EngineBaseId":1090},{"BaseVehicleId":16655,"EngineBaseId":1090},{"BaseVehicleId":16655,"EngineBaseId":5404},{"BaseVehicleId":16655,"EngineBaseId":5444},{"BaseVehicleId":16656,"EngineBaseId":1090},{"BaseVehicleId":16656,"EngineBaseId":5274},{"BaseVehicleId":16656,"EngineBaseId":5404},{"BaseVehicleId":16656,"EngineBaseId":5444},{"BaseVehicleId":16657,"EngineBaseId":1090},{"BaseVehicleId":16657,"EngineBaseId":5274},{"BaseVehicleId":16657,"EngineBaseId":5404},{"BaseVehicleId":16657,"EngineBaseId":5444},{"BaseVehicleId":16658,"EngineBaseId":1090},{"BaseVehicleId":16658,"EngineBaseId":5404},{"BaseVehicleId":16659,"EngineBaseId":1090},{"BaseVehicleId":16659,"EngineBaseId":5404},{"BaseVehicleId":16660,"SubModelId":20,"EngineBaseId":1090},{"BaseVehicleId":16660,"SubModelId":20,"EngineBaseId":5404},{"BaseVehicleId":16661,"SubModelId":20,"EngineBaseId":1090},{"BaseVehicleId":16661,"SubModelId":20,"EngineBaseId":5404},{"BaseVehicleId":16662,"SubModelId":20,"EngineBaseId":1090},{"BaseVehicleId":16662,"SubModelId":20,"EngineBaseId":5404},{"BaseVehicleId":16685,"SubModelId":20,"EngineBaseId":1090},{"BaseVehicleId":16685,"SubModelId":20,"EngineBaseId":5353},{"BaseVehicleId":16686,"SubModelId":20,"EngineBaseId":1090},{"BaseVehicleId":16686,"SubModelId":20,"EngineBaseId":5353},{"BaseVehicleId":16687,"SubModelId":20,"EngineBaseId":1090},{"BaseVehicleId":16687,"SubModelId":20,"EngineBaseId":5353},{"BaseVehicleId":16688,"SubModelId":20,"EngineBaseId":1090},{"BaseVehicleId":16688,"SubModelId":20,"EngineBaseId":5353},{"BaseVehicleId":16689,"SubModelId":20,"EngineBaseId":1090},{"BaseVehicleId":16701,"EngineBaseId":1090},{"BaseVehicleId":16701,"EngineBaseId":5404},{"BaseVehicleId":16701,"EngineBaseId":5444},{"BaseVehicleId":16702,"EngineBaseId":1090},{"BaseVehicleId":16702,"EngineBaseId":1443},{"BaseVehicleId":16702,"EngineBaseId":1444},{"BaseVehicleId":16702,"EngineBaseId":5274},{"BaseVehicleId":16702,"EngineBaseId":5404},{"BaseVehicleId":16702,"EngineBaseId":5444},{"BaseVehicleId":16703,"EngineBaseId":1090},{"BaseVehicleId":16703,"EngineBaseId":1443},{"BaseVehicleId":16703,"EngineBaseId":1444},{"BaseVehicleId":16703,"EngineBaseId":1455},{"BaseVehicleId":16703,"EngineBaseId":5274},{"BaseVehicleId":16703,"EngineBaseId":5404},{"BaseVehicleId":16703,"EngineBaseId":5444},{"BaseVehicleId":16704,"SubModelId":20,"EngineBaseId":1090},{"BaseVehicleId":16704,"SubModelId":20,"EngineBaseId":5404},{"BaseVehicleId":16705,"SubModelId":20,"EngineBaseId":1090},{"BaseVehicleId":16705,"SubModelId":20,"EngineBaseId":5404},{"BaseVehicleId":16734,"SubModelId":20,"EngineBaseId":1090},{"BaseVehicleId":16734,"SubModelId":20,"EngineBaseId":5455},{"BaseVehicleId":16735,"SubModelId":20,"EngineBaseId":1090},{"BaseVehicleId":16736,"SubModelId":20,"EngineBaseId":1090},{"BaseVehicleId":16739,"EngineBaseId":1090},{"BaseVehicleId":16739,"EngineBaseId":5404},{"BaseVehicleId":16743,"EngineBaseId":5455},{"BaseVehicleId":16745,"EngineBaseId":5404},{"BaseVehicleId":16745,"EngineBaseId":5455},{"BaseVehicleId":16758,"EngineBaseId":1090},{"BaseVehicleId":16758,"EngineBaseId":5353},{"BaseVehicleId":16758,"EngineBaseId":5404},{"BaseVehicleId":16759,"EngineBaseId":5404},{"BaseVehicleId":16760,"EngineBaseId":5404},{"BaseVehicleId":16760,"EngineBaseId":5455}]
