Zumbrota - RMT4500C-15

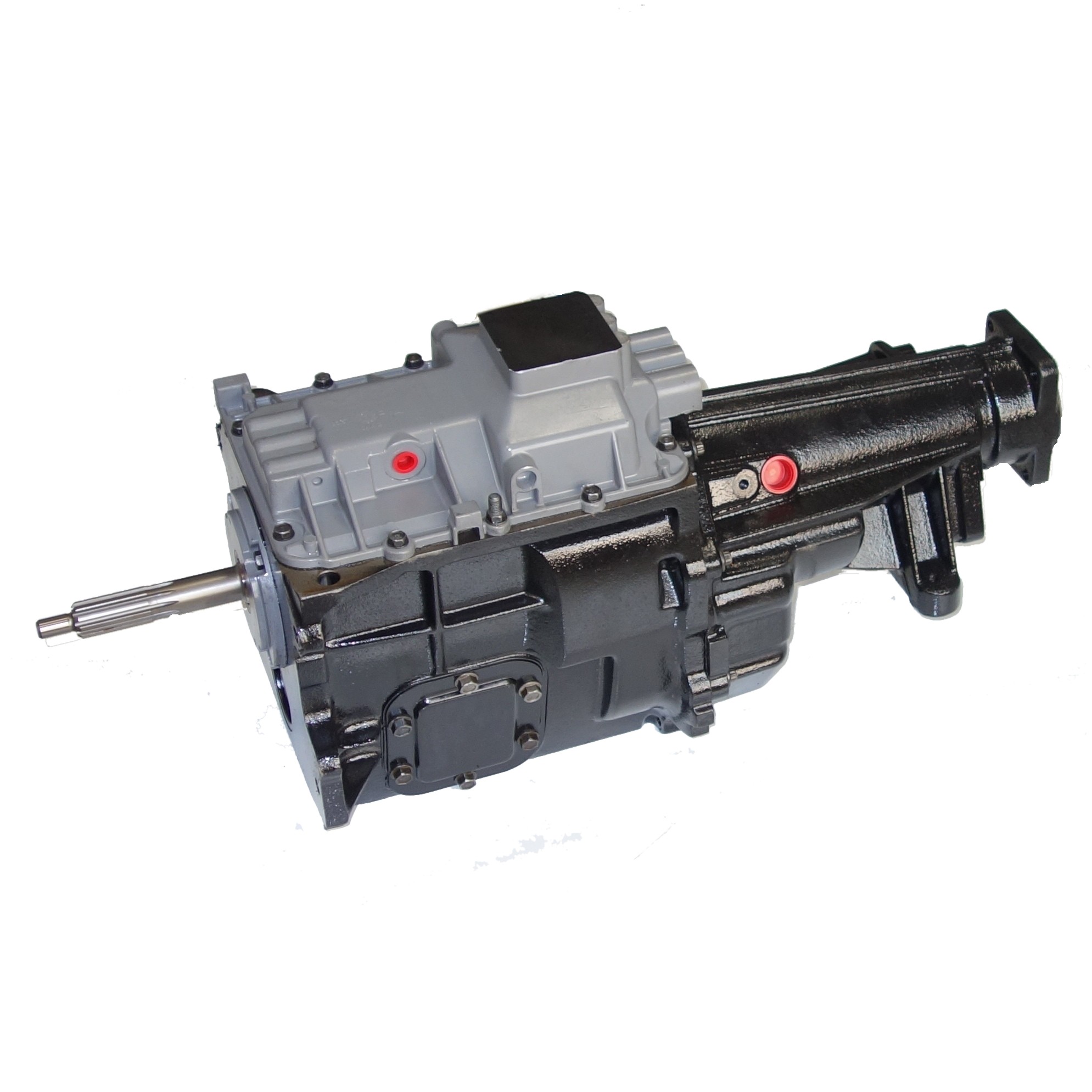

NV4500 Manual Transmission for GM 01-02 C3500HD, 8.1L, 2WD

NV4500 M/T 01-02 GM C3500HD 8.1L , 2WD , INT. SLAVE , CASE IRON CASE .

Zumbrota Drivetrain Manual Transmissions are rebuilt to the highest quality standards using a 3 step inspection process. Step 1 is a pre-inspection for case cracks, excessive wear, and OEM specific problems. Step 2 measures component parts to ensure OEM specifications are met. Step 3 ensures each unit is built to our exacting quality standards. Shaft straightness, gear wear & synchronizers are extensively tested to meet OEM specs. Seals are replaced and units are dyno-tested for operation, shiftability, and noise level. Unrivaled standards are set for unit precision and reliability at all critical touchpoints. Then an exclusive hydro-blast rinse & sandblasting procedure on internal and external parts, followed by proprietary shot-enticed deep cleaning, sets the standard for manual transmission remanufacturing.

• Cast Iron Case
• Detachable Bell Housing
• HOLLANDER No. 4-3845
• Internal Slave Cylinder
• Square Four Bolt Shift Tower
• 1 Spline 1.25 Inch Diameter Input Shaft
• Has Emergency Brake Mounted On The Tail Housing [Not Included]
• Uses A Nut To Hold The Rear Output Yoke On And Not A Bolt
