Zone Offroad - ZONJ33N

Designed as a complete system, this 3 Inch lift includes everything necessary to properly lift your new Wrangler JL while allowing clearance for 35-37 Inch tires. The extra ride height comes from a set of replacement JL-specific coil springs at each corner.

These springs are engineered for additional ride height, improved suspension articulation, and to provide an custom-tailored Inchspring rate Inch to compensate for the mass of aftermarket wheels/tires and extra gear / off-roading equipment.

In additional to replacement coil springs and shocks, this kit includes front lower control arm cam washers to correct caster alignment. Extended-length, heavy-duty front and rear sway bar links are supplied to correct sway bar geometry, while bump stop extensions limit suspension up-travel.

Wrapping up this kit is a heavy-duty rear track bar bracket, used to re-center the rear axle and all the necessary hardware required to complete the full install.
Quick Specs:

• Front Lift Height 3 Inch
• Rear Lift Height 3 Inch
• Material Steel
• Front Lift Method Coil Springs
• Rear Lift Method Coil Springs
• Lift Type Lift Kit
• Wheel Size 17 x 9
• Back Spacing 4.5 Inch
• Max Tire Size 35 x 12.5
• Finish Powdercoat
• Cutting Required No
• Accommodates Factory Wheels No
• Welding Required No

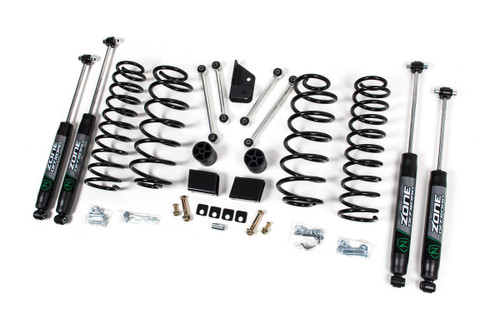

In The Box:

• Coil Springs - Rear
• Coil Springs - Front
• Bump Stop Extensions
• Sway Bar Links - Front and Rear

Features:

• F/R coil springs to set ride height, maintain ride and improve articulation
• Nitro-series gas shocks for smooth on/off-road performance
• F/R extended sway bar links to correct sway bar operating angle
• F/R bump stop extensions to properly limit suspension up travel
• Front LCA cam washers to correct front end caster
• Rear track bar bracket to recenter rear axle
• Allows clearance for 35-37 Inch tires

Kit Components:

• ZON7780 18-24 Nitro- 26.20 x 15.65 x 2-3/8 EB1/EB1 2 711745595835
• ZON7785 18-24 Nitro- 29.80 x 17.60 x 2-3/8 EB1/EB1 2 711745595873
• ZONJ1321 18-24 Jeep JL 2Dr 3 Inch Box Kit 1 711745594456
