Zone Offroad - ZOND7N

Create the truck you've always wanted with this 5 Inch Lift Kit that gives you clearance for massive tires. This kit has everything you need to raise and level your 2009 Dodge 2500 / 3500 Truck. Are you ready to start turning heads?
Quick Specs:

• Front Lift Height 5 Inch
• Rear Lift Height -
• Front Lift Method Coil Springs
• Rear Lift Method Cast Blocks
• Lift Type Lift Kit
• Wheel Size 17 x 9
• Back Spacing 5 Inch
• Max Tire Size 35 x 12.5
• Wheel Size 2 18 x 9
• Back Spacing 2 5 Inch
• Max Tire Size 2 35 x 12.5
• Wheel Size 3 20 x 9
• Back Spacing 3.5 Inch
• Max Tire Size 3 35 x 12.5
• Finish Powdercoat
• Cutting Required No
• Accommodates Factory Wheels See Notes
• Welding Required No

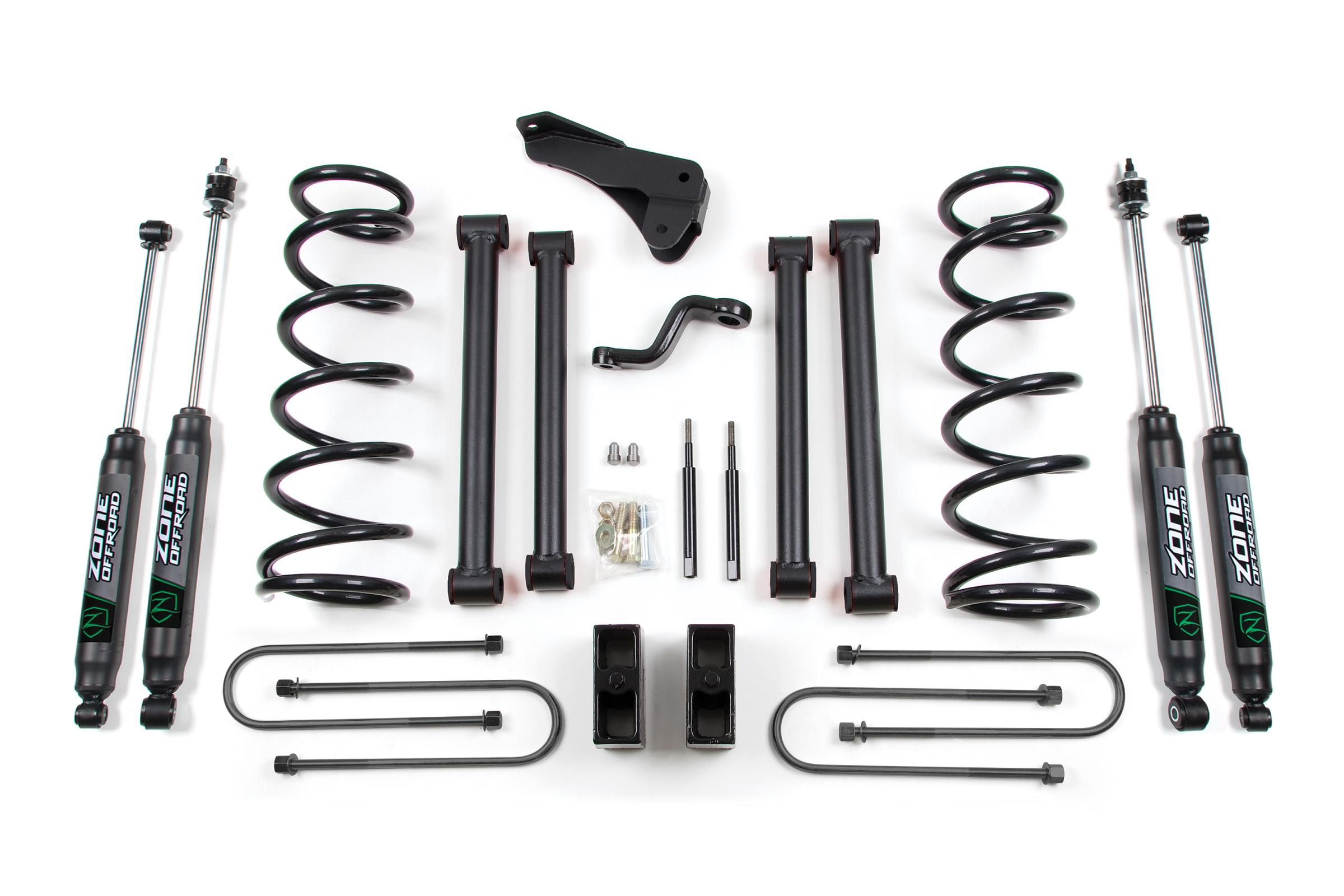

In The Box:

• All Necessary Mounting / Installation Hardware
• Brake Line Brackets
• Coil Springs
• Control Arms
• Dropped Pitman Arm
• Rear Lift Block & U-Bolt Kit
• Sway Bar Links
• Track Bar Relocation Bracket

Features:

• 100 percent bolt-on design for easy installation.
• Bump stop extensions properly limit up-travel, protecting your vehicle.
• Heavy-duty upper and lower control arms improve strength and articulation while correcting caster.
• Heavy-duty front track bar bracket correctly positions front axle under vehicle.
• Steering components included to ensure smooth post-installation operation of steering system and factory-consistent vehicle handling characteristics.

Kit Components:

• ZON7750 Nitro- 27.40 x 16.20 x 2-3/8 S50/EB2 2 711745595675
• ZON7761 Nitro- 33.00 x 19.25 x 2-3/8 EB1/EB1 2 711745595774
• ZOND1409 Rear Box Kit 1 711745598065
• ZOND1503 09 Dodge 2500/3500 5.0 Inch Box Kit 1 711745598140
• ZOND3501 Dodge Coil Kit 1 711745598591
