Wiseco 70087X125 - RED Series - Chevrolet, Big Block, 4.125 in. Bore, Piston
Wiseco 70087X125 - RED Series - Chevrolet, Big Block, 4.125 in. Bore, Piston
Wiseco 70087X125 - RED Series - Chevrolet, Big Block, 4.125 in. Bore, Piston
Wiseco 70087X125 - RED Series - Chevrolet, Big Block, 4.125 in. Bore, Piston

Wiseco 70087X125 - RED Series - Chevrolet, Big Block, 4.125 in. Bore, Piston

Write a Review
$147.77
$137.99
(You save $9.78 )
SKU: BJKF-70087X125
UPC: 193564522177
Stock: 0
Vendor: Premier - CSR
SpecialOrder: True
CarbRejected: False
CouponIsOn: False
StockEta: N/A
ProfitMargin: 8.600
CostOfItem: 113.11
ItemPopularity: 0
MapPrice: 132.99
RetailPrice: 147.77
EbayAllowed: False
WarehouseStock: 0
ShippingGroups: ["Flatrate_Premier"]
EbayPrice: 152.99
ShipperHq: {"shipping-groups":["Premier","FreeShipping","Flatrate_Premier"],"shipping-origins":[],"shipping-dimensional-rules":[]}
IsReturnable: True
EbayPriority: 0

Out of stock

  • screenshot-2024-06-06-013938.png
Wiseco 70087X125 - RED Series - Chevrolet, Big Block, 4.125 in. Bore, Piston

Wiseco 70087X125 - RED Series - Chevrolet, Big Block, 4.125 in. Bore, Piston

$147.77
$137.99
(You save $9.78 )
Description

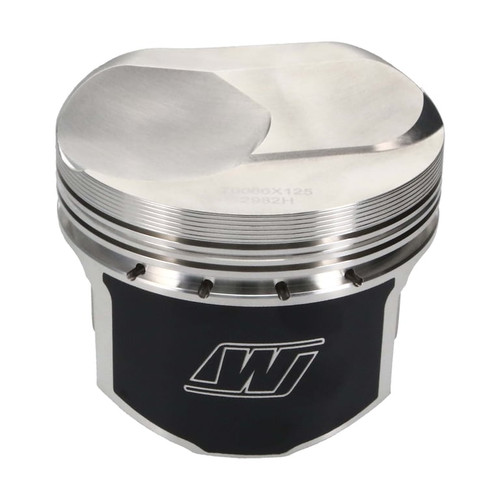

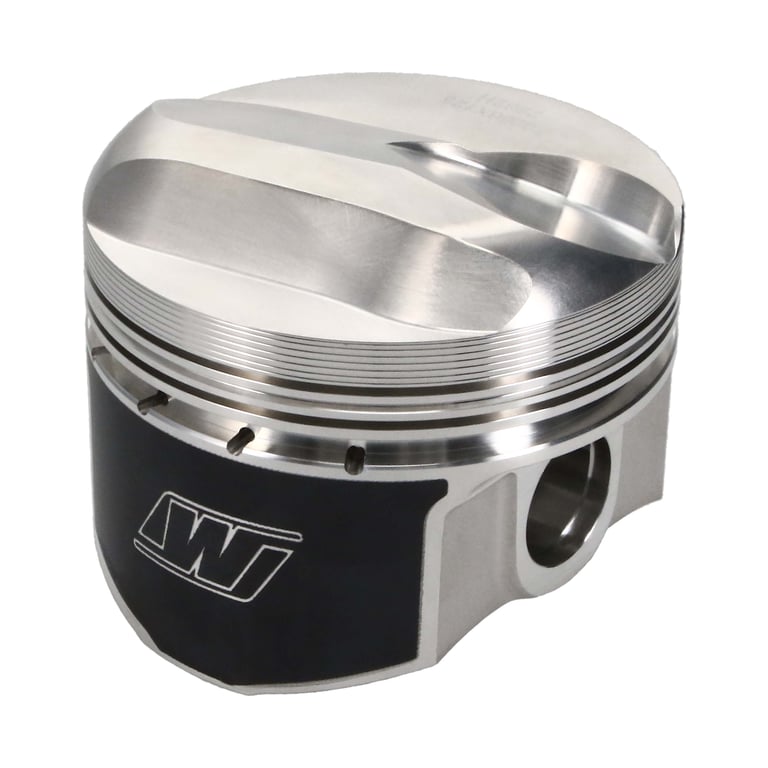

Wiseco - 70087X125

Wiseco Chevrolet Big Block Piston, 4.125 in. Bore, 1.765 in. Compression Height, 0.990 in. Pin Diameter, RED Series, Set of 1.

Appropriately dubbed the RED? series, these forged pistons utilize Race Engineered Design? to offer the strength and durability performance engines need with precision-machined features to provide a competitive edge. RED? series piston kits are available for range of popular, domestic V8 platforms, the cornerstone of racing and performance from drag racing to circle track.

    • Engineered, forged, and machined in the USA from 2618 aluminum for tensile strength needed in performance racing and power adder applications
    • Dedicated forgings allow for optimized, engine-specific strutted design to maximize strength-to-weight characteristics
    • ArmorGlide? skirt coating reduces operating friction and noise while also reducing skirt and cylinder wear
    • Horizontal slot oiling in pin bores maintain optimal wrist pin and small-end lubrication, critical for long service life
    • Accumulator groove helps maintain consistent ring seal and power
    • Each part number includes premium rings ? no need for additional sourcing

Second Ring Material: Iron
Skirt Coating: Yes
Stroke: 3.760
Third Ring Material: Carbon Steel
Title - Web: RED Series Chevy Big Block Piston - 4.125 in. Bore - 1.765 in. CH, 42.00 CC
Top Compression Ring Thickness: 0.0640
Top Ring Material: Ductile Iron
Wrist Pin Included: Yes
Wrist Pin Material: 5115
Wrist Pin Outer Diameter: 0.990
Wrist Pin Part Number: S460
Wrist Pin Quantity: 1
Wrist Pin Retainer Included: Yes
Wrist Pin Retainer Material: High Carbon Spring Steel
Wrist Pin Retainer Part Number: CS25
Wrist Pin Retainer Quantity: 2
Wrist Pin Retainer Style: Spiral Lock
Wrist Pin Retainer Thickness: 0.085
Wrist Pin Style: Floating
Bore Diameter: 4.125
Category Hierarchy: Auto>Pistons>Individual Pistons>Domestic>RED Series
Compression Height: 1.765
Engine - Web: Big Block
Engine Type: ICE
Engine: Big Block
Forging Type: Strutted
Industry: Automotive
Make - Web: Chevy
Make: Chevrolet
Oil Ring Tension: Low
Oil Ring Thickness: 0.188
Out of Stock Message: Estimated Shipped Date 3-4 Weeks
Piston Material: 2618
Piston Quantity: 1
Piston Volume: 42.00
Product Market: Domestic
Product Series: RED Series
Product Type: Engine Piston
Ring Quantity: 1
Ring Set Included: Yes
Ring Set Part Number: J10001-4125-5
Rod Length: 6.135
Second Compression Ring Thickness: 0.0640
