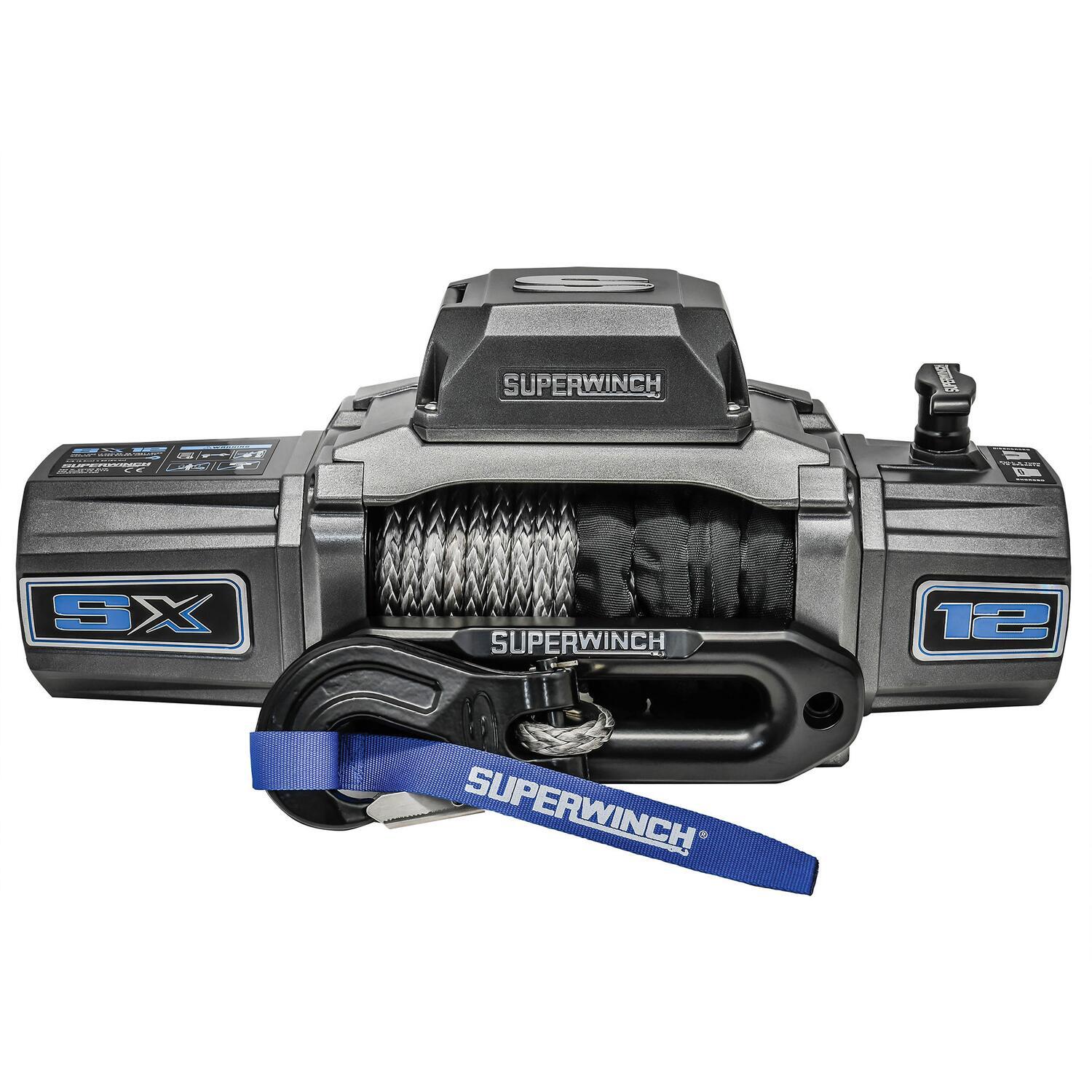

Superwinch 1712201 - 12000 LBS 12V DC 3/8in x 80ft Synthetic Rope SX 12000SR Winch - Graphite

Superwinch 1712201 - 12000 LBS 12V DC 3/8in x 80ft Synthetic Rope SX 12000SR Winch - Graphite

$1,330.67
$997.99
(You save $332.68 )

Superwinch - 1712201

Winch - SX-Series - 12000 lb Capacity - Roller Fairlead - 12 ft Remote - 3/8 in x 80 ft Synthetic Rope - 12V - Kit

SX 12000SR Winch; 12000 lbs., 12 VDC, 3/8 in x 80 ft. Synthetic Rope; Handheld Remote Control; 6.0 HP; Automatic Brake; 3-Stage Planetary; Aluminum Hawse Fairlead;

SX Series winches exceed the most demanding standards of today's modern vehicles, while delivering an affordable and stylish design which incorporates many class leading features not found in other high-performance winches. Produces 12,000 lbs. of raw pulling power, the new SX series has an IP68 rating for dustproof and waterproof operation while the sleek modern look is finished with a durable metallic graphite powder-coat that is built to last. Combined with innovative features such as a patented drum light, relocatable control box and a lighted remote, and your choice of wire or synthetic rope this winch has it all.

  • 12,000 lbs. capacity
  • 6.0 Hp Sealed Motor
  • Relocatable die-cast aluminum control box
  • 12 ft. wired remote with integrated lithium ION rechargeable LED flashlight/wireless remote on synthetic

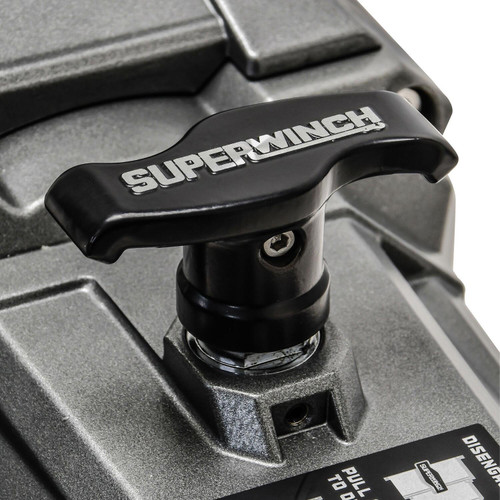

  • Ergonomic pull-and turn clutch handle
  • 3-stage planetary gearing with 231:1 ratio
  • Patented drum light
  • Drum diameter measures 2.5 in.
  • Heavy duty clevis winch hook
  • Aluminum hawse fairlead (synthetic rope)
  • 100% full load holding automatic mechanical brake
  • IP68-rated waterproof and dustproof
  • Durable metallic graphite powder coat finish
  • Clockable gearbox

Brake System: 100% Full-load holding automatic mechanical brake
Material: Steel
Winch Hook: Heavy-Duty, Clevis Pinned Latched
Warranty: Limited Lifetime Mechanical/7 Year Limited Electrical
Task Lighting: Patented drum light
Rope Material: Synthetic
Rope Length: 3/8 in x 80 ft (9.5mm x 24.3m)
Remote Type: Wire and Wireless
Remote Control: Wireless hand-held remote & 12 ft handheld wired remote included (wired remote features flashlight with built-in lithium ION battery. Recharges while plugged into winch.)
Rated Single Line Pull (Lbs): 12000
Mounting Bolt Pattern: 10in x 4.5in (254mm x 114.3mm)
Motor: 6.0 HP, 12V DC
Line Speed: 68 Amps Motor Draw/23.4 FPM (7.13 MPM)
Can Ship By Ground Delivery: Yes
IP Rating: IP68 Waterproof and Dustproof
Gear System: 3-stage planetary
Gear Ratio: 231:1
Finish: Powder Coated
Fairlead: Aluminum hawse
EN Compliant: No
Drum: Durable fully welded steel drum
Dimensions: 22.04in L x 6.3in W x 9.67in H (559.8mm L x 160.02mm W x 245.62mm H)
Control Box: Relocatable Die-Cast Aluminum
Color: Graphite
Clutch: Pull and turn clutch handle
Winch Model: SX Series
