Superwinch - 1135270

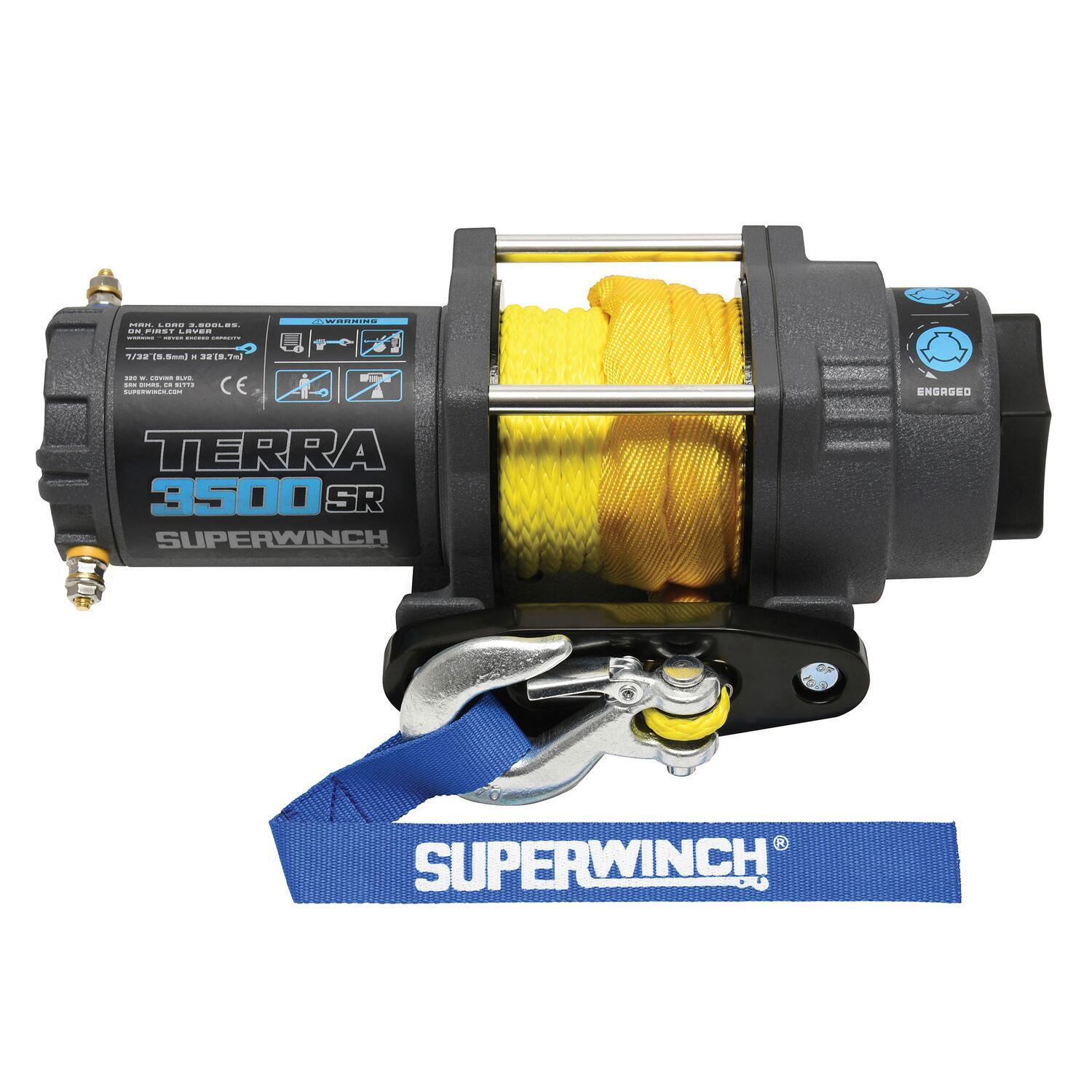

Winch - Terra - 3500 lb Capacity - Hawse Fairlead - 10 ft Remote - 3/16 in x 32 ft Synthetic Rope - 12V - Kit

Terra 3500SR Winch; 3500 lbs; 12 Vdc; 7/32 In X 32 ft Synthetic Rope; Solenoid w/Circuit Breaker; Remote And Switch; 1.6 hp; 3-Stage Planetary; 198:1 Gear Ratio; Hawse Fairlead;

The new generation Terra Series winches from Superwinch are engineered specifically to meet the rugged demands of ATV and UTV enthusiasts. Available 3500 lbs. capacities with a choice of wire or synthetic rope, these powerful winches have been redesigned and improved inside and out. Each winch is loaded with a powerful motor, strong all steel gearing and a steel drum for superior performance and durability. All Terra Series winches are equipped with a remotely mountable control box that houses a sealed solenoid and circuit breaker to ensure reliable operation. Free spool function is simple to manage with an easy to engage ergonomic control knob. Each winch includes a 10' wired remote control and a handlebar mounted rocker switch for dependable control and maximum versatility. The Terra Series winches have an IP67 rating for water and dust protection so they are always ready for action.

• 3,500 lbs capacity
• 1.6 HP permanent magnetic motor
• Clockable motor
• 3-Stage planetary gearing with 198:1 ratio
• Heavy-duty steel drum
• All steel gear set
• Sealed solenoid with circuit breaker
• Easy to engage ergonomic freespool control knob
• IP67 protection from water and dust
• 7/32 in. - 32 ft. synthetic rope
• Heavy-duty, clevis pinned, latched hook
• Aluminum hawse fairlead (synthetic rope)
• Narrow drum allows easier mounting in tight spaces
• 10’ handheld remote with handlebar rocker switch
• Universal mounting plate
• Mounting bolt pattern 3” x 4.87”
• Gray wrinkle powder coat finish
