Sold out
Spicer 10-4-123
Spicer 10-4-123

Spicer 10-4-123

Write a Review
$43.40
$39.45
(You save $3.95 )
SKU: FSGR-10-4-123
UPC: 023913228934
Stock: 0
Vendor: Premier - CSR
SpecialOrder: True
CarbRejected: False
CouponIsOn: False
StockEta: N/A
ProfitMargin: 10.100
CostOfItem: 21.49
ItemPopularity: 0
MapPrice: 0.00
RetailPrice: 39.45
IsReturnable: True
WarehouseStock: 0
ShipperHq: {"shipping-groups":["Premier","FreeShipping"],"shipping-origins":[],"shipping-dimensional-rules":[]}

Out of stock

  • screenshot-2024-06-06-013938.png
Spicer 10-4-123

Spicer 10-4-123

$43.40
$39.45
(You save $3.95 )
Description

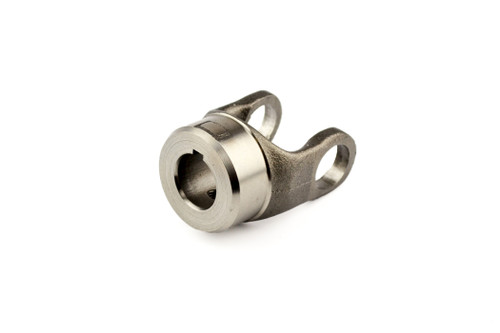

Spicer - 10-4-123

  • Genuine OE quality. Tested and proven.
  • Built to meet OE standards set by Dana
  • Tested and validated to rigorous OE specifications
  • Latest production upgrades ensure genuine Spicer parts are as good or better than the OE parts they replace

Joint Angle #1: 60
Set Screw Hole Diameter (In): 0.375
Hole Diameter - Max: 1.2505
Hole Diameter - Min: 1.2495
Keyway Width - Max: 0.3155
Keyway Width - Min: 0.3135
Series: 1000
Material: Steel
Type: Straight Round Hole
Hole Diameter (In) P: 1.250
Hub Diameter R: 2.000
Involute Spline: N
Length Thru Hole Q: 1.030
Yoke Bearing Dimension (In) D: 0.938
Yoke Style: ISR
Keyway Location W: 3
Sae Keyway Width (In) X: 0.312
Set Screw Location W: 9
Inside Yoke Dimension (In) K: 1.500
C/L To End Hub S: 2.500
