Scott Drake S1MS-9430-CR - Tri-Y Exhaust Headers (260,289,302)

Scott Drake S1MS-9430-CR - Tri-Y Exhaust Headers (260,289,302)

$393.95
$385.99
(You save $7.96 )
Description

Scott Drake - S1MS-9430-CR

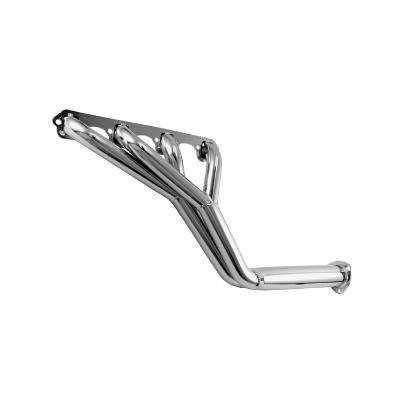

Scott Drake Tri-Y Exhaust Headers (260,289,302)

Tri-Y Headers; 1.5 in. Tube; 1.75 in. Secondaries; 2.5 in. Collectors; Chrome;

These headers have been proven time and time again for proper fit and durability. They feature extra thick flanges, miter cut 16 gauge tubes and are precision Mig welded to ensure a proper fit and eliminate exhaust leaks. Comes boxed complete with premium gaskets, all necessary mounting hardware and reducer cones. Cars equipped with power steering will require an adapter to lower the power cylinder. Available in black non Hi-Temp paint, unpainted and industrial nickel plated.Note: Cars with the larger Bell Housing to accomidate 164 Tooth Flywheels you may have to slightly dimple headers or remove a minimal amount of material from bell housing for clearance. The larger Bellhousing was original equipment on 302 cars but many cars have swapped out over the years. Dimensions: 1.5" Pimaries. 1.75" Secondaries. 2.5" Collectors.

  • Proven Time And Time Again For Proper Durability
  • Extra Thick Flanges And Miter Cut 16 Gauge Tubes
  • Precision Mig Welded To Ensure Proper Installation And Eliminate Exhaust Leaks
  • Comes Boxed Complete w/Premium Gaskets And All Necessary Mounting Hardware And Reducer Cones
  • Cars Equipped w/Power Steering Will Require Adapter To Lower Power Cylinder
  • Available In Black Non Hi-Temp Paint And Unpainted And Industrial Nickel Plated
  • Cars w/Larger Bell Housing May Have To Slightly Dimple Headers Or Remove Minimal Amount Of Material From Bell Housing
  • Dimensions 1.5 in. Primaries x 1.75 in. Secondaries x 2.5 in. Collectors

Automotive Item Grade: High Performance Part
Bolt size: 3/8-16 x 3/4
Bolts Included: Yes
Brand: Scott Drake
Catalytic Converter Included: No
Category: Exhaust
Collector Diameter: 2.50 inch
Collector Port Diameter: 2 1/2
Cross Over Pipe Included: No
Cylinder Head Port Shape: Rectangle
Emission Code: 3
Engine: Ford Small Block
Engine Mounts Included: No
Flange Thickness: .250"
Flange Type: 3-Bolt
Gasket Or Seal Included: Yes
Header Style: Tri-Y
Material: Steel
Mounting Hardware Included: Yes
part type: Exhaust Header
Pipe Shape: Y Pipe
Primary Tube Diameter: 1 1/2
Product Type: Exhaust Header
Quantity: 2
Reducer Included: Yes
Reducer Outlet Diameter: 2
Sub Category: Exhaust Manifolds
Surface Material: Nickel
Transmission Mounts Included: No
Tuned: No
Type: Full Length
Warning: California Proposition 65
