RockJock - RJ-365500-102

RockJock's narrow forged Johnny Joints for fabricators and suspension system builders offer up to 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball.

The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring.

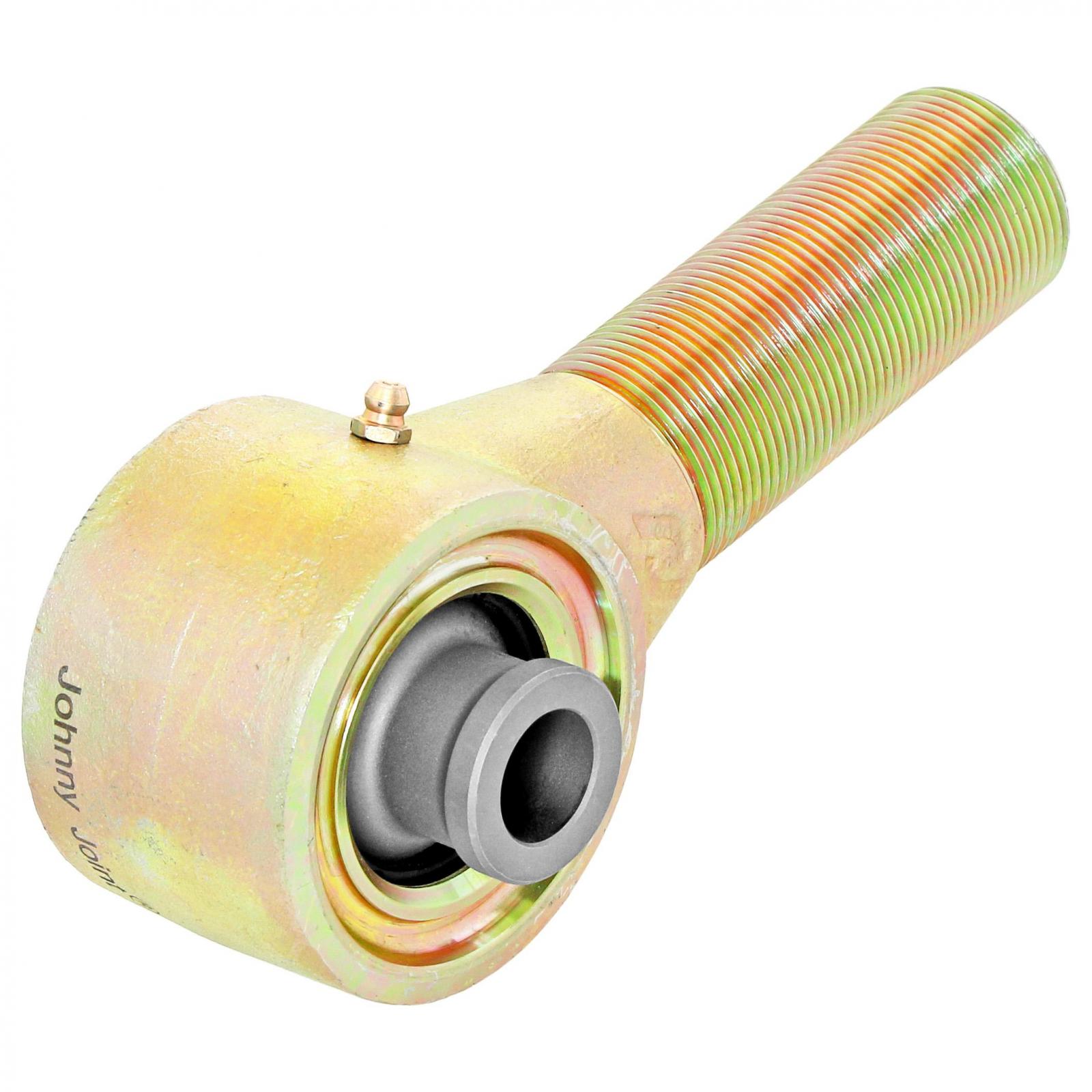

This specific joint features a narrow 3 inch diameter joint body, fitted with a zerk fitting for greasing, 3.67 inch of 1 1/2 inch-12 right hand threads on the shank, and a 3.250 inch mounting width ball with a .750 thru bolt hole. Finished in gold zinc plating.

Kit Fits:

• Universal Application

Kit Includes:

• (1) Forged Johnny Joint Assembly

Rod End Specs:

• Capable of 35 degrees of overall articulation travel
• Forged 4140 chromoly construction
• 3 in. o.d. narrow body
• Measures 6 in. from CL of the joint to the end of the tip of the threads
• 3.670 in. of 1 1/2 in.-12 RH threads
• Features our CE-91112 center pivot ball (3.250 in. x .750 in.)

Notes:

• This joint is capable of 35 degrees of overall articulation travel
• Johnny Joints require non-synthetic, hi-moly lube grease such as our CE-9013G
• Applicable Johnny Joint Tool for these Control Arms: CE-9111T

Parts List:

• Johnny Joint Forging: RJ-365500-2
• Center Pivot Ball: CE-91112
• Bushing (one piece): CE-91113S
• Machined Side Washer: RJ-533001-1
• Snap Ring: CE-91115
• Zerk Fitting: CE-1103K21
