RockJock CE-9112N75-12 - Narrow Forged Johnny Joint 2 Inch 2 Inch X 0.500 Inch Ball 3/4 Inch-16 Right Hand Threaded Shank Externally Greased Each 4x4
RockJock CE-9112N75-12 - Narrow Forged Johnny Joint 2 Inch 2 Inch X 0.500 Inch Ball 3/4 Inch-16 Right Hand Threaded Shank Externally Greased Each 4x4

RockJock CE-9112N75-12 - Narrow Forged Johnny Joint 2 Inch 2 Inch X 0.500 Inch Ball 3/4 Inch-16 Right Hand Threaded Shank Externally Greased Each 4x4

Write a Review
$83.59
$75.99
(You save $7.60 )
SKU: HWSH-CE-9112N75-12
UPC: 810038151076
Stock: 3
Vendor: Turn14 - CSR
SpecialOrder: True
CarbRejected: False
CouponIsOn: False
StockEta: N/A
ProfitMargin: 9.100
CostOfItem: 56.10
ItemPopularity: 0
MapPrice: 66.00
RetailPrice: 66.00
EbayAllowed: False
WarehouseStock: 0
ShippingGroups: ["Flatrate_Turn14"]
EbayPrice: 66
ShipperHq: {"shipping-groups":["Turn14","FreeShipping","Flatrate_Turn14"],"shipping-origins":[],"shipping-dimensional-rules":[]}
IsReturnable: True
EbayPriority: 0
Adding to cart… The item has been added
  • screenshot-2024-06-06-013938.png
RockJock CE-9112N75-12 - Narrow Forged Johnny Joint 2 Inch 2 Inch X 0.500 Inch Ball 3/4 Inch-16 Right Hand Threaded Shank Externally Greased Each 4x4

RockJock CE-9112N75-12 - Narrow Forged Johnny Joint 2 Inch 2 Inch X 0.500 Inch Ball 3/4 Inch-16 Right Hand Threaded Shank Externally Greased Each 4x4

$83.59
$75.99
(You save $7.60 )
Description

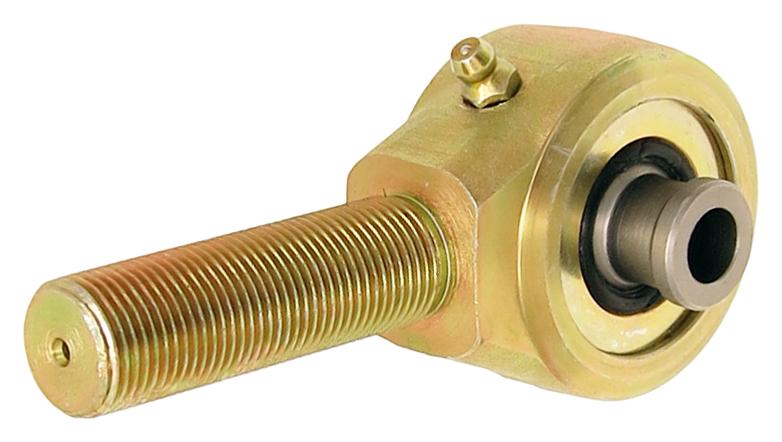

RockJock - CE-9112N75-12

RockJock's narrow forged Johnny Joints for fabricators and suspension system builders offer 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint!

Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushing that encases the inner ball.

The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring.

This specific joint is a 2 Inch diameter, fitted with a zerk fitting for greasing, 2 1/4 Inch of 3/4 Inch-16 right hand threads on the shank, and a 2 Inch mounting width ball with a .500 Inch thru bolt hole. Finished in gold zinc plating.

Details:

  • Narrow Forged Johnny Joint
  • 2 Inch
  • 2 Inch X 0.500 Inch Ball
  • 3/4 Inch-16 Right Hand Threaded Shank
  • Externally Greased
  • Each
