Quick Time - RM-6080

Bellhousing - Block Plate - Hardware Included - Steel - Black Paint - Ford TKO 500-600 / TR3550 / T5 - Ford Modular - Kit

QuickTime Bellhousing; Ford Modular 4.6/5.0/5.4/5.8/6.2 Engines To TKO/TR3550/T5 Trans.; 11 in. Clutch Disc; Hydraulic; 164 Tooth; 6.925 in. Height; 4.85/4.91/5.12 Trans. Bore;

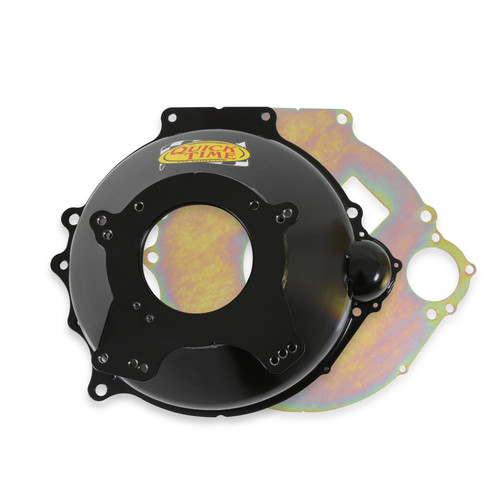

This QuickTime bellhousing is designed for street, strip, and circle track applications. Built from high-quality grade steel, the cone is spun not stamped or rolled making this bellhousing dimensionally stable and accurate. This bellhousing will fit 4.6/5.0/5.4/5.8/6.2L Ford Modular Engines to Ford TKX, TKO, T5 Mustang, and TR3550. The 6.925-inch deep bellhousing will clear 164 tooth flywheel and an 11-inch clutch, a trans bore of 4.685/4.910 in., and weighs in at only 20 pounds. The RM-6080 comes with a fork bracket, block plate, and Grade 8 hardware. Other applications are available which are SFI approved (see RM-6081 and RM-6082).

• Patent On 16 Points Of Bellhousing Design And Process
• Fits 4.6/5.0/5.4/5.8/6.2L Modular Ford Engines
• Bolt To Ford TKO T5 Or TR 3550 Transmission
• Fits Up To A 164 Tooth Flywheel And 11 in. Clutch
• Transbore 4.685/4.910
• Weight 20 lbs.

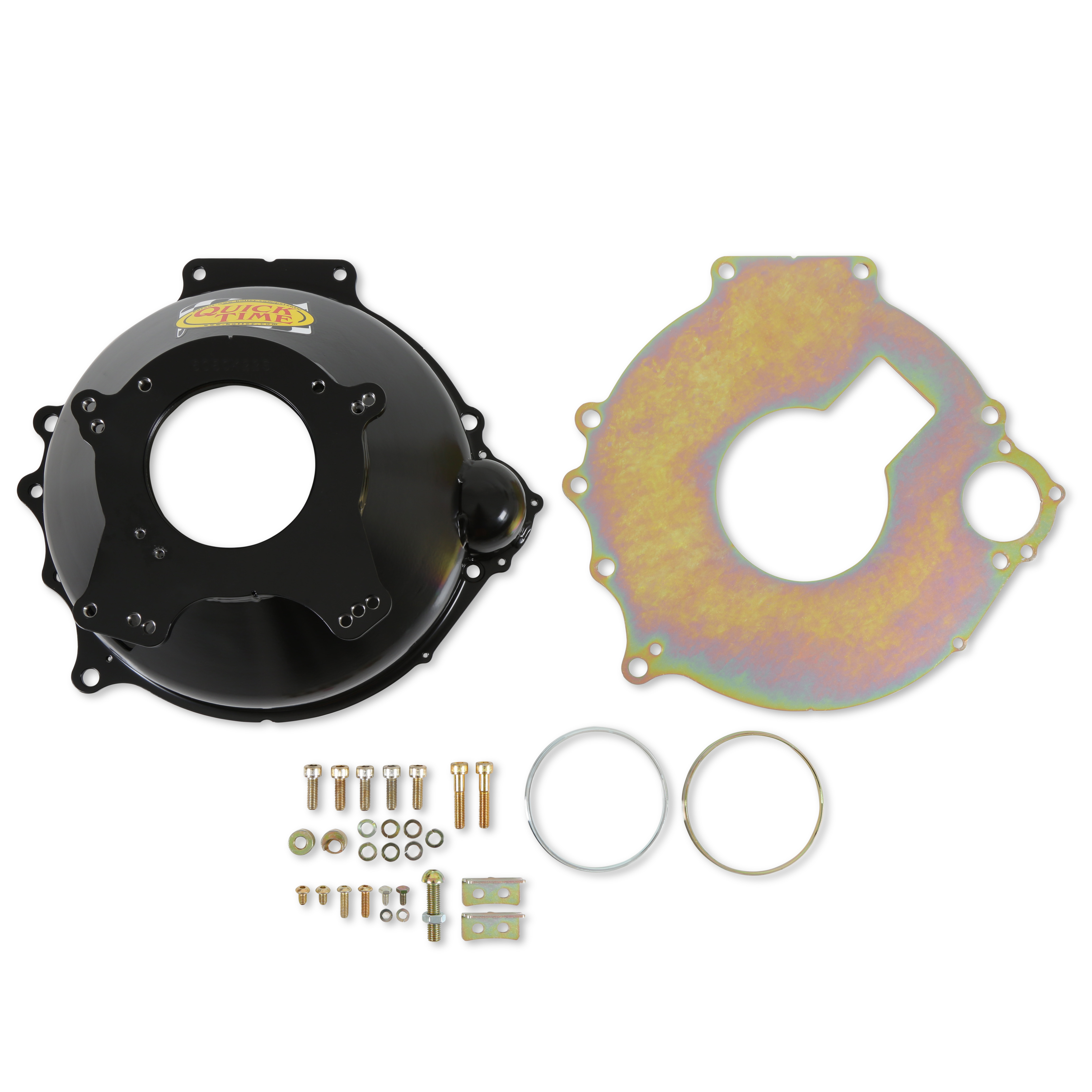

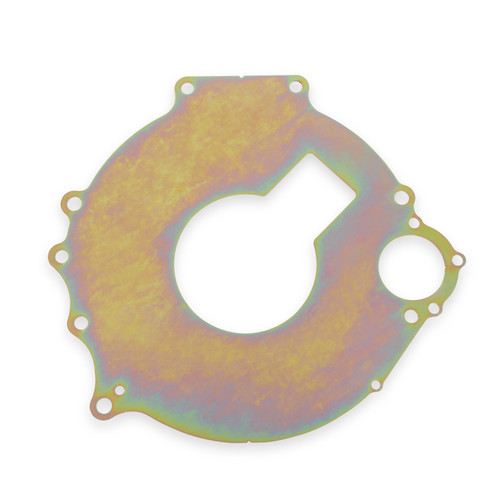

• Incl. Fork Bracket/Block Plate/Grade 8 Hardware
