Quick Time - RM-6065

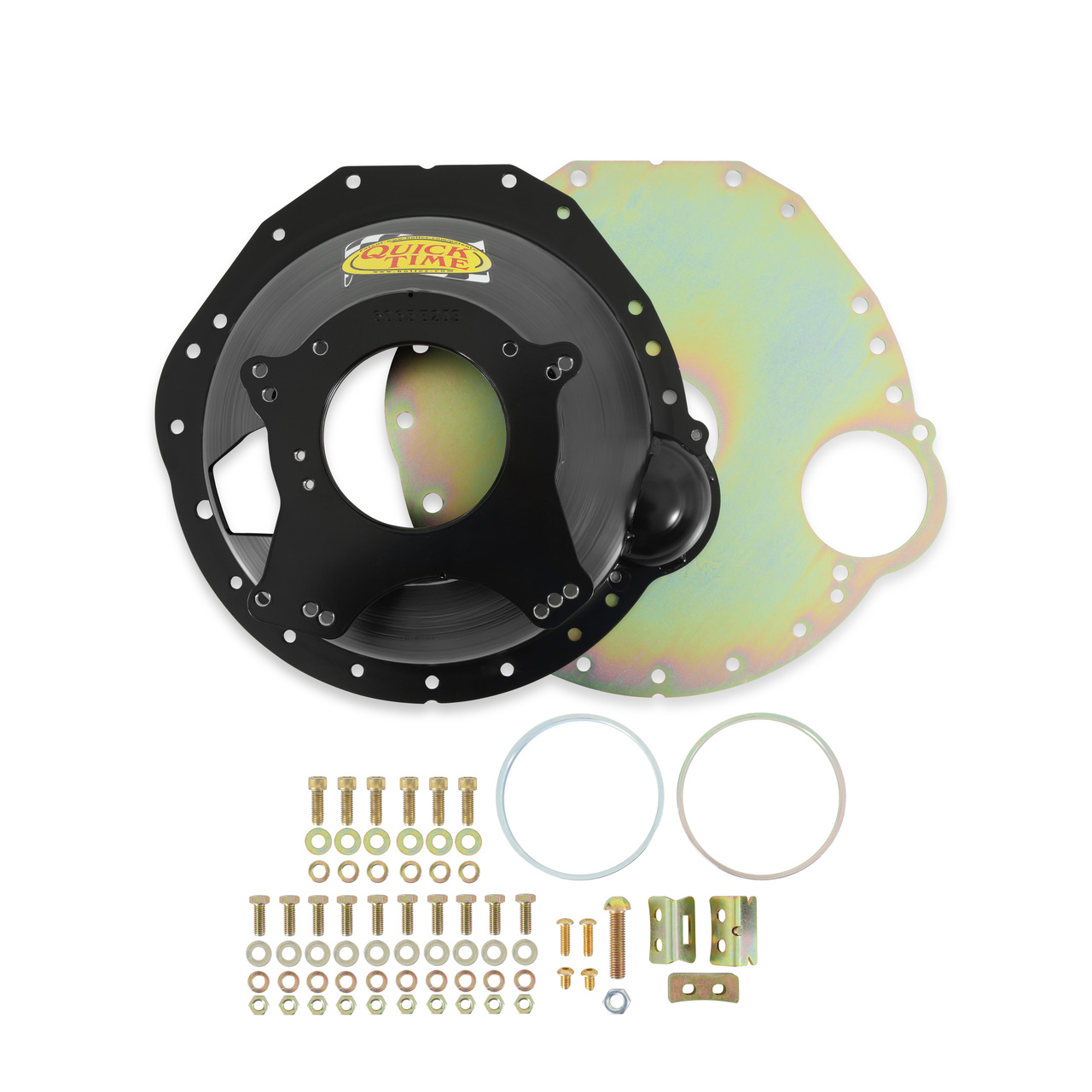

Bellhousing - Block Plate - Hardware Included - SFI 6.1 - Steel - Black Paint - Ford TKO 500-600 / TR3550 / T5 - Small Block Ford - Kit

QuickTime Bellhousing; Ford Small Block Engine To TKO/TR3550/T5 Trans.; 6.1 SFI Certified; Hydraulic; 157 Tooth; 6.925 in. Height; 4.85/4.91/5.12 Trans. Bore; OEM Starter;

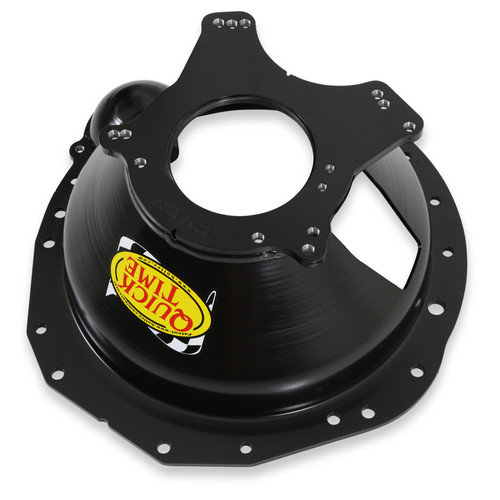

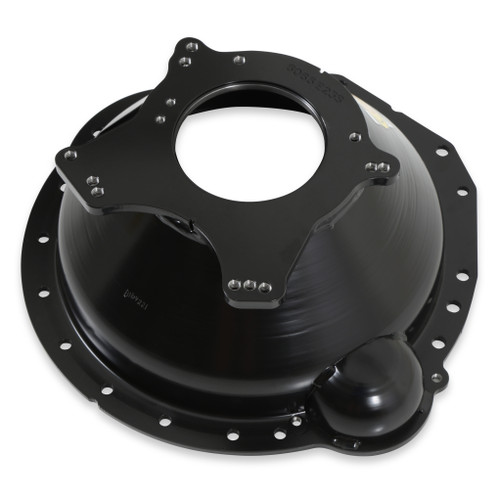

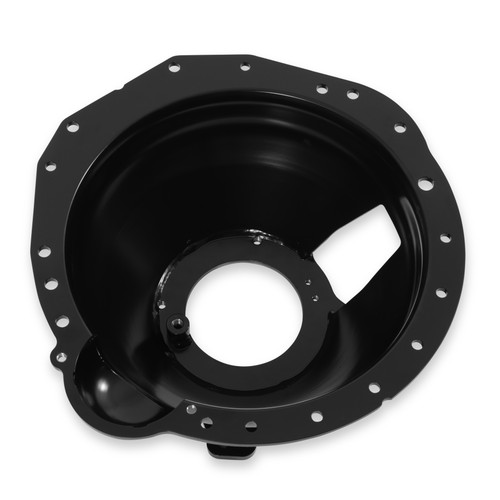

The Quick Time RM-6065 bellhousing connects a small block Ford engine to a Ford TKO 500-600, TR3550, or T5 Mustang (standard length input shaft) transmission. This bellhousing is S.F.I. 6.1 certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile. This bellhousing is a universal fit bellhousing and is not vehicle specific. The Quick Time bellhousings are produced using a unique spin forming process which results in a very high strength material. This high material strength allows the Quick Time bellhousings to be light weight while maintaining the protection you desire. Note: (Transmission Mounting Bolts Not Included)

• Patent On 16 Points Of Bellhousing Design And Process
• Designed For Ford OE Fork Or Cable Style Bearing
• Fits Up To A 157 Tooth Flywheel And 10.5 in. Clutch
• Utilizes OEM Style Starter Attachment / Placement
• Transmission Bore 4.850 in./4.910 in.
• Bellhousing Depth 6.925 in.
• Weight 22 lbs.
• Grade 8 Fasteners
• Made In The USA
