MSD 8597 - Pro-Billet Distributor

MSD 8597 - Pro-Billet Distributor

$674.95
$599.95
(You save $75.00 )
Description

MSD - 8597

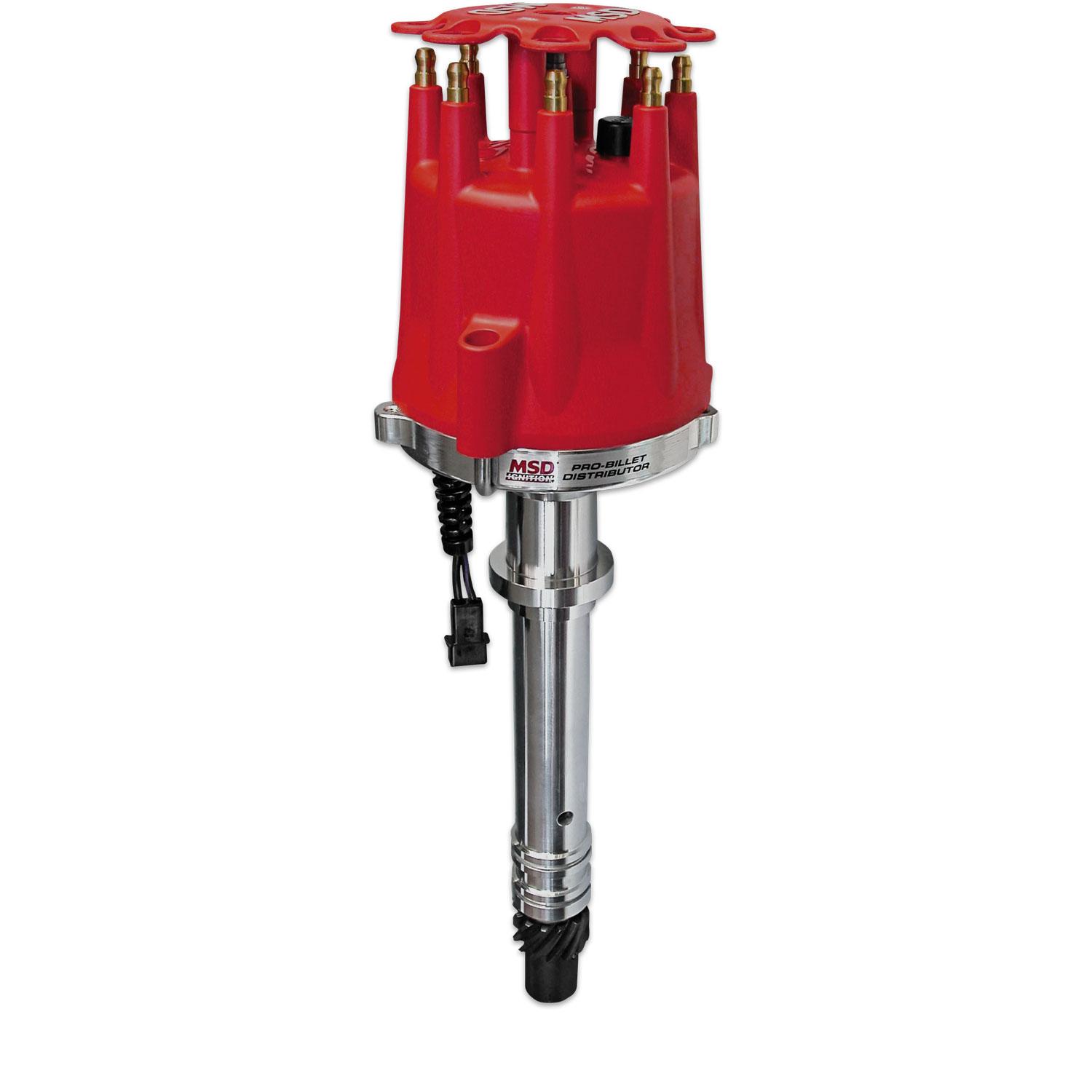

Distributor - Pro-Billet - Magnetic Pickup - Mechanical Advance - HEI Style Terminal - Red - GM V6 - Each

Pro-Billet Distributor; Incl. Cap/Race Rotor; Use w/MSD 6/7/8/10 Series Ignition; Even-Fire; Iron Gear;

Starting on the inside, a 0.500 In. oversized steel shaft spins in a sealed ball bearing and sintered bushing for long endurance and accurate spark delivery throughout the entire RPM range. Mounted on top of the shaft is an easy-to-adjust chromoly mechanical advance assembly. Different advance springs and stop bushings are supplied so you can choose from 24 curves. A maintenance-free magnetic pick-up provides accurate trigger signals to your MSD Ignition control. A precision-manufactured reluctor that is connected to the shaft is responsible for triggering the pick-up. The distributor is topped off with a high quality black cap and race rotor.

  • CNC machined billet aluminum housing and billet aluminum base
  • Will not accept a vacuum advance canister
  • Must be used with an MSD Ignition Control
  • O-ring seals can be added to modified blocks to improve oil pressure control•  Supplied with socket style distributor cap and rotor
  • Special oil tract improves lubrication to the distributor and cam gear
  • Nylon pads ensure smooth operation of the advance weights
  • Advance weight pins are staked and tig welded to the plate
  • Mechanical advance assembly can be locked out
  • Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
  • Polished steel shaft is QPQ coated and guided by a sealed ball bearing and extra long sintered bushing
  • Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
  • Easy-to-adjust mechanical advance with supplied springs and stop bushings
  • No CARB Exemption Order Number

Brand: MSD
Category: Ignition
Color: Red
Distributor Type: Magnetic Pickup
Emission Code: 3
part type: Distributor
Product Type: Distributor
Sub Category: Distributor and Magneto
Warning: California Proposition 65
Warranty: Manufacturer's Limited 1 Year Warranty
