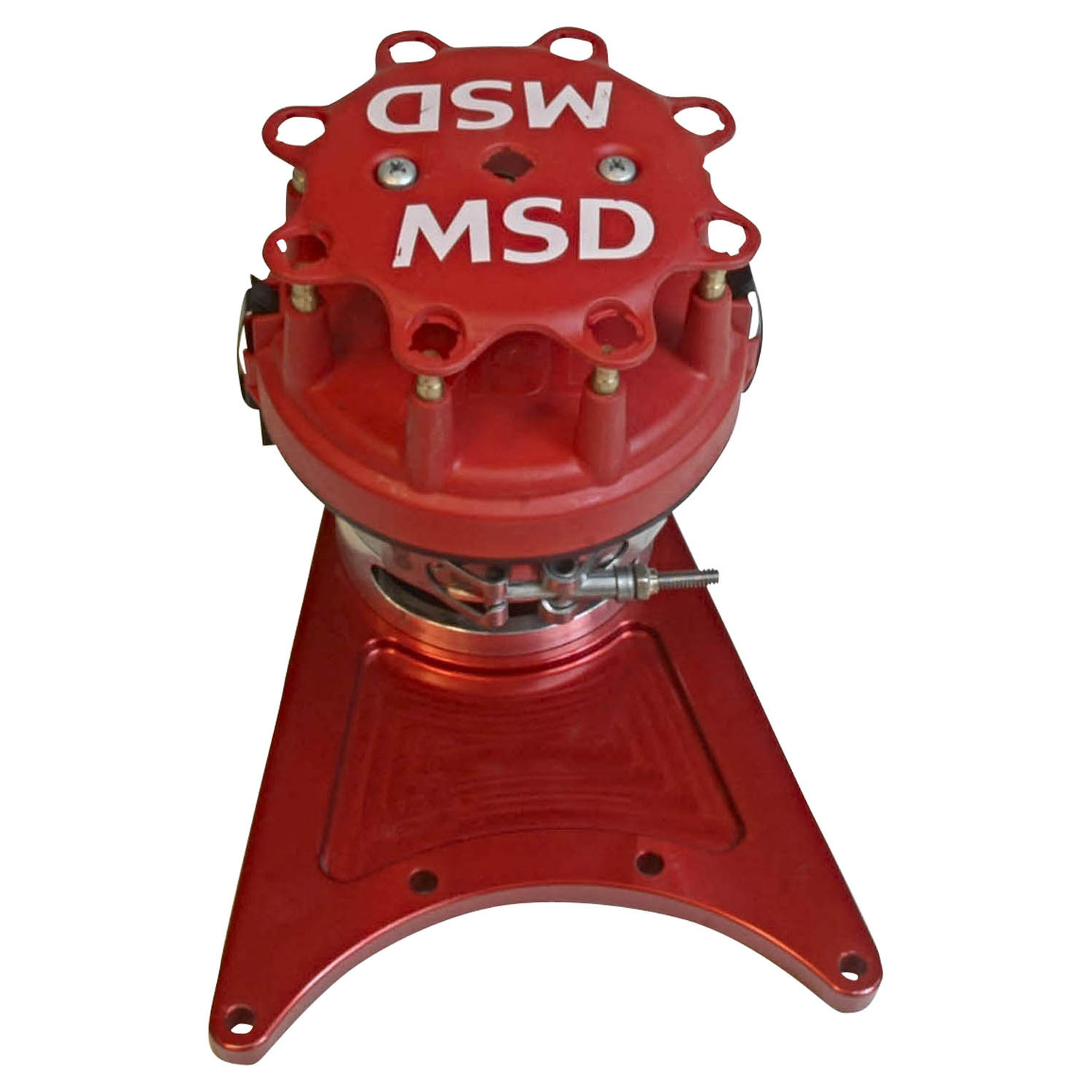

MSD - 8520

Distributor - Pro-Billet Front Drive - Magnetic Crank Trigger Pickup - Mechanical Advance - HEI Style Terminal - Red - Big Block Chevy - Each

Pro-Billet™ Front Drive Distributor; w/Standard Size Ford Style Distributor Cap/Rotor; Incl. Belt/Cam Pulley; Chevy Big Block;

MSD's Pro-Billet front drive distributor is the solution for race engines that don't have room for a standard distributor due to firewall clearance or intake combinations. The MSD front drive distributor is belt-driven from a pulley installed on the camshaft. For increased strength and durability a 9 mm belt is used which is wider than any other drive assembly. The distributor head is CNC-machined from a billet of aluminum and is secured to a strong precision bracket. This system is an extremely accurate way to distribute the spark energy from your MSD Ignition! We revised the front drive with our standard ford-style cap and rotor. This creates a downsized package for an easier fit in tight engine compartments. The front drive distributor is supplied with mounting bolts, cam pulley and drive belt. Note: must be used with a jewel or Comp Cams camshaft belt drive kit and an MSD flying magnet crank trigger.

• Band clamp mount allows easy rotor phasing adjustment
• The Only Front Drive Distributor w/Adjustable Belt Tension
• Cap and Rotor are injection molded from DuPont Rynite material
• Billet aluminum bracket and lower housing for strength
• Supplied w/Cam Gear; Hardware And Extra Wide 9mm Belt
