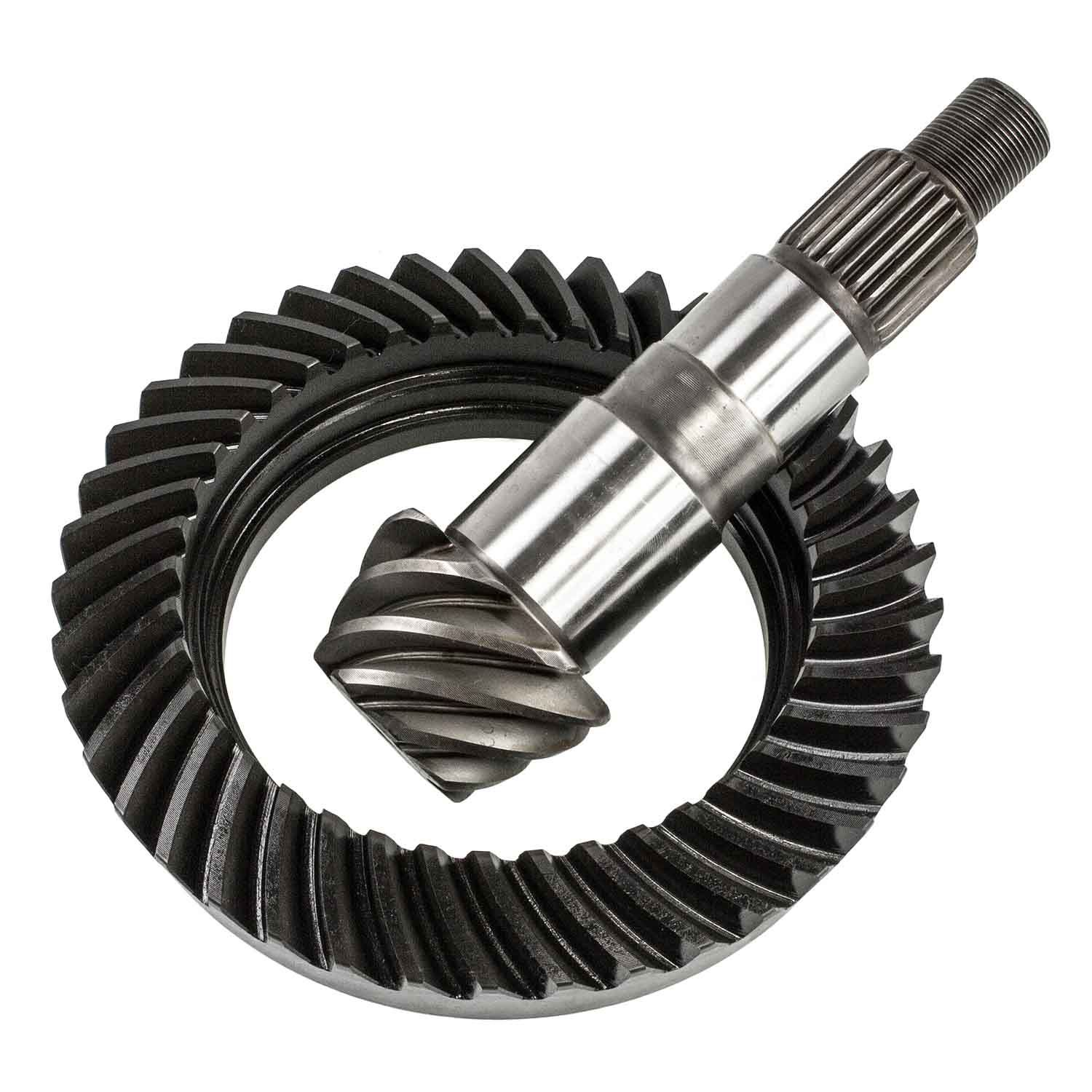

Motive Gear D30-513RJK - Differential Ring and Pinion

Motive Gear D30-513RJK - Differential Ring and Pinion

$424.99
$192.99
(You save $232.00 )

Motive Gear - D30-513RJK

Motive Gear - Differential Ring and Pinion - Reverse Cut JK

Motive Gear offers some of the toughest drive train components on the market today. If you are looking for the largest line of performance ring and pinion gear options available with gear sets in a wide range of ratios for nearly every application, both on and off-road, check out Motive Gear. Motive Gear products can be found in the winner's circle at racing events worldwide. The superior quality of Motive Gear components is the result of years of racing development, outstanding design and state-of-the-art manufacturing methods. Extensive testing is performed on all products by our in-house engineers.

App/Model: Dana AdvanTEK M186
App/Model: Dana 30 JK Reverse
App/Model: Dana 30 JL Reverse
Differential Carrier Break: 3.73 Ratio and Higher
Taxonomy A: LD Differential
Taxonomy B: Ring and Pinion
Taxonomy C: Front
Taxonomy D: 5.13
Ring Gear Material: 8620 Steel
Pinion Shaft Diameter: 1.376
Ring Gear Rotation: Reverse
Pinion Gear Tooth Quantity: 8
Gear Ratio: 5.13
Ring Gear Outside Diameter: 7.125
Pinion Spline Count: 24
Differential Case Design Type: Dana AdvanTEK M186
Differential Case Design Type: Dana 30 JK Reverse
Differential Case Design Type: Dana 30 JL Reverse
Cover Bolt Quantity: 10
Ring Gear Tooth Quantity: 41
Ring Gear Bolt Quantity: 10
