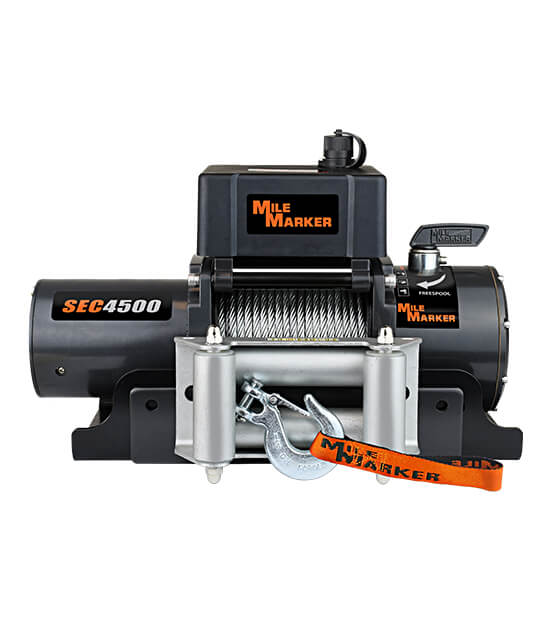

Mile Marker - 76-50115BW

The SEC4500 is a versatile utility and trailer recovery winch that revolutionizes efficiency and performance with its condensed size, low amperage draw and fast line speeds. Ideal for use in car trailers, utility trailers, UTVs, and compact SUVs, at only 51 pounds, it packs a punch with 4,500 pounds of pulling capacity.

Fully-sealed, submersible, water, mud, and snow proof, the SEC4500 includes a 1/4 inch x 79 foot steel cable, a roller fairlead, a hook, a recovery tow strap, mounting plate, corrosive-resistant, and a handheld remote control for versatility and convenience.

With a high-output, permanent magnet motor and marine grade remote control connectors, the SEC4500 provides the durability and reliability you can depend on in the most extreme situations.

Features:

• 3.7 HP Series Wound Motor
• Low Amperage Draw
• Rugged Planetary Gear Sets
• Clockable Gear Housing
• Submersible, 250 Amp Solenoid
• Automatic Load Holding Brake
• Corrosion Resistant Stainless Steel Fasteners
• 79 foot of Steel Cable
• Roller Fairlead
• Waterproof
• Handheld Remote Controls
• Includes Mounting Plate
• Includes Tow Strap for Car Haulers

Specifications:

• Rated line pull 4500 lbs (2041 kg)
• Gear Train 3 Stage Planetary
• Gear Ratio 150:1
• Motor 12V DC,input power: 3.7Hp (2.7kw)
• Control Pendant Power-In, Power-Out Remote, 12 foot (3.7 m)
• Dimensions (LxWxH) 17.2 inch X 6.2 inch X 7.83 inch(436 mm X 152 mm X 185 mm)
• Steel Cable 1/4 inchx 79 foot (nominal 7,000 lbs., 3175 kg) (5.45 mm X 24 m)
• Drum Size Diameter/Length 2.5 inch X 5.5 inch(63 X 140 mm)
• Net weight 51 lbs (23 Kg) (with mounting bracket)
• Bolt Pattern 4 Bolt Pattern 6.54 inch X 4.5 inch(166 X 114.3 mm)
