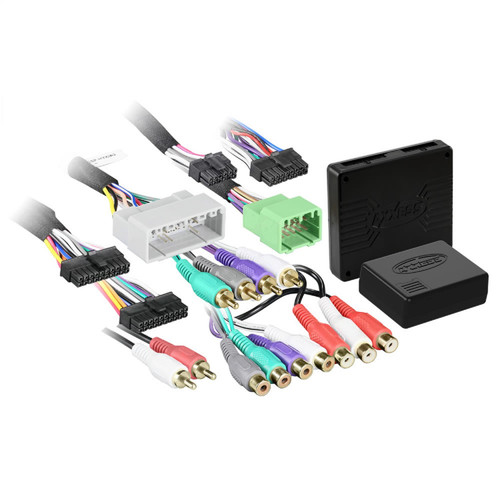

Metra Electronics - AX-DSP-HD1

Plug-N-Play Harness For AX-DSP;

AXXESS has developed a cost effective option for customers wanting to retain their factory radio and improve vehicle sound quality. These plug-n-play harness work with the AX-DSP (SOLD SEPERATELY). The Axxess T-harness is a basic and simple plug-n-play harness for easy installation of the AX-DSP (sold separately) for vehicle specific applications. Most T-harnesses created by Axxess will either have a 4-pin or 8-pin harness, with the speaker wires pinned. If you are installing a 4-channel amplifier with the AX-DSP, leave these connectors disconnected. The only reason for connecting these harnesses together would be if the AX-DSP is being used for aDDINg a subwoofer amplifier only. Some T-harnesses require additional wiring and/or installation steps. Refer to the following page for a pinout legend for the 20-pin harness, and also additional wiring and notes.

• Retains Factory Radio
• Improves Vehicle Sound Quality
• Must Used With Ax-Dsp Digital Signal Processor Sold Separately
• Plug-N-Play Harness For Easy Installation Of The Ax-Dsp
