Mcleod 681712-00-25 - Drag Mag Steel Twin Mazda Rotary Turbo 1 X 23 Metric Spline No Gear S
Mcleod 681712-00-25 - Drag Mag Steel Twin Mazda Rotary Turbo 1 X 23 Metric Spline No Gear S
Mcleod 681712-00-25 - Drag Mag Steel Twin Mazda Rotary Turbo 1 X 23 Metric Spline No Gear S
Mcleod 681712-00-25 - Drag Mag Steel Twin Mazda Rotary Turbo 1 X 23 Metric Spline No Gear S

Mcleod 681712-00-25 - Drag Mag Steel Twin Mazda Rotary Turbo 1 X 23 Metric Spline No Gear S

Write a Review
$2,220.00
$1,850.00
(You save $370.00 )
SKU: MC-681712-00-25
UPC: 887753315281
Stock: 0
Vendor: Turn14 - CSR
SpecialOrder: True
CarbRejected: False
CouponIsOn: True
StockEta: N/A
ProfitMargin: 19.300
CostOfItem: 1480.00
ItemPopularity: 0
MapPrice: 1850.00
RetailPrice: 2220.00
EbayAllowed: False
WarehouseStock: 0
ShippingGroups: ["Flatrate_Turn14"]
EbayPrice: 1850
ShipperHq: {"shipping-groups":["Turn14","FreeShipping","Flatrate_Turn14"],"shipping-origins":[],"shipping-dimensional-rules":[]}
IsReturnable: True
EbayPriority: 0

Out of stock

  • screenshot-2024-06-06-013938.png
Mcleod 681712-00-25 - Drag Mag Steel Twin Mazda Rotary Turbo 1 X 23 Metric Spline No Gear S

Mcleod 681712-00-25 - Drag Mag Steel Twin Mazda Rotary Turbo 1 X 23 Metric Spline No Gear S

$2,220.00
$1,850.00
(You save $370.00 )
Description

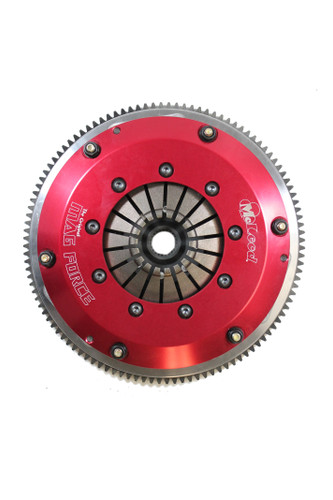

Mcleod - 681712-00-25

Mag Force; Double Disc;Mazda Rotary 13B;Turbo;8" x 1 x 23 Metric Spl;Each

Mag Force; Double Disc;Mazda Rotary 13B;Turbo Crank;8" x 1 x 23 Metric Spl;Steel Flywheel;NO RING GEAR;Each

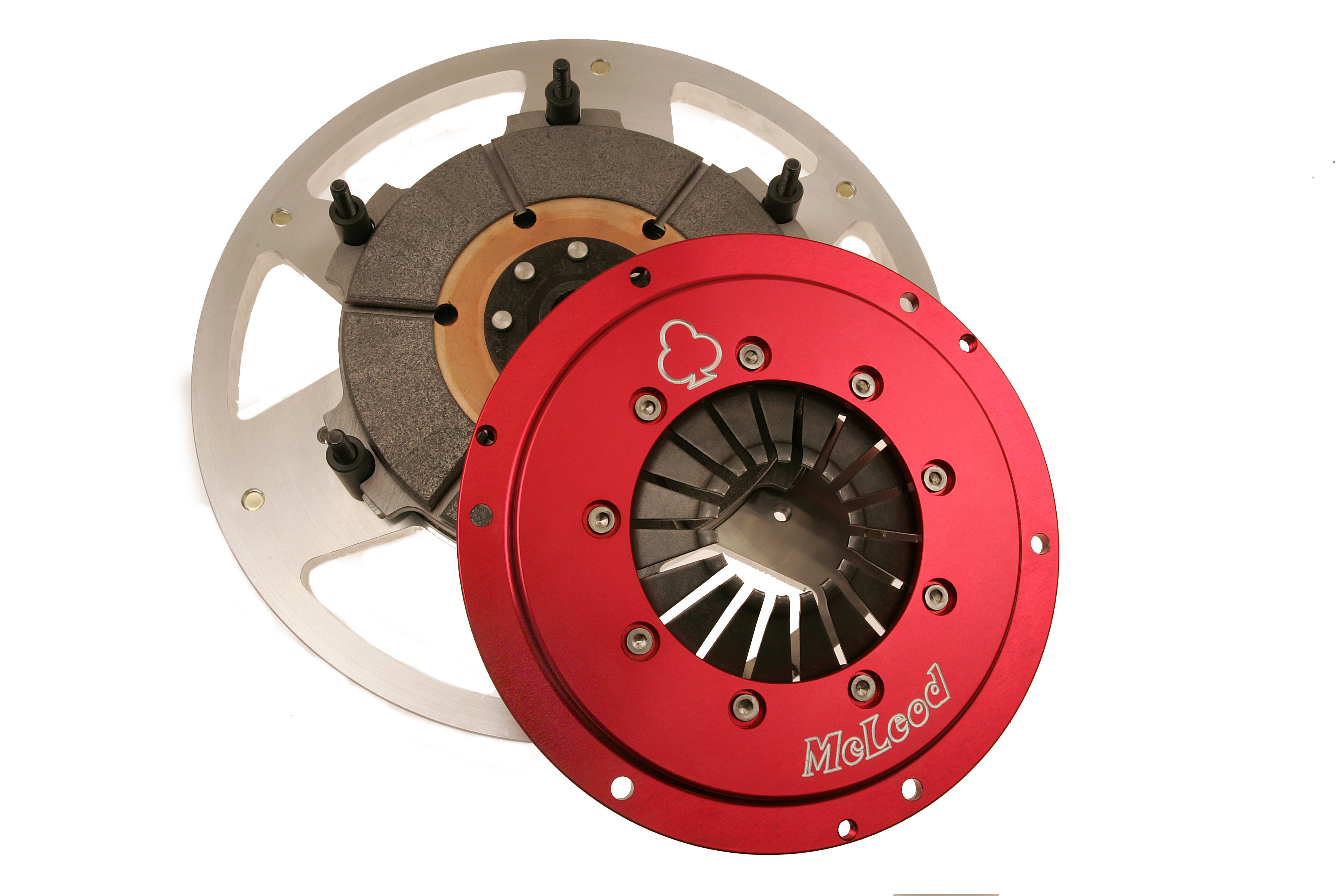

Mag Force - These Clutches Are The Perfect Choice For Racers Looking For A Lightweight, High Torque Capacity Unit. They Are Designed To Be Used For Oval Track, Road Racing And Dry Lakes Applications. These Units Are Offered In Single Disc (500Ft Tq) Double Disc (900 Ft Tq) And Triple Disc (1500 Ft Tq) Configurations To Meet The Harshest Needs In The Industry. These Units Rely On A Pin Drive Actuation System Where The Floater Plate Slides On 6 Evenly Spaced Pins For Quick Release In A Racing Application. Our Mag Force Units Also Offer Bolt On External Balance Weights For Most Applications.

  • • Ceramic Discs. • Pin or Strap Drive. • Oval Track, Road Racing and Dry Lakes usage. • Single Disc (500Ft Tq) • Double Disc (900 Ft Tq) • Triple Disc (1500 Ft Tq

Pilot Bushing Included: No
Throwout Bearing Included: No
Flywheel Included: Yes
Flywheel Material: Billet steel
Engine Balance: Internal
Quantity: Sold as a kit.
Note: This unit does not come with a Ring Gear. Customer must source the ring gear for this flywheel.
Make: Mazda
Disc Diameter (in.): 8.000
Input Shaft Diameter (in.): 1.000
Input Spline Quantity: 23M
Disc Material: Sintered Iron
Disc Style: Full face
Hub Style: Solid
Clutch Disc Quantity: 2
Pressure Plate Style: Diaphragm
Clutch Usage: Performance
Hardware Included: Yes
Alignment Tool Included: Yes
