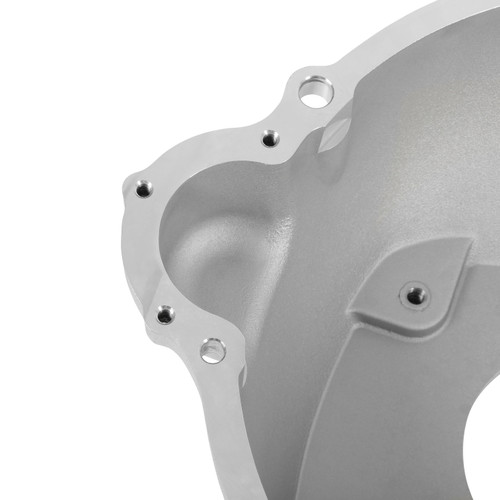

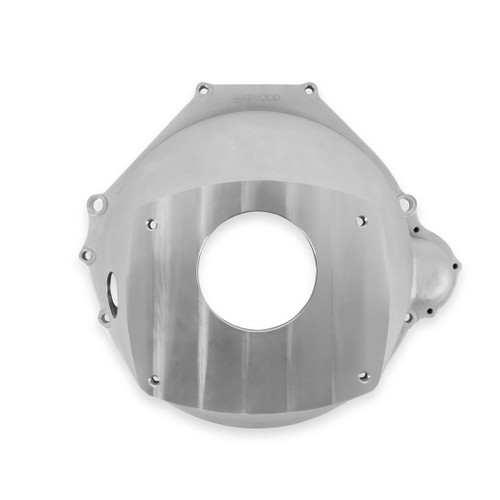

Lakewood - LK8200K

Bellhousing - Hardware Included - Aluminum - Natural - TKX / TKO / TR3550 - Ford Coyote - Kit

Connects Ford Coyote and Modular Engines to Tremec TKX, TKO, and TR-3550 Transmissions

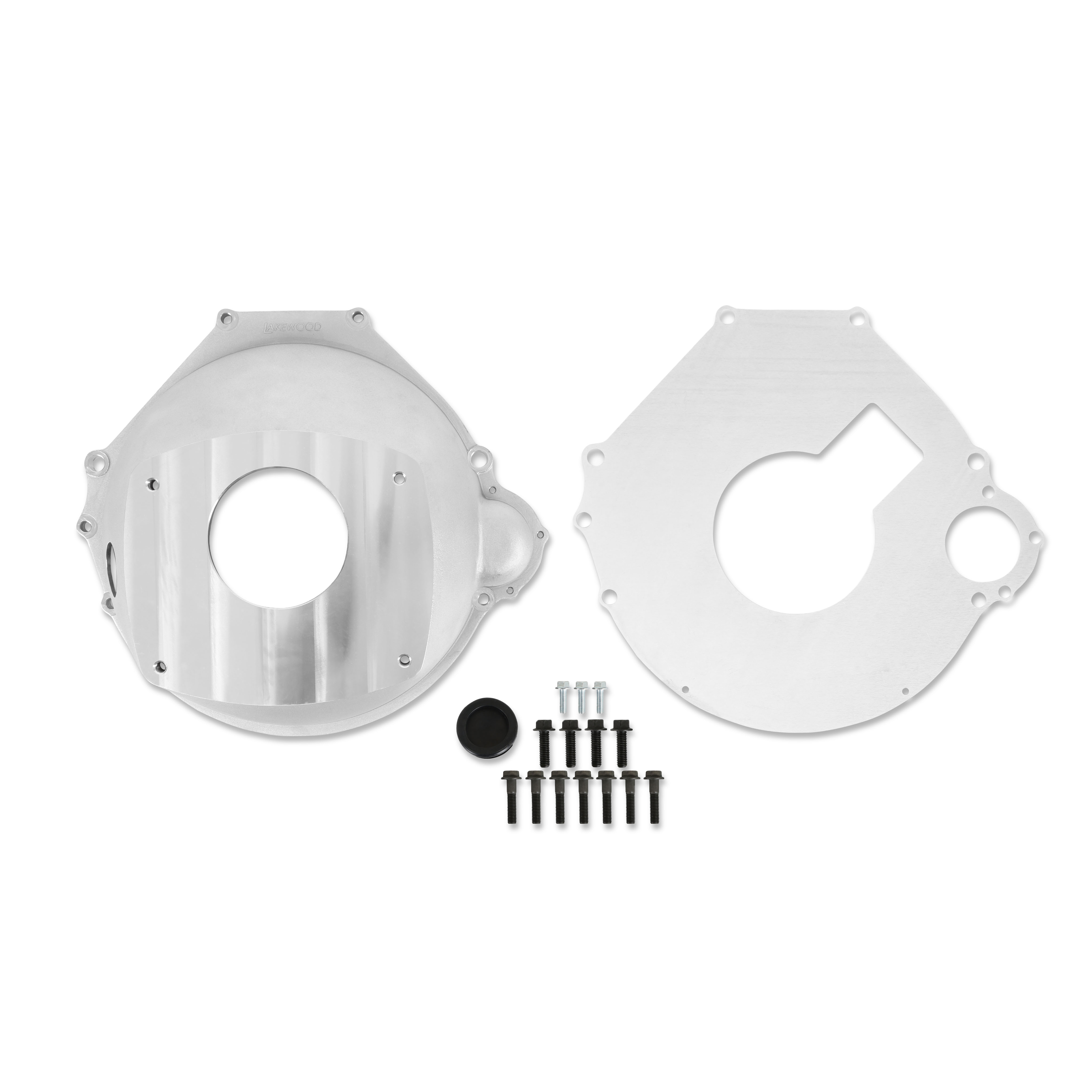

These Lakewood cast aluminum bellhousings connect Ford Coyote and Modular Engines to Ford-Style Tremec TKX, TKO, and TR-3550 transmissions. The bellhousings can be used on both Ford cars and trucks and other manufacturers where swap applications are being installed. These kits come complete with a block plate, hydraulic hose grommet, and Grade 8/10.9 mounting hardware that connects the bellhousing to both the engine and transmission.

• Lightweight cast aluminum design similar to the original equipment bellhousings
• Connects Ford Modular or Coyote engines to Ford-style Tremec TKX, TKO, and TR-3550 Transmissions
• Lower cost non-SFI rated option for projects that do not require a steel SFI rated unit
• Designed For Hydraulic Throwout/Release Bearing (recommend Hays #82-103)
• Bellhousing Depth: 7.27 in
• Transmission Bore Diameter: 4.685 In
• Includes Grade 8/10.9 Hardware for both engine and transmission
• Includes block plate and grommet for sealing off hydraulic hose opening
