JE Pistons JC11F4-3405 - Ring Sets 1.5-1.5-4m-3.405

JE Pistons JC11F4-3405 - Ring Sets 1.5-1.5-4m-3.405

$162.62
$147.84
(You save $14.78 )

JE Pistons - JC11F4-3405

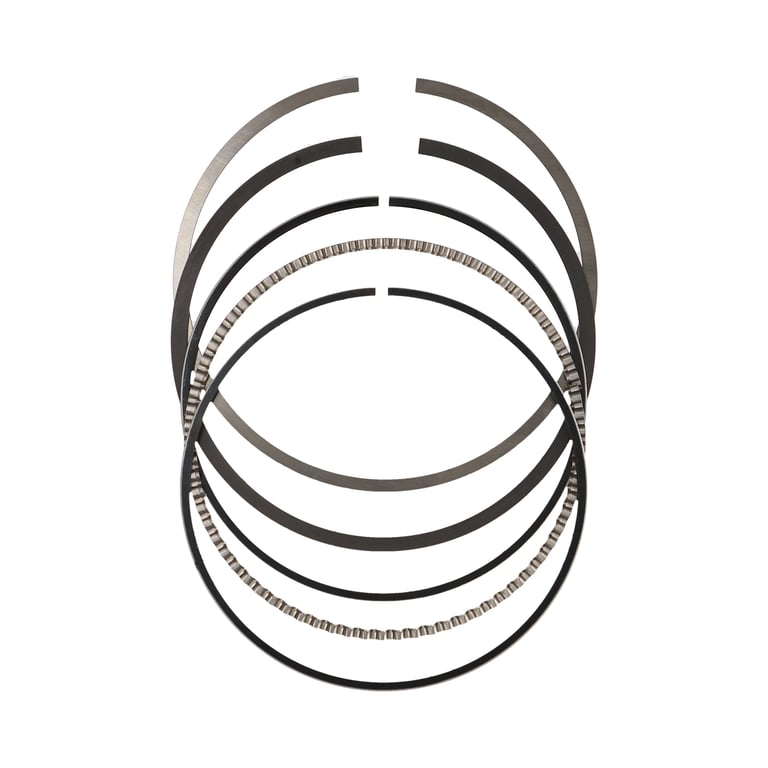

Piston Ring Set, 4 Cyl., File Fit, 0.0591 in. Ductile Iron Chrome Top Ring, 0.0591 in. Iron Phosphate Second Ring, 0.1575 in. Carbon Steel Chrome Standard Tension Oil Ring, Each.

JE Piston Rings are designed to maximize horsepower through precision sealing of combustion pressure. They are offered in a huge selection of sizes, various materials, and in multiple thicknesses to suit a wide variety of engines. JE Pistons also offers an array of custom piston ring services including back cutting, dyke cutting, lapping, grinding, and PVD coating. These services, the same used by top NHRA Pro Stock and NASCAR teams, are now available to the public and offer tremendous gains in durability, power through reduced friction, and improved ring seal.

  • Multiple high-end materials to suit street and racing applications; Precision lapping and other custom services available; Multiple ring face styles and coatings

Bore Diameter - Web: 3.405 IN / 86.49 MM
Bore Diameter: 3.405
Bore Diameter: 86.49
Category Hierarchy: Auto>Accessories>Rings
Category Hierarchy: Powersports>Accessories>Rings
Category Hierarchy: Auto>Accessories>Pro Seal Piston Rings
Engine Type: ICE
File Fit: Yes
Industry: Automotive
Oil Ring Axial Height: 4.00
Oil Ring Radial Width: 0.145
Oil Ring Thickness: 0.158
Out of Stock Message: Call for Availability
Product Type: Engine Piston Ring Set
Ring Set Thickness: 0.0591 in. Top x 0.0591 in. 2nd x 0.158 in. Oil
Ring Type: 3 Ring
Second Compression Ring Thickness: 0.0591
Second Ring Axial Height: 1.50
Second Ring Facing Material: Phosphate
Second Ring Material: Iron
Second Ring Radial Width: 0.161
Third Ring Facing Material: Carbon Steel
Third Ring Material: Carbon Steel
Third Ring Shape: Full Seal, Flex Vent
Title - Web: Piston Ring Set - 3.405 in. Bore - 0.0591 in. Top / 0.0591 in. 2nd / 0.158 in. Oil - 4 Cyl.
Top Compression Ring Thickness: 0.0591
Top Ring Axial Height: 1.50
Top Ring Facing Material: Chrome
Top Ring Material: Ductile Iron
Top Ring Radial Width: 0.153
Top Ring Shape: Barrel Face, D-wall, Neutral
