JE Pistons J950F8-4030-3 - Ring Sets 1.2-1/16-3mm GOLDCUP

JE Pistons J950F8-4030-3 - Ring Sets 1.2-1/16-3mm GOLDCUP

$597.29
$542.99
(You save $54.30 )

JE Pistons - J950F8-4030-3

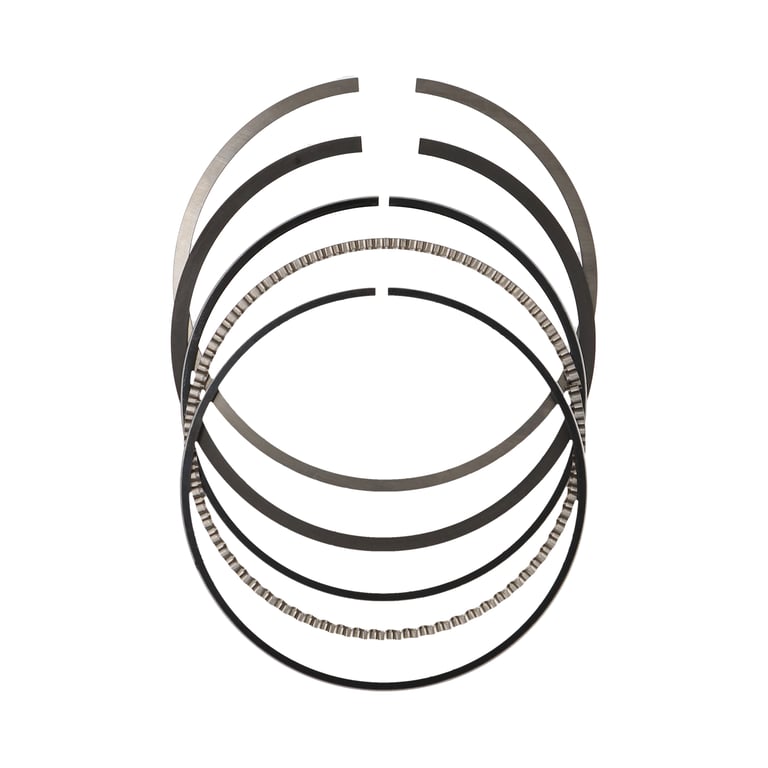

Piston Ring Set, 8 Cyl., File Fit, 0.0472 in. Stainless Steel Titanium Nitride Top Ring, 0.064 in. Iron Phosphate Second Ring, 0.1181 in. Carbon Steel Chrome Standard Tension Oil Ring, Each.

JE Piston Rings are designed to maximize horsepower through precision sealing of combustion pressure. They are offered in a huge selection of sizes, various materials, and in multiple thicknesses to suit a wide variety of engines. JE Pistons also offers an array of custom piston ring services including back cutting, dyke cutting, lapping, grinding, and PVD coating. These services, the same used by top NHRA Pro Stock and NASCAR teams, are now available to the public and offer tremendous gains in durability, power through reduced friction, and improved ring seal.

  • Multiple high-end materials to suit street and racing applications; Precision lapping and other custom services available; Multiple ring face styles and coatings

Bore Diameter - Web: 4.030 IN / 102.36 MM
Bore Diameter: 4.030
Bore Diameter: 102.36
Category Hierarchy: Auto>Accessories>Rings
Category Hierarchy: Powersports>Accessories>Rings
Category Hierarchy: Auto>Accessories>Pro Seal Piston Rings
Engine Type: ICE
File Fit: Yes
Industry: Automotive
Oil Ring Axial Height: 3.00
Oil Ring Radial Width: 0.146
Oil Ring Thickness: 0.118
Out of Stock Message: Call for Availability
Product Type: Engine Piston Ring Set
Ring Set Thickness: 0.0472 in. Top x 0.0640 in. 2nd x 0.118 in. Oil
Ring Type: 3 Ring
Second Compression Ring Thickness: 0.0640
Second Ring Axial Height: 1/16
Second Ring Facing Material: Phosphate
Second Ring Material: Iron
Second Ring Radial Width: 0.187
Second Ring Shape: Taper Face, D-wall, Reverse Torsional
Third Ring Facing Material: Carbon Steel
Third Ring Material: Carbon Steel
Third Ring Shape: Full Seal, Flex Vent
Title - Web: Piston Ring Set - 4.030 in. Bore - 0.0472 in. Top / 0.0640 in. 2nd / 0.118 in. Oil - 8 Cyl.
Top Compression Ring Thickness: 0.0472
Top Ring Axial Height: 1.20
Top Ring Facing Material: Titanium Nitride
Top Ring Material: Stainless Steel
Top Ring Radial Width: 0.152
Top Ring Shape: Barrel Face, Back Cut, Neutral
