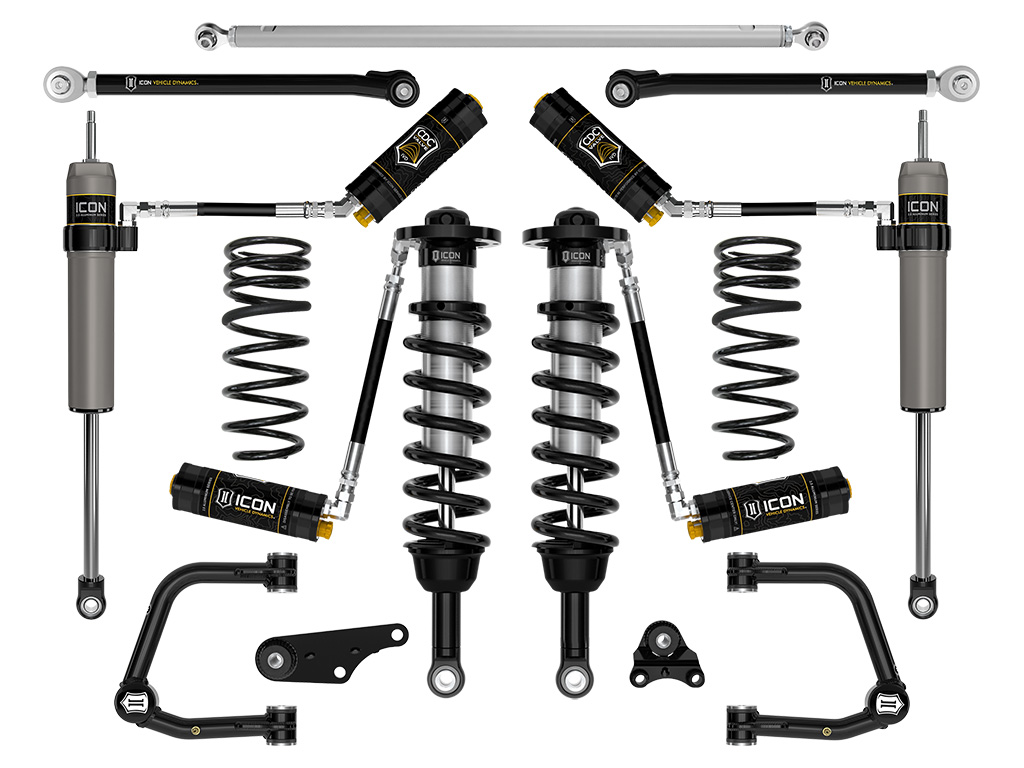

Icon K53368T - 2024+ Toyota Land Cruiser 250 Series/Lexus GX550 Stage 8 CDCV Lift Kit

Icon K53368T - 2024+ Toyota Land Cruiser 250 Series/Lexus GX550 Stage 8 CDCV Lift Kit

$6,823.00
$6,132.65
(You save $690.35 )

Icon - K53368T

24 LAND CRUISER 250 SERIES 1.25-3" LIFT STAGE 8 SUSPENSION SYSTEM CDCV TUBULAR

ICON LC250 suspension systems are designed with maximum performance and the serious driver in mind. ICON'S primary focus is increased wheel travel and damping ability, translating into outstanding control and ride quality on and off-road.

The included ICON tubular upper control arm kit is designed to improve the overall performance of the Land Cruiser with corrected front-end geometry, built in additional caster, and improved suspension component clearance. Additionally, replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. The dual-rate rear coil design provides a softer ride height spring rate with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. 2” of rear lift height over stock allows a for level stance front to rear. The ICON Billet Adjustable Rear Track Bar helps re-center the rear axle and double adjuster rod end threads allow easy “on-vehicle” fine adjustment of track bar length without requiring removal or disassembly of the track bar. ICON tubular rear lower links employ dual-durometer greaseless bushings at one end, and massive FK rod ends at the other to provide the best combination of free articulation while isolating and damping road noise and vibrations. ICON 2.5 Aluminum Series CDCV remote reservoir rear shocks with integrated bump zones provide improved shock damping ability and utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2024 Toyota Land Cruiser 250 Series Stage 8 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

  • 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
  • All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
  • Increased wheel travel and improved ride quality over stock
  • Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel
  • Adjustable coilovers provide 1.25-3" front lift height over stock
  • Tubular UCAs for added strength, durability, and alignment correction for better drivability
  • UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
  • 6061 aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
  • Tubular rear lower links improve rear end articulation and allow for pinion angle adjustment
  • On-vehicle adjustable billet aluminum rear track bar properly centers rear axle while also improving rear suspension performance
  • Dual rate rear coil springs improve performance and ride quality while providing 2" of rear lift
  • FK Rod End bearings for extended longevity and minimal deflection
  • 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers

Active or Passive Suspension: Passive
Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
Add-On Part: 191013 - NIPPLE GREASING ADAPTER KIT
Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
Add-On Part: 54102T - 22-25 TUNDRA/23-24 SEQUOIA/24 TACOMA/LC250/GX550 TUBULAR REAR UPPER LINK KIT
Adjustable Compression: Yes
Adjustable Control Arm: No
Adjustable Damping: Yes
Adjustable Rebound: No
Bushings Included: Yes
Coil Quantity Front: 2
Coils Quantity Front: 2
Damping Adjustment Type: Manual
Front Shock Body Diameter: 2.5
Front Spring Rate Type: Linear
Grade Type: Performance
Maximum Lift: 3
Maximum Lift Front: 3
Maximum Lift Rear: 2
Minimum Lift Front: 1.25
Mounting Hardware Included: Yes
OEM Wheels & Tires Fitment: Yes
Rear Shock Body Diameter: 2.5
Rear Spring Rate Type: Progressive Dual Rate
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required)
Recommended Aftermarket Wheels: 17x8.5 with 6.32” Backspace / 40mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 6.6” Backspace / 40mm Offset
Reservoir Style: Remote
Shocks Included: Yes
Spring Color: Black
Spring Material: Steel
