Icon K53184 - 10-UP GX460 0-3.5" STAGE 4 SUSPENSION SYSTEM W BILLET UCA

Icon K53184 - 10-UP GX460 0-3.5" STAGE 4 SUSPENSION SYSTEM W BILLET UCA

$5,851.35
$5,086.99
(You save $764.36 )

Icon - K53184

2010-UP LEXUS GX460 0-3.5" LIFT STAGE 4 SUSPENSION SYSTEM WITH BILLET UCA

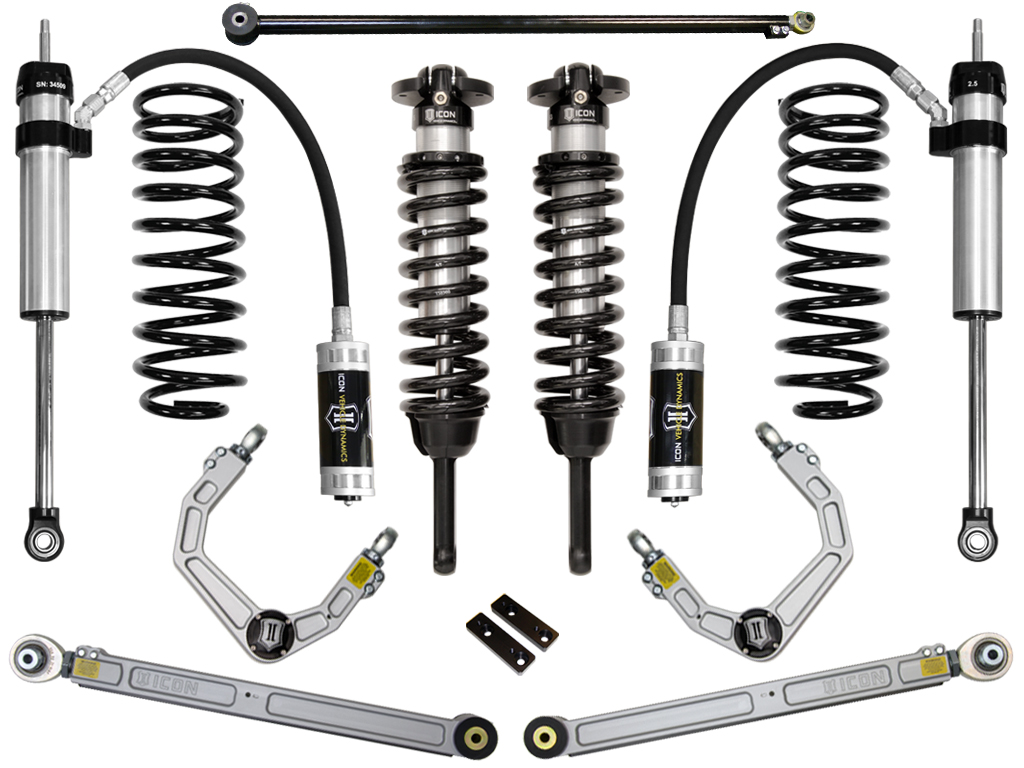

The Stage 4 system includes vehicle-specific tuned, extended travel 2.5” coilover shocks with internal reservoirs paired with billet aluminum Delta Joint upper control arms. This combination allows for extended wheel travel and on-vehicle adjustment of the upper control arms to dial in front end alignment. The coilovers are also height adjustable from 0-3.5” of lift over stock, allowing the use of larger, more aggressive wheel and tire combinations. ICON 2” lift rear coil springs paired with 2.5 Aluminum Series remote reservoir rear shocks utilizing vehicle-specific valving offer increased performance compared to the 2.0 Aluminum Series shocks. ICON's billet aluminum lower links are much stronger than the OE units, improve articulation, and can be adjusted while installed on the vehicle for optimum pinion angle. On top of it all, these links have been designed to provide correct roll steer geometry for the best possible handling on and off-road. An adjustable rear track bar is also included for KDSS compatibility that also helps correct rear end alignment. The ICON Vehicle Dynamics 2010-UP Lexus GX460 Stage 4 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

  • Increased wheel travel and ride quality over stock
  • 2.5 Aluminum Series rear remote reservoir shocks with 7/8" shafts
  • Included adjustable rear track bar ensures KDSS compatibility
  • Bolt-on system means no cutting or welding necessary for install
  • Vehicle specific tuned front and rear shocks for superior shock damping and control
  • Adjustable coilovers provide 0-3.5" of lift height
  • ICON upper control arms allow for additional wheel travel (when paired with extended travel coilovers) while improving suspension geometry for predictable handling
  • Patented Delta Joint (U.S. Pat. 10,731,700) combines the durability and weather resistance of a ball joint with the performance characteristics of a uniball
  • Billet rear lower links offer increased strength, improved geometry, and on-vehicle pinion angle adjustment
  • 6061 aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated coilover shock body with 7/8" shaft
  • FK Rod End bearings for extended longevity and minimal deflection

AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Add-On Part: 252008 - 2.5 X 13 SHOCK BOOT BLACK (PAIR)
Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
Add-On Part: 191014 - .25" COLLAR SPANNER PIN WRENCH
Bushings Included: Yes
Coils Quantity Front: 2
Coils Quantity Rear: 2
Grade Type: Performance
Maximum Lift: 3.5
Mounting Hardware Included: Yes
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
Shocks Included: Yes
Spring Color: Black
Spring Material: Steel
Spring Rate: 650
