Icon 71657C - 21-24 GM Tahoe/Suburban/Yukon/Yukon XL 2.5-3.25in Lift Front V.S. 2.5 Series Coilover Kit

Icon 71657C - 21-24 GM Tahoe/Suburban/Yukon/Yukon XL 2.5-3.25in Lift Front V.S. 2.5 Series Coilover Kit

$2,719.03
$2,589.55
(You save $129.48 )

Icon - 71657C

21-23 GM SUV FRONT 2.5 VS RR CDCV COILOVER KIT

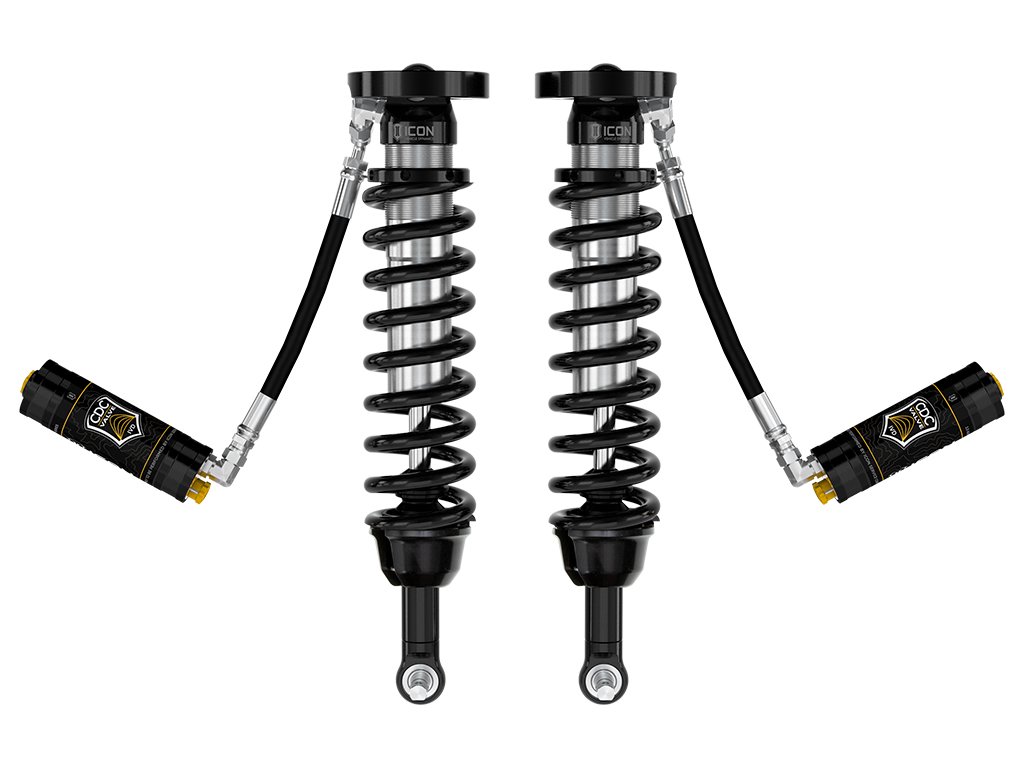

ICON's 2.5 Series coilover shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune.

ICON Vehicle Dynamics V.S. Series 2.5” coilover shocks are an incredible upgrade for the front-end of 2021-2023 Chevrolet Tahoe & Suburban/2021-2023 GMC Yukon & Yukon XL SUVs. Their longer length offers an increase in total front wheel travel compared to stock, for a total of 9” front wheel travel (a 20% increase over stock) while still being compatible with the stock front upper control arms. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 2.5-3.25” of front lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5” diameter shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. When paired with ICON rear 2.5 Series coilover shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your GM SUV.

  • Increased front wheel travel and improved ride quality over stock
  • 6061 Aircraft grade aluminum CNC machined components
  • PTFE lined spherical bearings for extended longevity and minimal deflection
  • High strength alloy CNC machined lower bar pin and application specific mounting hardware
  • Fully rebuildable and re-tunable
  • Vehicle specific tuned for superior shock damping and control
  • Adjustable coilovers yield 1.5-3.5” or 2.5-3.25" of front lift height over stock, depending on vehicle
  • Remote reservoirs maintain cooler operating temperatures during extended off-road use
  • ICON CDCV equipped for 10 settings of external compression damping adjustment
  • ICON engineered coil springs
  • Corrosion resistant CAD plated 2.5” diameter shock bodies
  • 7/8" diameter hardened chrome plated shafts

Active or Passive Suspension: Passive
Add-On Part: 71022 - 21-24 GM RIDE HEIGHT SIMULATOR
Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Add-On Part: 71021 - 19-24 GM ELECTRONIC SHOCK SIMULATOR
Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
Adjustable: No
Adjustable Compression: Yes
Adjustable Damping: Yes
Adjustable Height: Yes
Adjustable Rebound: No
Body Diameter: 2.5
Boot Included: No
Coil Over Springs Included: Yes
Cylinder Color: Silver
Cylinder Finish: Cadmium Plated
Cylinder Material: Steel
Damping Adjustment Type: Manual
Damping Type: Oil
Dust Shield: No
Dust Shield Included: No
Gas Charged: Yes
Grade Type: Performance
Internal Construction Type: Single Tube
Lower Mount Type: BAR PIN
Material: Steel
Material: Aluminum
Maximum Lift: 3.5
Minimum Lift: 0
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: (Sierra) 305/70R17 (Larger tires may fit but fender trimming and modifications will be required)
Recommended Aftermarket Tires: (Silverado) 315/70R17 (Larger tires may fit but fender trimming and modifications will be required)
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5” Backspace / 0mm Offset
Remote Reservoir: Yes
Self-Leveling: No
Service Parts: 257339 - 7/8 SHAFT 13.25 OAL, 9.00 TRAVEL
Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
Service Parts: 611019 - COILOVER HARDWARE KIT PAIR
Service Parts: 252010 - 2.5 IFP REBUILD KIT
Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
Service Parts: 252004 - ECONOMY NEEDLE CHARGING TOOL
Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
Shaft Diameter: 0.875
Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point: Flat on Bar Pin
Spring Color: Black
Spring Material: Steel
Spring Rate Type: Linear
Upper Mount Type: Mounting Plate
Valving Type: Digressive
