Holley - 302-47

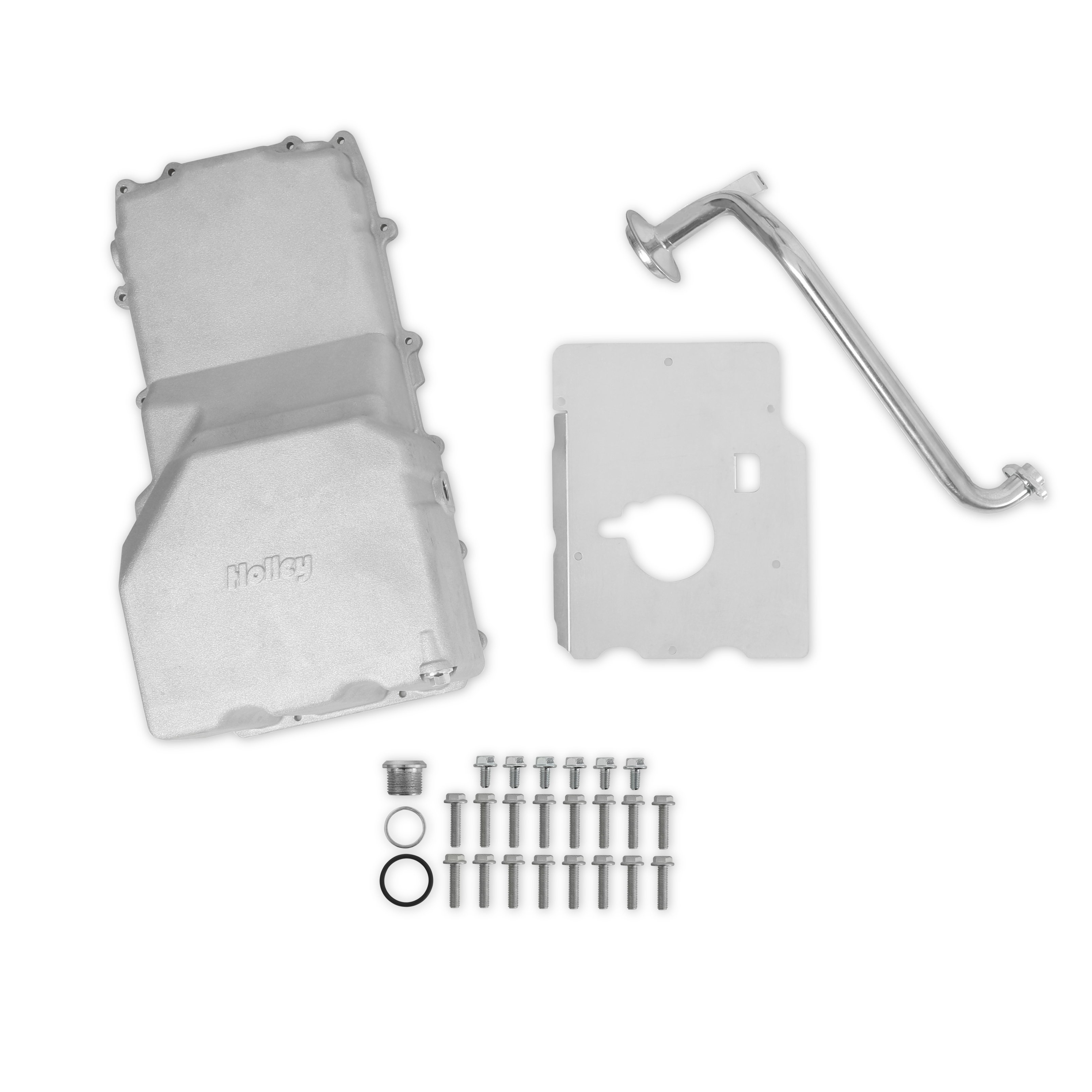

Holley Cast Aluminum Rear Sump Oil Pan - Ford Coyote Swap

Fits Gen 1 and Gen 2 Coyote Engines in 1979-2004 Ford Fox-Body Mustangs

***You may need to make a custom tool from an inexpensive 1/4" drive 10mm deep socket to torque the outer bolt of the pick-up tube assembly flange to the oil pump. Image included in instructions.

• Provides 9 qts of oil capacity to ensure adequate oil supply in all street performance and factory-stock type racing applications.
• Oil pan fits 2011-2017 Gen I and II Coyote engines and provides more header, steering rack, and intake manifold clearance than other Coyote oil pans.
• Provides compatibility with OE Fox-Body/SN95 Mustang clutch release cables
• Installs using stock Coyote engine gasket/baffle assembly to provide factory-like sealing and baffling/windage characteristics.
• Provides compatibility with the stock Gen 1 and 2 Mustang Coyote engine low-oil level sensor
• Proprietary design pick-up tube/O-ring and lower sump baffle plate are included.
• Provides 2 Bosses for drain-back for turbo applications (Unmachined)
• Traditional high-quality cast aluminum appearance with clean exterior styling
