Description
Warranty Information

Description

Holley - 12-364

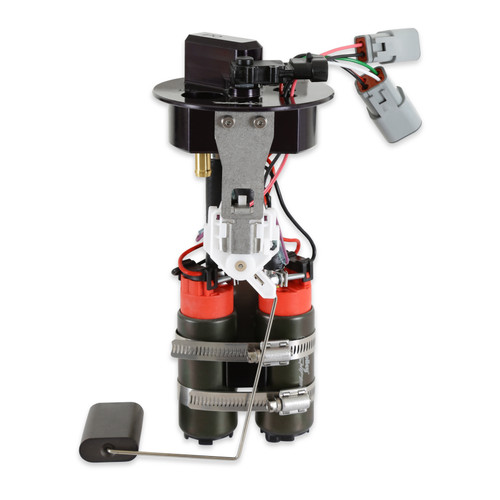

HOLLEY PUMP MODULE SYSTEM - TWIN 340 LPH

Fits 1998-2002 Camaro / Firebird - Twin 340 LPH Pump Module

Part #: 12-365 - Twin 450LPH Pump Module

Anodized and laser-etched billet 6061-T6 flange with 6AN ORB ports for feed, return, and vent
All SKUs compatible with Gasoline AND E85
Comes pre-installed with new pre-calibrated fuel level (33 – 240 Ω) and tank pressure sensors
Includes new gasket to complete installation
A 3 x 11-inch HydraMat is included for each pump
Fits factory plastic tank used in LS1 98-02 Camaro / Firebird or an earlier 4th Gen F-body with fuel tank upgrade
Fittings included allowing connection to the factory 3/8 quick connect feed and return lines
Flanges have been designed to be compatible with feed and return line sizes up to -8AN
Step-down butt connectors included to wire level sensor
Can be connected to factory EVAP system (w/ use of 12-874 and 935056ERL - sold separately)
Kit includes vehicle pigtail harness - All connectors used are DTM style

Average Current Draw: 29

Average Flow Rating: 680

Brand: Holley

Category: Air and Fuel Delivery

Connector Color: Gray

Connector Gender: Female

Connector Quantity: 2

Emission Code: 5

Finish: Anodized Black

Free Flow GPH: 216

Free Flow LPH: 820

Fuel Filter Included: Yes

Fuel Sending Unit Included: Yes

Fuel System: EFI

Fuel Tank Pressure Sensor Included: Yes

Fuel Type: Gasoline/E85 Compatible

Gasket Or Seal Included: Yes

Gasket Or Seal Material: Rubber

Grade Type: Performance

Height: Standard

Housing Material: Aluminum

In Tank or External: In Tank

Inlet Quantity: One

Inlet Size: 6 AN ORB

Inlet Type: 6 AN ORB

Internal Or External Strainer: External

Lock Ring Included: No

Material: Billet Alluminum 6061-T6

Maximum Pressure: 60

Mounting Hardware Included: Yes

Negative Ground: Yes

Outlet Quantity: One

Outlet Size: 6 AN ORB

Outlet Type: 6 AN ORB

part type: Fuel Pump Module Assembly

Product Type: Fuel Pump Module

Pump Type: Electric

Regulator Included: No

Resistance Ohms Empty: 33

Resistance Ohms Full: 240

Single Or Dual Pump: Dual

Sub Category: Fuel Pumps and Related Components

Universal Or Specific Fit: Specific

Voltage: 12

Warning: California Proposition 65

Warranty: Manufacturer's Limited 90 Day Warranty

Wire Quantity: 4
