Holley - 12-1000

Fuel Pressure Regulator - 40-70 psi - In-Line - Damper - 8 AN Female O-Ring Inlet - 8 AN Female O-Ring Outlet - 1/8 in NPT Port - Aluminum - Black Anodized - E85 / Gas / Methanol - Each

REGULATOR/DAMPER, STANDARD RANGE 40-70PSI

Fuel pulse dampers act in tandem with the fuel pressure regulator to further control the fuel pressure in an EFI system. They act to smooth out the pressure pulsations caused by the injectors opening and closing as well as the fuel pump operating. These pulsations happen so quickly that in many cases they can't be identified with an analog gauge but can cause issues with fuel delivery to the engine.

• Engineered to stabilize pressure pulsations caused by the injectors opening, ideal for applications with large fuel injectors and high volume fuel pumps
• Compatible with any fuel -- full anodized billet aluminum construction with stainless steel springs and fluorosilicone diaphragm

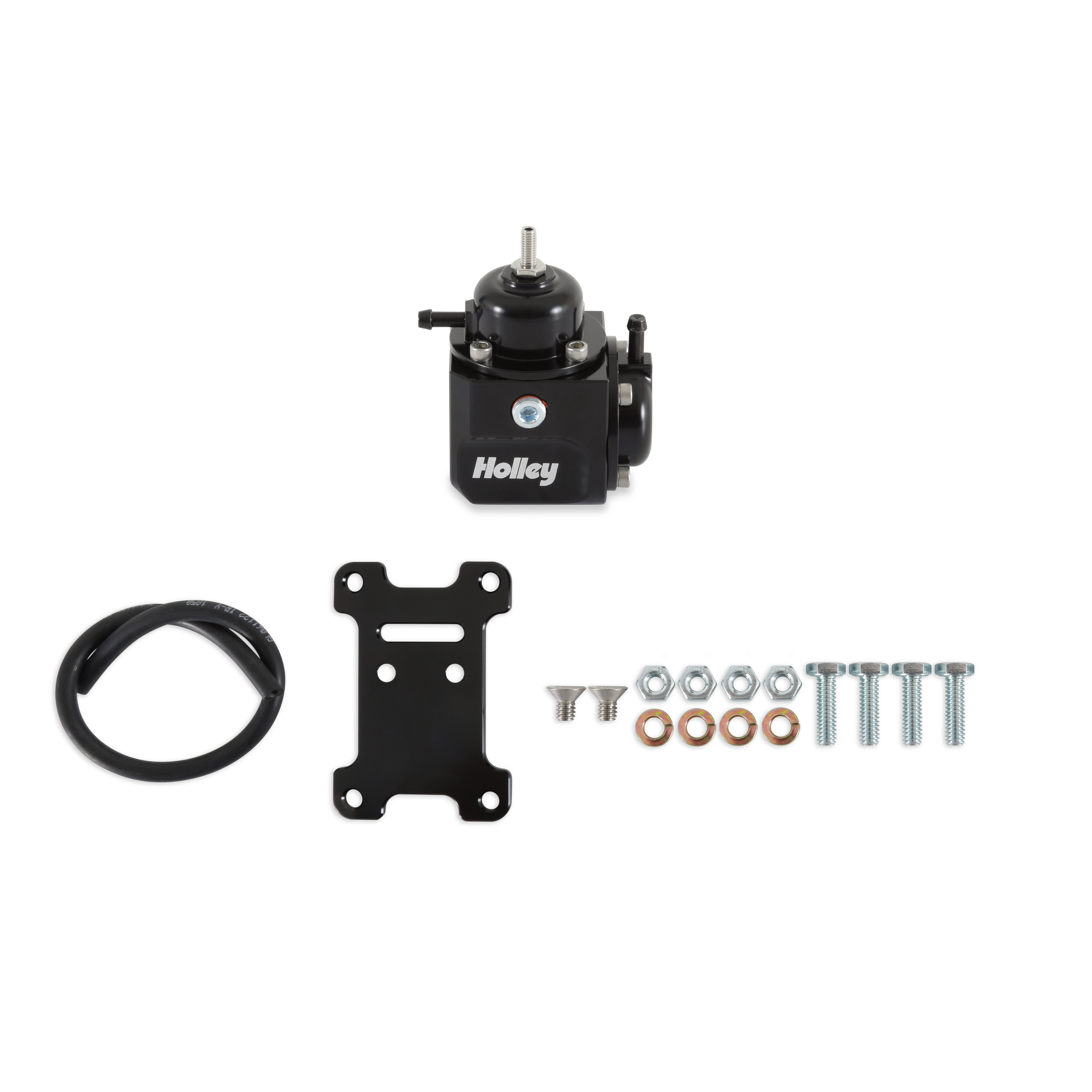

• Fittings included for damper/regulator’s and direct mount dampers
• 1/8" NPT port on body of damper/regulators and in-line dampers for easy installation of mechanical pressure gauge or pressure transducer

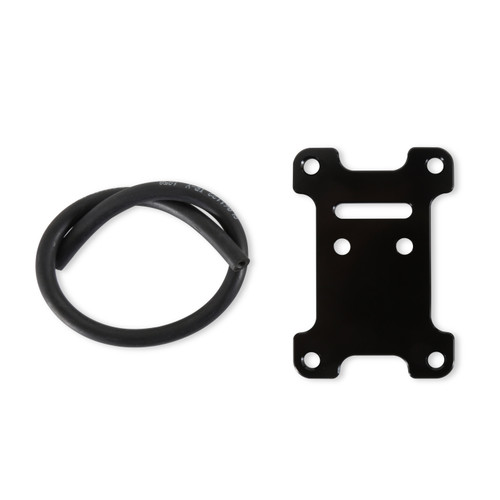

• Vacuum fitting and one foot of hose included with all dampers for vacuum referencing
• Assembled and tested in the USA
