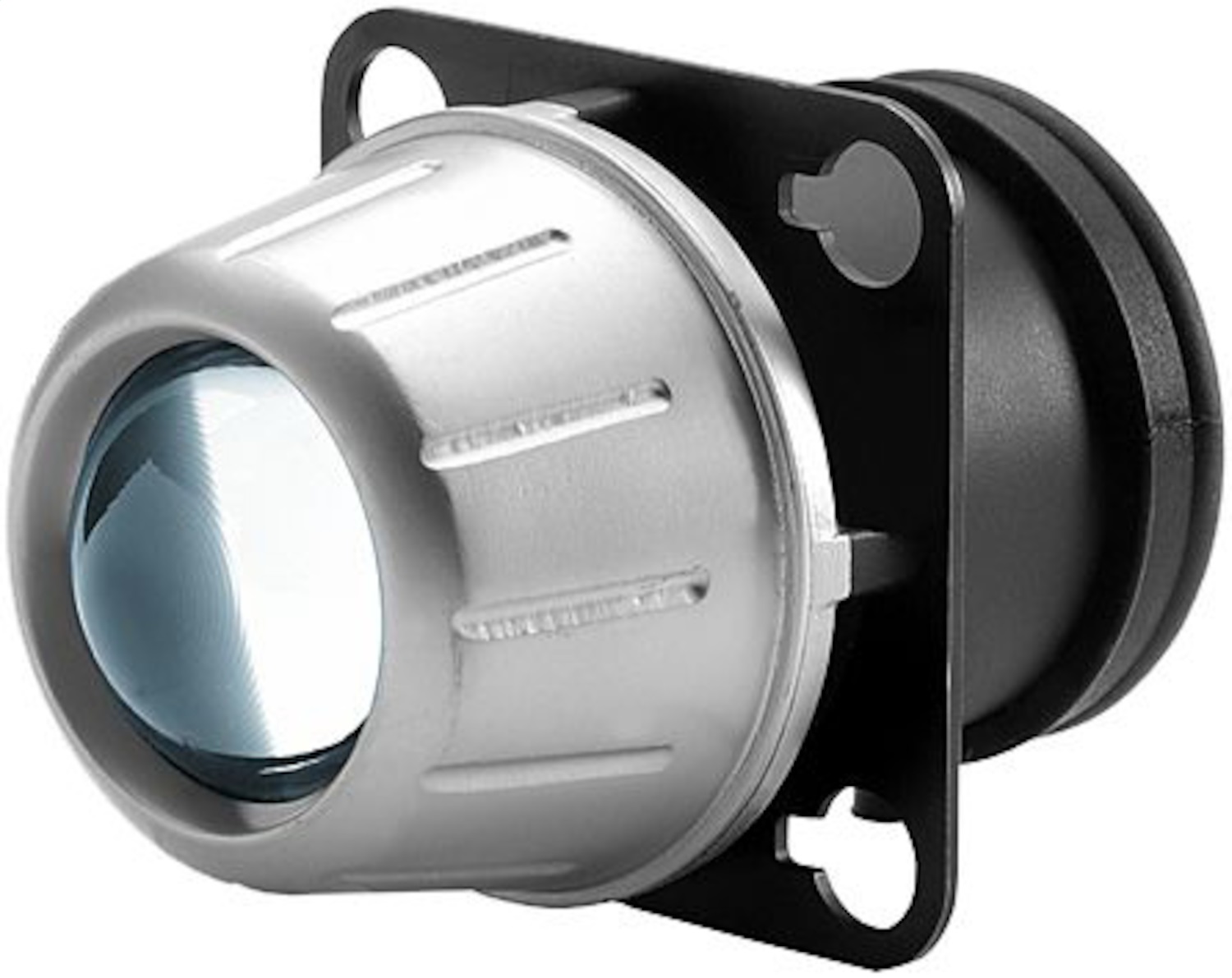

Hella 009071081 - Micro DE Premium Halogen H7 Low Beam 12V SAE Lo Headlamp w/ Bulb and Stone Shield
Hella 009071081 - Micro DE Premium Halogen H7 Low Beam 12V SAE Lo Headlamp w/ Bulb and Stone Shield

Hella 009071081 - Micro DE Premium Halogen H7 Low Beam 12V SAE Lo Headlamp w/ Bulb and Stone Shield

Write a Review
$217.34
$172.99
(You save $44.35 )
SKU: HLA-009071081
UPC: 760687075714
Stock: 0
Vendor: Premier - CSR
SpecialOrder: True
CarbRejected: False
CouponIsOn: False
StockEta: N/A
ProfitMargin: 8.100
CostOfItem: 146.06
ItemPopularity: 0
MapPrice: 156.56
RetailPrice: 217.34
EbayAllowed: False
WarehouseStock: 0
ShippingGroups: ["Flatrate_Turn14"]
EbayPrice: 173.99
ShipperHq: {"shipping-groups":["Premier","FreeShipping","Flatrate_Premier"],"shipping-origins":[],"shipping-dimensional-rules":[]}
IsReturnable: True
EbayPriority: 0

Out of stock

  • screenshot-2024-06-06-013938.png
Hella 009071081 - Micro DE Premium Halogen H7 Low Beam 12V SAE Lo Headlamp w/ Bulb and Stone Shield

Hella 009071081 - Micro DE Premium Halogen H7 Low Beam 12V SAE Lo Headlamp w/ Bulb and Stone Shield

$217.34
$172.99
(You save $44.35 )
Description

Hella - 009071081

HEADLAMP DE-US A MG12 1BL

Headlight Assembly

This headlamp series has been developed to provide top levels of light output with compact dimensions. A solution for a practical assembly was also important as was a distinctive appearance. We use lens systems in the low beam headlamp and fog lamp. The low beam has a pattern-free lens, while the fog lamp has the familiar structure of the Micro DE headlamp. The low beam and the fog lamp are realised in halogen design.

  • Compact Modular 50mm System Design
  • Includes 3 Point Mounting Frame
  • Adjustable From The Front And Rear Of The Lamp
  • Modular Fog Lamp Also Available

Mounting Type: Fitting
Fastening Type: Three-Point Mounting
Lamp Type: H7
Light Design: Halogen
Voltage [V]: 12
Fitting Position: Left
Width [mm]: 134
Width [in]: 5.28
Height [mm]: 80
Height [in]: 3.15
Depth [mm]: 129
Depth [in]: 5.08
Light Function: with Low Beam
Number of light functions: 1
Protection Type (IP Code): IP5KX
Test Mark: SAE
Registration Type: SAE approved
Plug Type: Blade Terminal
Left-hand/Right-hand Traffic: for right-hand traffic
Shape: Round
Housing Color: black
Illuminated Area [in]: 1.97
Illuminated Area [mm]: 50
Connector type: Blade Termils
Lens Color: transparent
Supplementary Article/Supplementary Info: with Bulb
Assy./disassy. by qualified personnel required!: .
Street Legal: Yes
Bulb Color: White
Bulbs Included: Yes
Bulb Type: H7
Mounting Hardware Included: No
Bulb Technology: Halogen
