Hella 005993102
Write a Review
Write a Review
Hella
Hella 005993102
$24.19
$21.99
(You save
$2.20
)
SKU:
HLA-005993102
UPC:
04082300179392
Stock:
0
Vendor:
Premier - CSR
SpecialOrder:
True
CarbRejected:
False
CouponIsOn:
False
StockEta:
N/A
ProfitMargin:
8.000
CostOfItem:
7.23
ItemPopularity:
0
MapPrice:
9.13
RetailPrice:
10.77
EbayAllowed:
False
WarehouseStock:
0
ShippingGroups:
["Flatrate_Premier"]
EbayPrice:
23.99
ShipperHq:
{"shipping-groups":["Premier","FreeShipping","Flatrate_Premier"],"shipping-origins":[],"shipping-dimensional-rules":[]}
IsReturnable:
True
EbayPriority:
0
Hella 005993102
$24.19
$21.99
(You save
$2.20
)

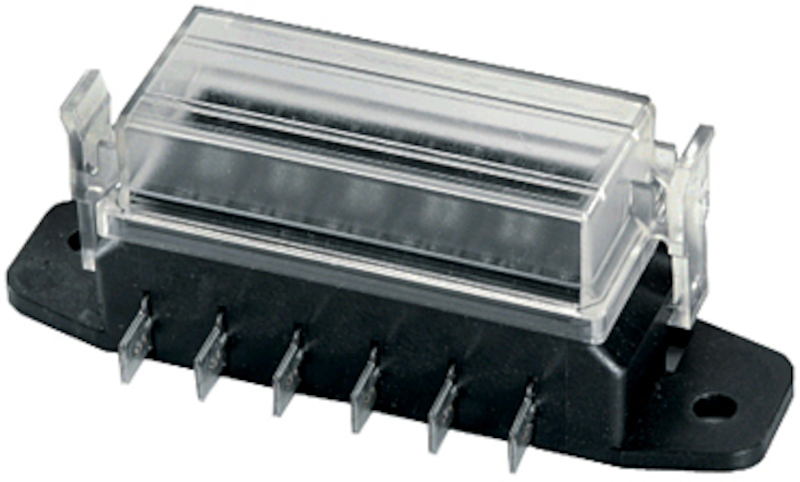

Hella - 005993102
If a single fuse holder is not sufficient to integrate an additional device into the electrical system, or if several Functions are to be added at once, the use of a fuse box is an option. The bundling of the backup Functions at a central Point creates both an overview and ease of maintenance. As with the fuse holders, there are numerous variants for each fuse Type, differing in shape, Color, size, contacting and protection class. The fuse box sets are modular in design, which means that the fuse box can be individually assembled to suit the application.
- Wide Range of products for numerous applications
Height [mm]: 36.5
Housing Color: black
Housing material: PA 66 GF 30
Length [mm]: 100
Length [in]: 3.94
Number of connectors: 12
Protection Type (IP Code): IP23
Quantity: 10
Socket Width [mm]: 6.3
Temperature range from [°F]: -22.00
Temperature range from [°C]: -30
Temperature range to [°C]: +85
Temperature range to [°F]: 185.00
Voltage to [V]: 32
Assy./disassy. by qualified personnel required!: .
Number of pins: 6
Bolt Distance [in]: 3.35
Bolt Distance [mm]: 85
Color: transparent
Plug Type: Blade Terminal
Current Strength [A]: 80
Plug Type ID: 12 x side (6.3x0.8)
Contact surface: Tin-plated
Depth [mm]: 45.2
Fuse Type: for ATO fuse
