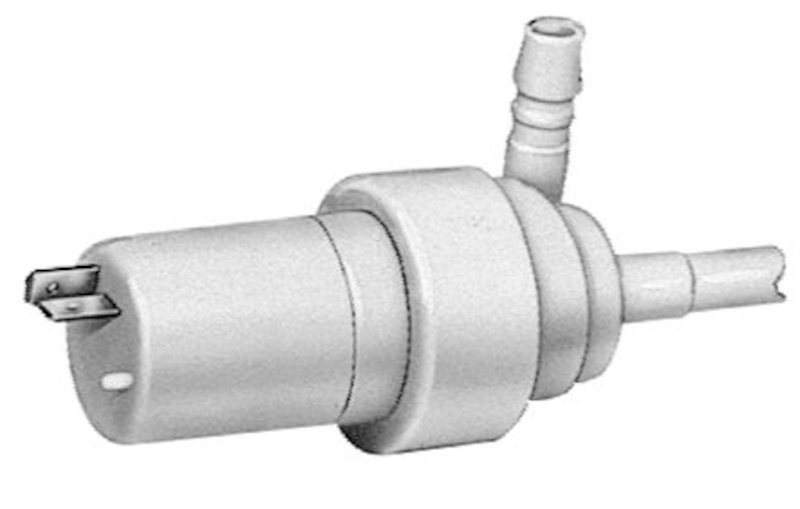

Hella 004764021 - 12V Windshield Washer Pump
Hella - 004764021
12V Windshield Washer Pump
HELLA washer water pumps have been developed for two different applications: for windshield washers and for headLight washers. Pumps for windshield cleaning systems are required for on-demand cleaning of windshields. Pumps for headLight washers require more energy than pumps for windshield washers because the headLights are cleaned with a water jet under higher Pressure. To adapt to the piping system, a connection is used that enables simple, quick and safe adjustment of the hose arRangement. Thanks to its special know-how and high quality standards, HELLA is a leader in the segment of windshield and headLight cleaning systems. Structure and Function: The windshield washer pump has a water intake and 2x water outlets that can be used alternately. Depending on the direction of rotation of the DC motor, one or the other water outlet is used. The direction of rotation of the DC motor depends on the polarity of the connections. The pump can be controlled via the Front Control Module (FCM), for example.
Operating Mode: Electric
Voltage [V]: 12
Pressure [bar]: 2.5
Diameter 1 [mm]: 35
Diameter 2 [mm]: 46
Pressure hose connector diameter [mm]: 11
Suction pipe connector diameter [mm]: 10.5
Flow rate [l/h]: 432
Pump Type: Mono Pump
Assy./disassy. by qualified personnel required!: .
[{"BaseVehicleId":69,"SubModelId":55},{"BaseVehicleId":70,"SubModelId":57},{"BaseVehicleId":70,"SubModelId":55},{"BaseVehicleId":71,"SubModelId":57},{"BaseVehicleId":71,"SubModelId":55},{"BaseVehicleId":72,"SubModelId":57},{"BaseVehicleId":72,"SubModelId":55},{"BaseVehicleId":73,"SubModelId":57},{"BaseVehicleId":73,"SubModelId":60},{"BaseVehicleId":73,"SubModelId":55},{"BaseVehicleId":73,"SubModelId":59},{"BaseVehicleId":74,"SubModelId":59},{"BaseVehicleId":74,"SubModelId":61},{"BaseVehicleId":75,"SubModelId":67},{"BaseVehicleId":75,"SubModelId":59},{"BaseVehicleId":75,"SubModelId":61},{"BaseVehicleId":76,"SubModelId":67},{"BaseVehicleId":76,"SubModelId":59},{"BaseVehicleId":76,"SubModelId":61},{"BaseVehicleId":77,"SubModelId":65},{"BaseVehicleId":77,"SubModelId":62},{"BaseVehicleId":77,"SubModelId":59},{"BaseVehicleId":77,"SubModelId":61},{"BaseVehicleId":78,"SubModelId":65},{"BaseVehicleId":78,"SubModelId":60},{"BaseVehicleId":78,"SubModelId":62},{"BaseVehicleId":78,"SubModelId":59},{"BaseVehicleId":78,"SubModelId":61},{"BaseVehicleId":97,"SubModelId":1},{"BaseVehicleId":98,"SubModelId":1},{"BaseVehicleId":106,"SubModelId":1},{"BaseVehicleId":107,"SubModelId":1},{"BaseVehicleId":108,"SubModelId":77},{"BaseVehicleId":109,"SubModelId":77},{"BaseVehicleId":110,"SubModelId":77},{"BaseVehicleId":111,"SubModelId":39},{"BaseVehicleId":111,"SubModelId":20},{"BaseVehicleId":112,"SubModelId":39},{"BaseVehicleId":112,"SubModelId":20},{"BaseVehicleId":113,"SubModelId":78},{"BaseVehicleId":114,"SubModelId":78},{"BaseVehicleId":115,"SubModelId":78},{"BaseVehicleId":120,"SubModelId":20},{"BaseVehicleId":121,"SubModelId":67},{"BaseVehicleId":121,"SubModelId":20},{"BaseVehicleId":122,"SubModelId":67},{"BaseVehicleId":122,"SubModelId":1},{"BaseVehicleId":122,"SubModelId":20,"EngineBaseId":803},{"BaseVehicleId":123,"SubModelId":67},{"BaseVehicleId":123,"SubModelId":963},{"BaseVehicleId":123,"SubModelId":1},{"BaseVehicleId":123,"SubModelId":20,"EngineBaseId":803},{"BaseVehicleId":124,"SubModelId":67},{"BaseVehicleId":124,"SubModelId":83},{"BaseVehicleId":124,"SubModelId":20},{"BaseVehicleId":125,"SubModelId":83},{"BaseVehicleId":126,"SubModelId":83}]
Related Products
Sold out
Hella 004223031 - 12V Windshield Washer Pump
Hella - 00422303112V Windshield Washer PumpThe proportion of electronics in vehicles has increased continuously in recent years. A development in which HELLA has long played a special role as an...
$52.79
$47.99
Sold out

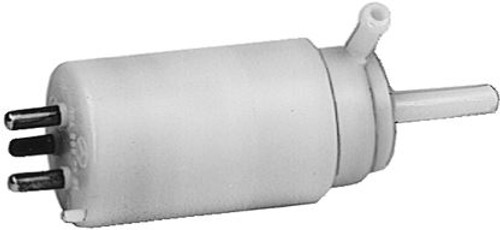

Hella 005496011 - 12V Windshield Washer Pump - Mercedes Benz
