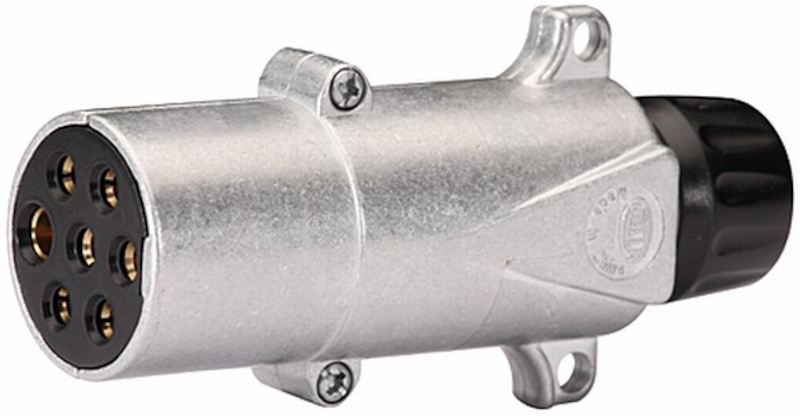

Hella - 003831001
The 7-pin 24 V plug-in system according to ISO 1185 / ISO 3731 is currently the most widely used system for the electrical connection between towing vehicle and trailer or tractor and semi-trailer in the commercial vehicle sector. The system is primarily used for applications with average requirements. It consists of a standard connector, Type N, according to ISO 1185 and an additional connector, Type S, according to ISO 3731. The additional system differs from the standard system by its white housing, contact inserts and non-interchangeable contact arRangement.
- Original equipment quality
Supplementary Article/Info 2: with Strain Relief
Voltage [V]: 24
Color: silver
Capacity at 24V: 15A
DIN/ISO: 1185
Connector/Clamp: with cable gland
Material: Metal
Cross Section [mm²] from: 1.5
Cross Section [mm²] to: 2.5
Number of pins: 7
Plug Type: Screw Contact
Current Strength from [A]: 15
Current strength to [A]: 20
Quantity: 10
Temperature range from [°C]: -30
Temperature range from [°F]: -22.00
Temperature range to [°C]: +75
Temperature range to [°F]: 167.00
Assy./disassy. by qualified personnel required!: .
