Hella 002768431 - Horn Disc 24V 400Hz Htone (B36)
Hella 002768431 - Horn Disc 24V 400Hz Htone (B36)
Hella 002768431 - Horn Disc 24V 400Hz Htone (B36)
Hella 002768431 - Horn Disc 24V 400Hz Htone (B36)

Hella 002768431 - Horn Disc 24V 400Hz Htone (B36)

Write a Review
$38.49
$34.99
(You save $3.50 )
SKU: HLA-002768431
UPC: 04082300052640
Stock: 0
Vendor: Premier - CSR
SpecialOrder: True
CarbRejected: False
CouponIsOn: False
StockEta: N/A
ProfitMargin: 10.200
CostOfItem: 18.42
ItemPopularity: 0
MapPrice: 19.74
RetailPrice: 27.40
EbayAllowed: False
WarehouseStock: 0
ShippingGroups: ["Calculated"]
EbayPrice: 35.99
ShipperHq: {"shipping-groups":["Premier","FreeShipping","Flatrate_Premier"],"shipping-origins":[],"shipping-dimensional-rules":[]}
IsReturnable: True
EbayPriority: 0

Out of stock

  • screenshot-2024-06-06-013938.png
Hella 002768431 - Horn Disc 24V 400Hz Htone (B36)

Hella 002768431 - Horn Disc 24V 400Hz Htone (B36)

$38.49
$34.99
(You save $3.50 )
Description

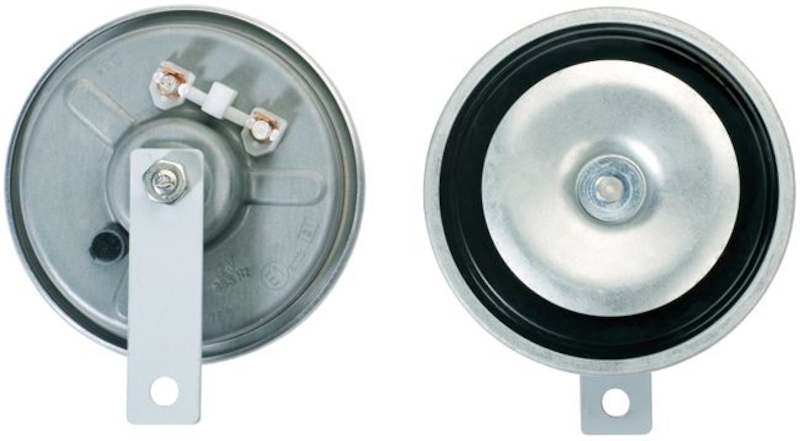

Hella - 002768431

HORN 24V 400HZ B36 3BA

The HELLA B36 Series Disc Horn is engineered for durability and performance, providing a reliable safety feature for any vehicle. These disc horns are galvanized to resist corrosion and built to last, with a sound frequency of 335 Hz (Low-Tone), or 400 Hz (High-Tone), ensuring precise and robust auditory signals in all driving conditions. The sleek, compact design allows for versatile installation options, making it an excellent choice for drivers who need a powerful horn without compromising space. Whether navigating busy city streets or rural roads, the HELLA B36 Series enhances your vehicle's audible presence, ensuring you are heard when it matters most. These horns guarantee your highest safety and the attention needed in critical situations. HELLA horns guarantee the best Functionality, optimum fit, and long-lasting customer satisfaction.

  • With moisture protection

Frequency Range [Hz]: 400
Power Consumption [W]: 72
Voltage [V]: 24
Depth [mm]: 53
Power consumption [A]: 3
Supplementary Article/Info 2: with E quality Seal
Fulfils ECE norm: R28
Registration Type: ECE approved
Test Mark: ECE
Housing Color: grey/black
Protection Type (IP Code): X4K
Quantity: 1
Temperature range from [°C]: -40
Operating Mode: Electric
Overall Height [in]: 5.08
Overall Height [mm]: 129
Diameter [mm]: 112
Depth [in]: 2.09
Temperature range from [°F]: -40.00
Sound Level [dB(A)]: 116
Temperature range to [°F]: 140.00
Signal: High Tone
Assy./disassy. by qualified personnel required!: .
Bracket: M10 Mounting Screw
Homologation: ECE-R28
Temperature range to [°C]: 90
Diameter [in]: 4.40
Measurements [cm]: 5.3 x 12.9
Mounting Type: With 6.3 mm Blade Terminal Contacts, Open
Protection: IP54
Single Includes: (1) High-Tone Disc Horn, Mounting Brackets, Step-by-Step Mounting Instructions
Frequency range to [Hz]: 400
Diameter [cm]: 11.2
