Sold out

Hella 001944011

Write a Review
$25.29
$22.99
(You save $2.30 )
SKU: HLA-001944011
UPC: 04082300178586
Stock: 0
Vendor: Premier - CSR
SpecialOrder: True
CarbRejected: False
CouponIsOn: False
StockEta: N/A
ProfitMargin: 9.700
CostOfItem: 7.77
ItemPopularity: 0
MapPrice: 9.81
RetailPrice: 11.58
EbayAllowed: False
WarehouseStock: 0
ShippingGroups: ["Flatrate_Premier"]
EbayPrice: 29.99
ShipperHq: {"shipping-groups":["Premier","FreeShipping","Flatrate_Premier"],"shipping-origins":[],"shipping-dimensional-rules":[]}
IsReturnable: True
EbayPriority: 0

Out of stock

  • screenshot-2024-06-06-013938.png
Hella 001944011

Hella 001944011

$25.29
$22.99
(You save $2.30 )

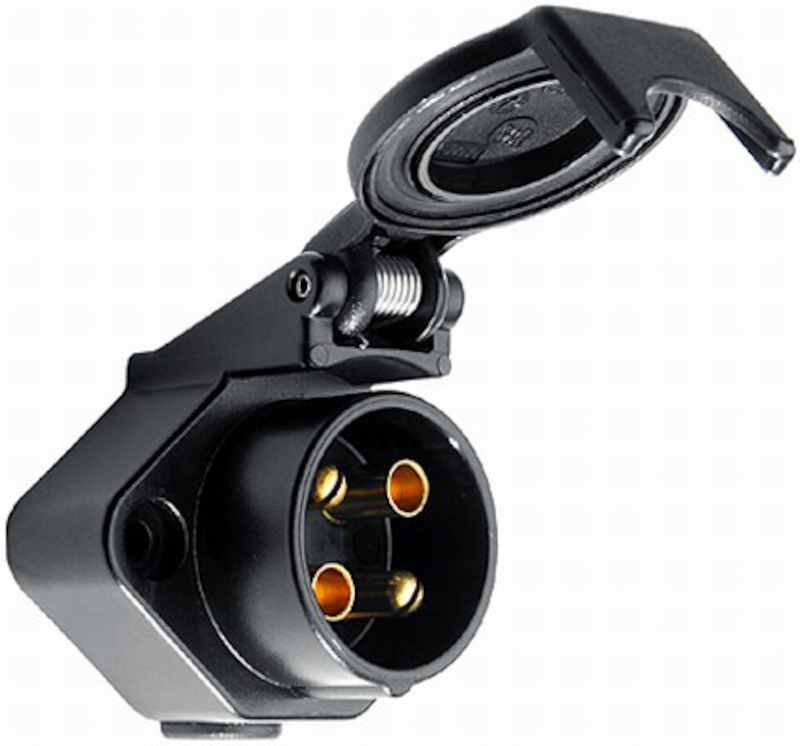

Hella - 001944011

The 4-pole plug-in system according to ISO 72575 is used for the transmission of additional Functions between tractor and trailer.

  • Original equipment quality

Voltage [V]: 24
Voltage from [V]: 6
Capacity at 24V: 16A
Voltage to [V]: 42
Color: Black
Protection Type (IP Code): IP5K
Number of pins: 4
Plug Type: Screw Contact
Cross Section [mm²] from: 1.5
Cross Section [mm²] to: 2.5
Current Strength from [A]: 16
Current strength to [A]: 25
Temperature range from [°C]: -40
Temperature range from [°F]: -40.00
Temperature range to [°F]: 185.00
Temperature range to [°C]: +85
DIN/ISO: 72575
Depth [in]: 1.57
Depth [mm]: 40
Bore Ø [mm]: 4.3
Number of bores: 2
Height [mm]: 59.5
Width [mm]: 61
Width [in]: 2.40
Mounting Type: Screw Connection
Supplementary Article/Info 2: with lid
Assy./disassy. by qualified personnel required!: .
Quantity: 1
