Hedman Hedders 78056 - HTC COATED HEADERS; 1-5/8 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN
Write a Review
Write a Review
Hedman Hedders
Hedman Hedders 78056 - HTC COATED HEADERS; 1-5/8 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN
$1,744.40
$679.99
(You save
$1,064.41
)
SKU:
FBLG-78056
UPC:
732611780568
Stock:
1
Vendor:
Motor State - CSR
SpecialOrder:
False
CarbRejected:
False
CouponIsOn:
False
StockEta:
N/A
ProfitMargin:
10.300
CostOfItem:
599.99
ItemPopularity:
0
MapPrice:
0
RetailPrice:
1744.40
EbayAllowed:
False
WarehouseStock:
1
ShippingGroups:
["Flatrate_Motor State"]
EbayPrice:
673.99
ShipperHq:
{"shipping-groups":["Motor State","FreeShipping","Flatrate_Motor State"],"shipping-origins":[],"shipping-dimensional-rules":[]}
IsReturnable:
True
EbayPriority:
0
Hedman Hedders 78056 - HTC COATED HEADERS; 1-5/8 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN
$1,744.40
$679.99
(You save
$1,064.41
)
Hedman Hedders - 78056
Headers - Street - 1.625 in Primary - 3 in Collector - Gaskets / Hardware Included - Steel - Metallic Ceramic - Small Block Mopar - Mopar A-Body / B-Body / E-Body 1967-80 - Pair

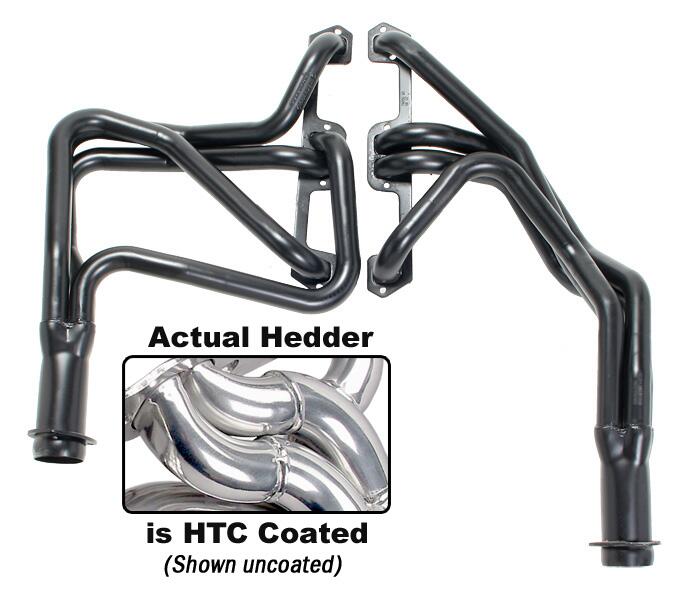

HTC Coated Headers; 1-5/8 in. Tube Dia.; 3 in. Coll.; FULL LENGTH Design
Hedman Hedders has been manufacturing quality headers in the USA since 1954, and classic musclecars is their specialty. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your SB Chrylser's exhaust system to bolt up, even if it is not perfectly aligned with the header collectors.
These HTC coated, LONG-TUBE headers fit a variety of 1967-1974 MOPAR passenger cars powered by Chrysler'S 273-360 LA engine (inline port port pattern only). Included in this list of popular models are 1970-74 Dodge Challenger, '67-74 Plymouth Barracuda, '66-74 Dodge Charger, '68-74 Plymouth Roadrunner 67-76 Dart, Duster, Super Bee and Valiant (check the application listings for exact fitment). These headers fit both manual and automatic transmission models, however, modification to the shift linkage may be required. The smooth 1-5/8 in. tube design provides ample exhaust flow to let your Chrysler 273-360 (LA) engine produce additional horsepower and torque.
Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.
Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty. These headers have a high temperature, POLISHED-SILVER ceramic finish that resists corrosion, and can withstand temperatures up to 1400 degree F. This finish is covered by a 5-year factory warranty, in addition to Hedman's standard lifetime header warranty.
- Handcrafted, Mild Steel Construction.
- Long Tube Header Design Provides Excellent Top-End Horsepower and Torque.
- Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
- Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
- Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
- Proud To Say, Made In The USA, Since 1954!
Tube Diameter: 1-5/8 in.
Reducers Included: Yes
with EGR: No
Weld-Up: No
Tuned: No
Bolts/Studs Included: Yes
Catalytic Converter(s) Included: No
Collector Bolts Included: Yes
Crossover Pipe Included: No
Gasket Or Seal Included: Yes
Header Fasteners Included: Yes
Installation Hardware Included: Yes
Motor Mounts Included: No
Mounting Hardware Included: Yes
Y-Pipe Included: No
Variations: 78050
Quantity: Sold as a pair.
Primary Tube Gauge: 16g
Primary Tube Diameter (in): 1.625 in.
Package Contents: Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware
Header Material: Mild Steel
Header Finish: HTC Polished Silver Ceramic-Metallic
Cylinder Head Port Shape: Rectangle
Cylinder Head: Stock Profile Heads
Header Construction: MILD STEEL- Standard-Duty
Replacement Gasket: 27970
Replacement Head Flange Gasket: 27970
with A.I.R. System: No
Tube Size: 1-5/8 in.
Tube Style: Long Tubes
Contents: headers, gaskets (when applicable), 3-bolt exhaust adapters, hardware
Air Conditioning: Yes
Automatic Transmission - Column: Yes
Automatic Transmission - Floor: Yes
Manual Transmission - Column: Yes
Manual Transmission - Floor: Yes
Power Steering: Yes
Collector Attachment: 3 in.
Collector Diameter: 3 in.
Collector Size: 3 in.
Collector Style: BALL and SOCKET Style (Gasketless)
Reducer Outlet Size: 2-1/2 in.
Exhaust System Dia: 2-1/2 in.
E.O. #: No
Tube Material Thickness: 16g
Emissions Notes: Not Legal For Street Use on '75-Later Model Years! Legal for off-road use only.
Engine Notes: Chrysler LA Engines Only (inline port pattern). Not For A318 Engine
Finish: HTC Polished Silver Ceramic-Metallic
Finish Type: HTC SILVER (polished) Ceramic-metallic Coating
Flange Style: Standard
Flange Thickness: 0.3125 in.
Header Port Shape: Rectangle
Header Style: Long Tube
Port Shape: Rectangle
Material: Mild Steel
Tube Design: Standard
Tube Length: Long Tubes
