Hedman Hedders 69570 - STANDARD UNCOATED HEADERS; 1-3/4 IN. TUBE DIA.; STOCK COLL.; SHORTY DESIGN

Hedman Hedders 69570 - STANDARD UNCOATED HEADERS; 1-3/4 IN. TUBE DIA.; STOCK COLL.; SHORTY DESIGN

$1,433.11
$577.99
(You save $855.12 )
Description

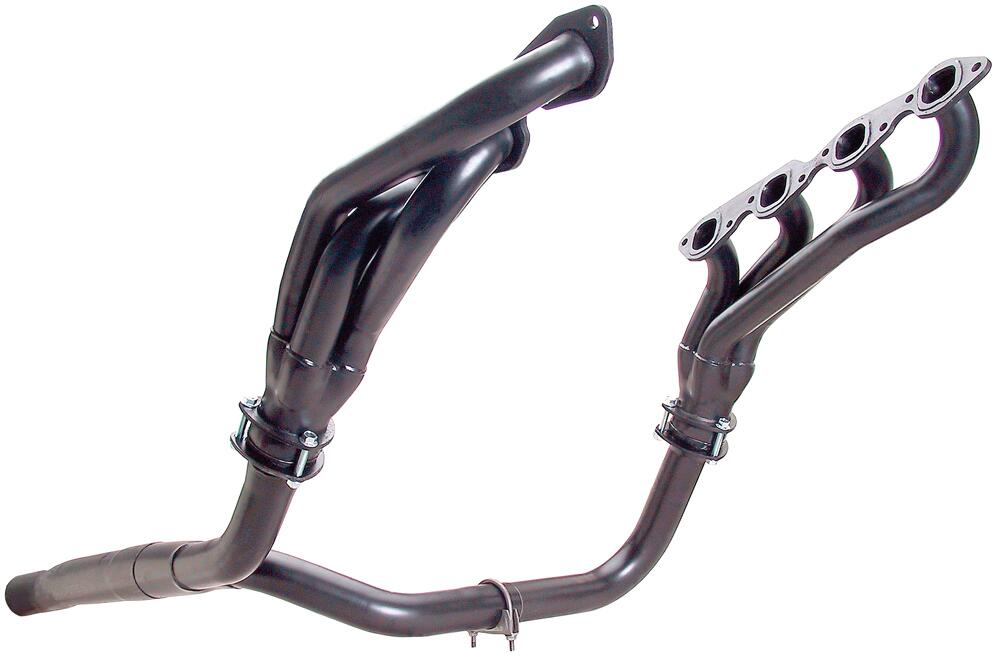

Hedman Hedders - 69570

Headers - Street - 1.75 in Primary - Stock Collector Flange - Y-Pipe Included - Gaskets / Hardware Included - Steel - Black Paint - Big Block Chevy - GM Fullsize SUV / Truck 1988-95 - Kit

Standard-Duty, Uncoated 50-State Legal Mid-Length Headers without A.I.R. For 1988-95 CHEVY/GMC 2WD/4WD 1 Ton Trucks and SUVs with 7.4L Engine (Engine OFFSET to Passenger Side); 1-3/4 in. Long Tubes; 3 in. Ball/Socket Collector

  • Specially Designed To Provide Additional Clearance For Larger, Close-Ratio (Quick Ratio) Steering Boxes
  • The Mild Steel, Mid-Length Tube Header Design Provides Significantly More Low and Mid-range Power than Cast Manifolds, and Provide Better Ground Clearance And Component Compatibility Than Long Tube Headers.
  • Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
  • Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
  • Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
  • Proud To Say, Made In The USA, Since 1954!

Flange Style: Standard
Flange Thickness: 0.375 in.
Header Port Shape: Square
Header Style: Mid-Length Tube
Notes: 92-95 GM 1/2, 3/4, 1 Ton Truck/SUV 2-4WD
Port Shape: Square
Material: Mild Steel
Tube Design: Standard
Tube Length: Mid-Length Tubes
Tube Diameter: 1-3/4 in.
Y-Pipe Included: Yes
with EGR: No
Weld-Up: No
Tuned: No
Bolts/Studs Included: Yes
Catalytic Converter(s) Included: No
Crossover Pipe Included: Yes
Gasket Or Seal Included: Yes
Header Fasteners Included: Yes
Installation Hardware Included: Yes
Motor Mounts Included: No
Mounting Hardware Included: Yes
Reducers Included: No
Crossover Pipe Style: Y-pipe
Variations: 69576
Quantity: Sold as a kit.
Primary Tube Gauge: 16g
Primary Tube Diameter (in): 1.75 in.
Package Contents: Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware
Header Material: Mild Steel
Header Finish: Uncoated
Cylinder Head Port Shape: Square
Cylinder Head: Stock Profile Heads
Header Construction: MILD STEEL- Standard-Duty
Replacement Gasket: 27550
Replacement Head Flange Gasket: 27550
with A.I.R. System: No
Tube Size: 1-3/4 in.
Tube Style: Mid-Length
Exhaust System Dia: 3 in.
Air Conditioning: Yes
Automatic Transmission - Column: Yes
Automatic Transmission - Floor: Yes
Manual Transmission - Column: No
Manual Transmission - Floor: Yes
Power Steering: Yes
Footnotes: 127. Late Model Chassis. ENGINE OFFSET to passenger side of vehicle.
Collector Attachment: Stock
Collector Diameter: Stock
Collector Size: Stock
Collector Style: BALL and SOCKET Style (Gasketless)
Reducer Outlet Size: Factory hookup
Contents: headers, gaskets (when applicable), 3-bolt exhaust adapters, hardware
Tube Material Thickness: 16g
E.O. #: Yes
Emissions Notes: EO# D167-29 (click here for covered vehicles in document on ARB.CA.GOV website)
Finish: Uncoated
Finish Type: UNCOATED Mild Steel! Shipped with Temporary Paint.

Warranty Information
