Hedman Hedders 69110

Write a Review
$873.51
$338.99
(You save $534.52 )
SKU: FBLG-69110
UPC: 732611691109
Stock: 0
Vendor: Motor State - CSR
SpecialOrder: False
CarbRejected: False
CouponIsOn: True
StockEta: N/A
ProfitMargin: 12.700
CostOfItem: 285.88
ItemPopularity: 0
MapPrice: 0
RetailPrice: 873.51
EbayAllowed: False
WarehouseStock: 0
ShippingGroups: ["Flatrate_Motor State"]
EbayPrice: 338.99
ShipperHq: {"shipping-groups":["Motor State","FreeShipping","Flatrate_Motor State"],"shipping-origins":[],"shipping-dimensional-rules":[]}
IsReturnable: True
EbayPriority: 0

Out of stock

  • screenshot-2024-06-06-013938.png
Hedman Hedders 69110

Hedman Hedders 69110

$873.51
$338.99
(You save $534.52 )

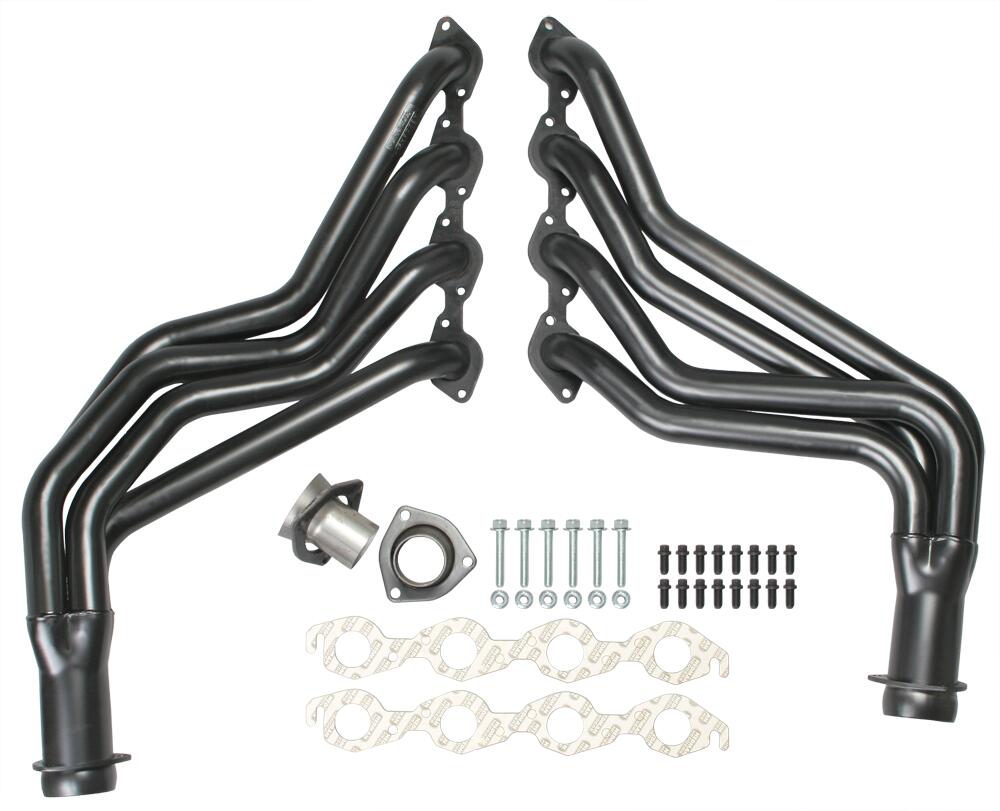

Hedman Hedders - 69110

Headers - Street - 1.75 in Primary - 3 in Collector - Gaskets / Hardware Included - Steel - Black Paint - Big Block Chevy - GM Fullsize SUV / Truck 1967-91 - Pair

Standard-Duty, Uncoated Long Tube Headers For 1967-87 CHEVY/GMC 2WD & 4WD 1/2 to 1 Ton Pick-Up Truck, Blazer and SUV with 396-502 BB Chevy (Centered Engine Chassis Only); 1-3/4 in. Long Tubes; 3 in. Ball/Socket Collector

Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing long and MID-LENGTH tube headers for Chevy trucks for nearly as long. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your Big Block Chevy exhaust system to bolt up, even if it is not perfectly aligned with the header collectors.

These uncoated, LONG-TUBE headers are one of Hedman's best selling Chevy truck headers. They fit a wide range of early to mid-year 2WD and 4WD Chevy Trucks and SUVs, powered by a Big Block Chevy engine. Included in this header's long list of applications is 1968-1991 Chevy/GMC 1/2 to 1 Ton 2WD, or 1/2 and 3/4 ton 4WD trucks, Blazers and Suburbans (check the application listings for exact fitment). The smooth 1-3/4 in. tube design provides ample exhaust flow to let your truck's 396-502 BB Chevy engine breathe easy, and produce maximum horsepower and torque.

These headers are uncoated, and ship from the factory with a temporary black paint that will burn off when submitted to normal operating temperatures. For protection against the element and lower underhood temperatures, these headers are also available with a silver or black ceramic-metallic finish.

Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.

Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty.

  • Handcrafted, Mild Steel Construction.
  • Long Tube Header Design Provides Excellent Top-End Horsepower and Torque.
  • Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
  • Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
  • Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
  • Proud To Say, Made In The USA, Since 1954!

Tube Diameter: 1-3/4 in.
Reducers Included: Yes
with EGR: No
Weld-Up: No
Tuned: No
Bolts/Studs Included: Yes
Catalytic Converter(s) Included: No
Collector Bolts Included: Yes
Crossover Pipe Included: No
Gasket Or Seal Included: Yes
Header Fasteners Included: Yes
Installation Hardware Included: Yes
Motor Mounts Included: No
Mounting Hardware Included: Yes
Y-Pipe Included: No
Variations: 69116, 69820
Quantity: Sold as a pair.
Primary Tube Gauge: 16g
Primary Tube Diameter (in): 1.75 in.
Package Contents: Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware
Header Material: Mild Steel
Header Finish: Uncoated
Cylinder Head Port Shape: Round
Cylinder Head: Stock Profile Heads
Clutch Notes: Must use 1975 and later model clutch linkage located at rear of engine. (139)
Header Construction: MILD STEEL- Standard-Duty
Replacement Gasket: 27530
Replacement Head Flange Gasket: 27530
with A.I.R. System: No
Tube Size: 1-3/4 in.
Tube Style: Long Tubes
Exhaust System Dia: 2-1/2 in.
Air Conditioning: Yes
Automatic Transmission - Column: Yes
Automatic Transmission - Floor: Yes
Manual Transmission - Column: Yes
Manual Transmission - Floor: Yes
Power Steering: Yes
Footnotes: 265. Not for use on 1990-93 Chevrolet 454 SS 1/2 Ton Truck.
Chassis Compatibility: NOT For Vehicles With Offset (right) Engine Position!
Collector Attachment: 3 in.
Collector Diameter: 3 in.
Collector Size: 3 in.
Collector Style: BALL and SOCKET Style (Gasketless)
Reducer Outlet Size: 2-1/2 in.
Contents: headers, gaskets (when applicable), 3-bolt exhaust adapters, hardware
Tube Material Thickness: 16g
E.O. #: No
Emissions Notes: Not Legal For Street Use on '75-Later Model Years! Legal for off-road use only.
Finish: Uncoated
Finish Type: UNCOATED Mild Steel! Shipped with Temporary Paint.
Flange Style: Standard
Flange Thickness: 0.3125 in.
Header Port Shape: Round
Header Style: Long Tube
Notes: 68-91 GM Trucks & SUVs 396-502 2 & 4WD
Port Shape: Round
Material: Mild Steel
Tube Design: Standard
Tube Length: Long Tubes
