Hedman Hedders 62010 - 67-87 C10/C20 TRUCKS AND SUVS WITH SB CHEVY; UNCOATED 304 STAINLESS STEEL HEADERS; 1-5/8 IN. TUBE DIA.; 3 IN. COLL.; MID-LENGTH DESIGN
Hedman Hedders 62010 - 67-87 C10/C20 TRUCKS AND SUVS WITH SB CHEVY; UNCOATED 304 STAINLESS STEEL HEADERS; 1-5/8 IN. TUBE DIA.; 3 IN. COLL.; MID-LENGTH DESIGN
Hedman Hedders 62010 - 67-87 C10/C20 TRUCKS AND SUVS WITH SB CHEVY; UNCOATED 304 STAINLESS STEEL HEADERS; 1-5/8 IN. TUBE DIA.; 3 IN. COLL.; MID-LENGTH DESIGN
Hedman Hedders 62010 - 67-87 C10/C20 TRUCKS AND SUVS WITH SB CHEVY; UNCOATED 304 STAINLESS STEEL HEADERS; 1-5/8 IN. TUBE DIA.; 3 IN. COLL.; MID-LENGTH DESIGN
Hedman Hedders 62010 - 67-87 C10/C20 TRUCKS AND SUVS WITH SB CHEVY; UNCOATED 304 STAINLESS STEEL HEADERS; 1-5/8 IN. TUBE DIA.; 3 IN. COLL.; MID-LENGTH DESIGN
Hedman Hedders 62010 - 67-87 C10/C20 TRUCKS AND SUVS WITH SB CHEVY; UNCOATED 304 STAINLESS STEEL HEADERS; 1-5/8 IN. TUBE DIA.; 3 IN. COLL.; MID-LENGTH DESIGN
Hedman Hedders 62010 - 67-87 C10/C20 TRUCKS AND SUVS WITH SB CHEVY; UNCOATED 304 STAINLESS STEEL HEADERS; 1-5/8 IN. TUBE DIA.; 3 IN. COLL.; MID-LENGTH DESIGN
Hedman Hedders 62010 - 67-87 C10/C20 TRUCKS AND SUVS WITH SB CHEVY; UNCOATED 304 STAINLESS STEEL HEADERS; 1-5/8 IN. TUBE DIA.; 3 IN. COLL.; MID-LENGTH DESIGN
Hedman Hedders 62010 - 67-87 C10/C20 TRUCKS AND SUVS WITH SB CHEVY; UNCOATED 304 STAINLESS STEEL HEADERS; 1-5/8 IN. TUBE DIA.; 3 IN. COLL.; MID-LENGTH DESIGN
Hedman Hedders 62010 - 67-87 C10/C20 TRUCKS AND SUVS WITH SB CHEVY; UNCOATED 304 STAINLESS STEEL HEADERS; 1-5/8 IN. TUBE DIA.; 3 IN. COLL.; MID-LENGTH DESIGN

Hedman Hedders 62010 - 67-87 C10/C20 TRUCKS AND SUVS WITH SB CHEVY; UNCOATED 304 STAINLESS STEEL HEADERS; 1-5/8 IN. TUBE DIA.; 3 IN. COLL.; MID-LENGTH DESIGN

Write a Review
$1,887.71
$757.99
(You save $1,129.72 )
SKU: FBLG-62010
UPC: 732611620109
Stock: 0
Vendor: Motor State - CSR
SpecialOrder: False
CarbRejected: False
CouponIsOn: False
StockEta: N/A
ProfitMargin: 10.300
CostOfItem: 670.14
ItemPopularity: 0
MapPrice: 0
RetailPrice: 1887.71
EbayAllowed: False
WarehouseStock: 0
ShippingGroups: ["Flatrate_Motor State"]
EbayPrice: 751.99
ShipperHq: {"shipping-groups":["Motor State","FreeShipping","Flatrate_Motor State"],"shipping-origins":[],"shipping-dimensional-rules":[]}
IsReturnable: True
EbayPriority: 0

Out of stock

  • screenshot-2024-06-06-013938.png
Hedman Hedders 62010 - 67-87 C10/C20 TRUCKS AND SUVS WITH SB CHEVY; UNCOATED 304 STAINLESS STEEL HEADERS; 1-5/8 IN. TUBE DIA.; 3 IN. COLL.; MID-LENGTH DESIGN

Hedman Hedders 62010 - 67-87 C10/C20 TRUCKS AND SUVS WITH SB CHEVY; UNCOATED 304 STAINLESS STEEL HEADERS; 1-5/8 IN. TUBE DIA.; 3 IN. COLL.; MID-LENGTH DESIGN

$1,887.71
$757.99
(You save $1,129.72 )
Description

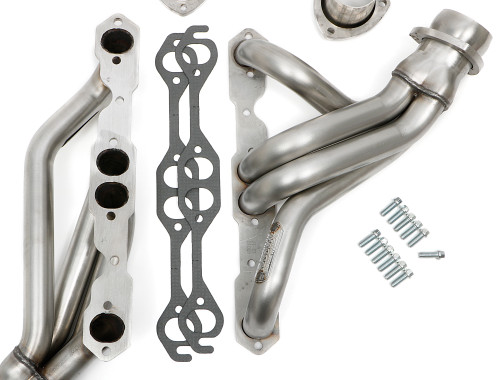

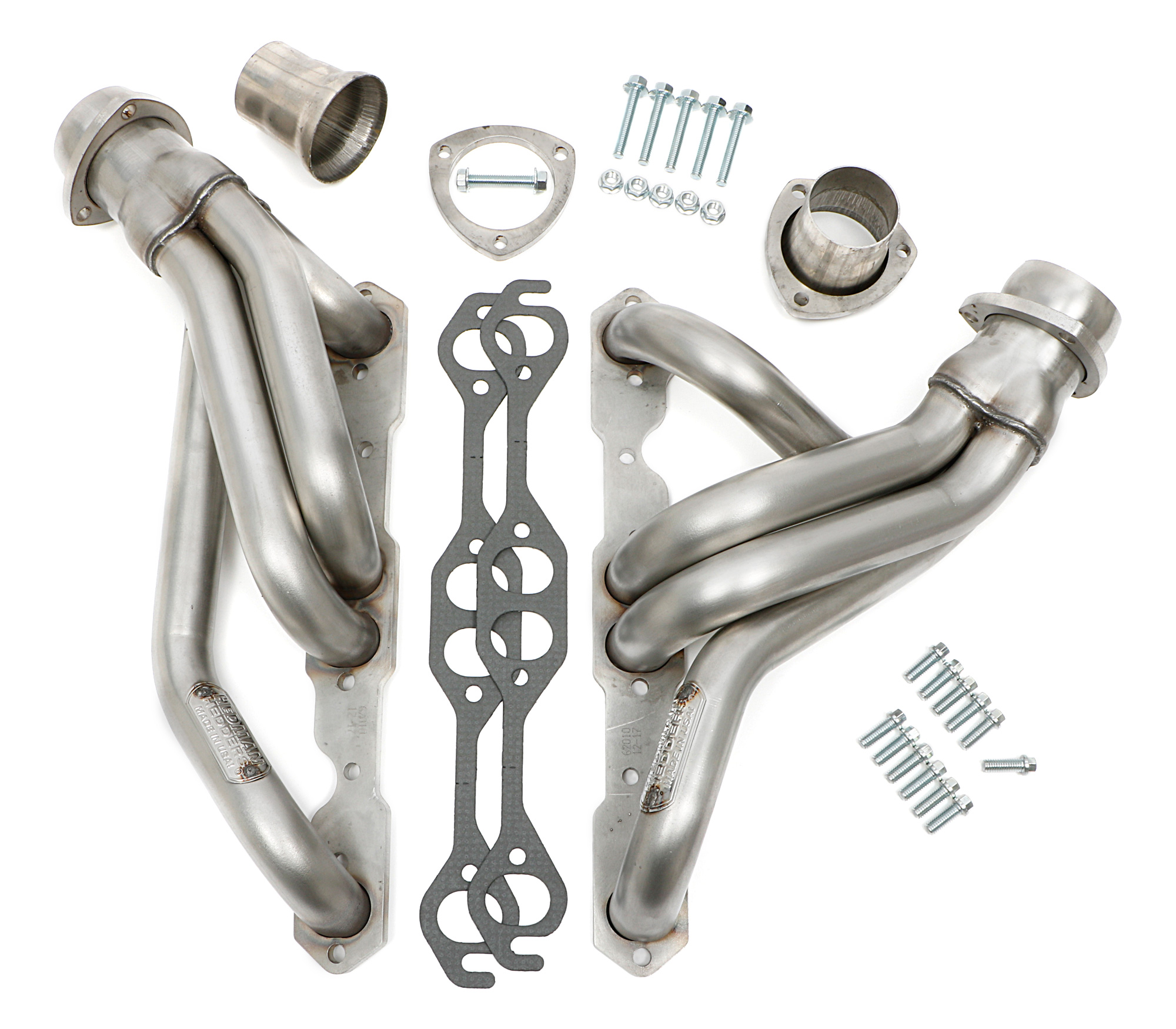

Hedman Hedders - 62010

Headers - 1.625 in Primary - 3 in Collector - Gaskets / Hardware Included - Stainless - Natural - GM Fullsize SUV / Truck 1967-87 - Pair

Raw T304 Stainless Steel, Mid-Length Headers For 1967-87 CHEVY/GMC 2WD (only) 1/2-3/4 Ton Pick-Up or SUV with 283-400 SB Chevy Engine (Centered Engine Chassis Only); 1-5/8 in. Long Tubes; 3 in. Ball/Socket Collector

  • 100% Premium T304 Stainless Steel Flange and Tube Construction.
  • T304 Stainless Material Is more Durable, Heat Resistant and Corrosion Resistant Than The 409 Stainless Steel Typically Used To Manufacture Exhaust Products.
  • Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
  • Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
  • Limited Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
  • Proud To Say, Made In The USA, Since 1954!

with EGR: No
Weld-Up: No
Tuned: No
Bolts/Studs Included: Yes
Catalytic Converter(s) Included: No
Collector Bolts Included: Yes
Crossover Pipe Included: No
Gasket Or Seal Included: Yes
Installation Hardware Included: Yes
Motor Mounts Included: No
Reducers Included: Yes
Tube Design: Standard
Y-Pipe Included: No
Quantity: Sold as a pair.
Primary Tube Gauge: 16g
Primary Tube Diameter (in): 1.625 in.
Package Contents: Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware
Header Material: T304 Stainless Steel
Header Finish: Raw
Cylinder Head Port Shape: Oval
Cylinder Head: Fits Factory GM Aluminum Angle Plug and Straight Plug Heads.
Header Construction: T304 STAINLESS STEEL
Replacement Gasket: 27520
Replacement Head Flange Gasket: 27520
Tube Length: Mid-Length Tubes
Special Engine Notes: Designed for use with the SB Chevy engine located in the factory position.
Tube Style: Mid-Length
Reducer Outlet Size: 2-1/2 in.
Air Conditioning: Yes
Air Conditioning Notes: 70-Up: LARGE compressor use Hedman 20110; SMALL compressor, modify OE bracket.
Automatic Transmission - Column: Yes
Automatic Transmission - Floor: Yes
Manual Transmission - Column: No
Manual Transmission - Floor: Yes
Power Steering: Yes
Transmission Compatibility: Manual Trans. must Use TailShaft style crossmember or modify factory crossmember
Chassis Compatibility: NOT For Vehicles With Offset (right) Engine Position!
Collector Attachment: 3 in.
Collector Diameter: 3 in.
Collector Size: 3 in.
Collector Style: BALL and SOCKET Style (Gasketless)
Exhaust System Dia: 2-1/2 in.
Material: T304 Stainless Steel
Contents: headers, gaskets (when applicable), 3-bolt exhaust adapters, hardware
E.O. #: No
Emissions Notes: Not Legal For Street Use on '75-Later Model Years! Legal for off-road use only.
Finish: Uncoated
Finish Type: Uncoated Stainless Steel
Flange Style: Standard
Flange Thickness: 0.375 in.
Header Port Shape: Oval Port
Header Style: Mid-Length Tube
Notes: 67-87 Chev. 1/2, 3/4 Ton Truck 283-400 2WD
Port Shape: Oval
Materials: 100% 304 Stainless Steel- Uncoated; 16g Tubes; 3/8 in. Head Flanges
Product Details: The short, compact design of these headers allows for maximum ground clearance.
Tube Diameter: 1-5/8 in.
Mounting Hardware Included: Yes
Tube Material Thickness: 16g
Tube Size: 1-5/8 in.
with A.I.R. System: No

Warranty Information
[{"BaseVehicleId":3071,"EngineBaseId":61},{"BaseVehicleId":3070,"EngineBaseId":61},{"BaseVehicleId":3069,"EngineBaseId":61},{"BaseVehicleId":3772,"EngineBaseId":61},{"BaseVehicleId":3770,"EngineBaseId":61},{"BaseVehicleId":3774,"EngineBaseId":61},{"BaseVehicleId":3773,"EngineBaseId":61},{"BaseVehicleId":3817,"EngineBaseId":61},{"BaseVehicleId":3816,"EngineBaseId":61},{"BaseVehicleId":3815,"EngineBaseId":61},{"BaseVehicleId":3818,"EngineBaseId":61},{"BaseVehicleId":3863,"EngineBaseId":61},{"BaseVehicleId":3862,"EngineBaseId":61},{"BaseVehicleId":3861,"EngineBaseId":61},{"BaseVehicleId":3864,"EngineBaseId":61},{"BaseVehicleId":117698,"EngineBaseId":5286},{"BaseVehicleId":117699,"EngineBaseId":5286},{"BaseVehicleId":137951,"EngineBaseId":5286},{"BaseVehicleId":137952,"EngineBaseId":5286},{"BaseVehicleId":13979,"EngineBaseId":5343},{"BaseVehicleId":13978,"EngineBaseId":5343},{"BaseVehicleId":117698,"EngineBaseId":5343},{"BaseVehicleId":14000,"EngineBaseId":5343},{"BaseVehicleId":13999,"EngineBaseId":5343},{"BaseVehicleId":117699,"EngineBaseId":5343},{"BaseVehicleId":15347,"EngineBaseId":5343},{"BaseVehicleId":137951,"EngineBaseId":5343},{"BaseVehicleId":15363,"EngineBaseId":5343},{"BaseVehicleId":137952,"EngineBaseId":5343},{"BaseVehicleId":3045,"EngineBaseId":61},{"BaseVehicleId":3044,"EngineBaseId":61},{"BaseVehicleId":3043,"EngineBaseId":61},{"BaseVehicleId":3042,"EngineBaseId":61},{"BaseVehicleId":3041,"EngineBaseId":61},{"BaseVehicleId":3829,"EngineBaseId":61},{"BaseVehicleId":3831,"EngineBaseId":61},{"BaseVehicleId":13970,"EngineBaseId":5286},{"BaseVehicleId":13991,"EngineBaseId":5286},{"BaseVehicleId":14012,"EngineBaseId":5286},{"BaseVehicleId":15339,"EngineBaseId":5286},{"BaseVehicleId":15355,"EngineBaseId":5286},{"BaseVehicleId":15370,"EngineBaseId":5286},{"BaseVehicleId":13972,"EngineBaseId":5343},{"BaseVehicleId":13971,"EngineBaseId":5343},{"BaseVehicleId":13970,"EngineBaseId":5343},{"BaseVehicleId":13993,"EngineBaseId":5343},{"BaseVehicleId":13992,"EngineBaseId":5343},{"BaseVehicleId":13991,"EngineBaseId":5343},{"BaseVehicleId":14014,"EngineBaseId":5343},{"BaseVehicleId":14013,"EngineBaseId":5343},{"BaseVehicleId":14012,"EngineBaseId":5343},{"BaseVehicleId":15340,"EngineBaseId":5343},{"BaseVehicleId":15339,"EngineBaseId":5343},{"BaseVehicleId":15356,"EngineBaseId":5343},{"BaseVehicleId":15355,"EngineBaseId":5343},{"BaseVehicleId":15371,"EngineBaseId":5343},{"BaseVehicleId":15370,"EngineBaseId":5343},{"BaseVehicleId":2982,"EngineBaseId":61},{"BaseVehicleId":2981,"EngineBaseId":61},{"BaseVehicleId":2980,"EngineBaseId":61},{"BaseVehicleId":2979,"EngineBaseId":61},{"BaseVehicleId":2978,"EngineBaseId":61},{"BaseVehicleId":3027,"EngineBaseId":61},{"BaseVehicleId":3026,"EngineBaseId":61},{"BaseVehicleId":3025,"EngineBaseId":61},{"BaseVehicleId":3024,"EngineBaseId":61},{"BaseVehicleId":3023,"EngineBaseId":61}]
