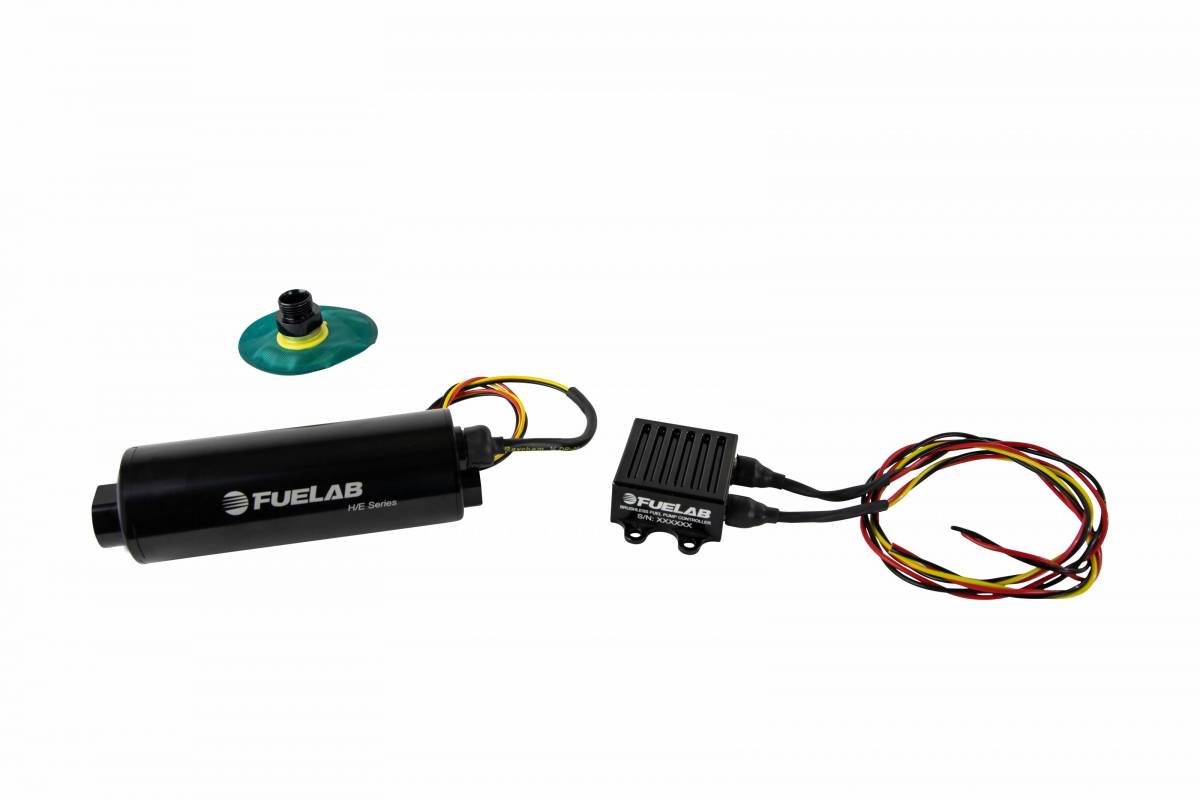

Fuelab - 20814

In-Tank Fuel Pump Kit - Contains 625lph Twin Screw Brushless Pump, Remote Mount Brushless Controller and 65 Micron Straining Filter.

Pump Features:

• Compatible with gasoline, diesel, methanol, and ethanol
• Twin Screw Rotor Pumping Mechanism
• 125PSI Max Operating Pressure
• 1500HP power support at continuous speed (Pump Gas, Naturally Aspirated)
• Higher efficiency means less current draw and less noise
• Superior Priming Capabilities
• Greater resistance to cavitation (vapor lock)
• Backed by a limited lifetime warranty

Motor Features:

• Lightweight super-efficient DC brushless motor to minimize current draw
• Powerful high flux density Neodymium rare earth magnets
• No motor brushes to wear out or corrode (low-Sulfur diesel, no problem)
• Wet motor design, no dynamic shaft seals that can wear out

Controller Features:

• 12 to 16 volt vehicle electrical system compatibility
• Model 72004 Pump Controller included for Full Speed, PWM or 0-5v Input speed control
• Continuous duty motor speed

Construction Features:

• Compact, lightweight design, less than 3lbs
• Billet Aluminum Construction with anodize per MIL-A-8625, Type II
• Long Life, multi-fuel compatible Fluorosilicone static seals
• Accepts standard or port style -8AN fittings

Pulse Width Modulation Compatibility (PWM):

• Compatible with most aftermarket ECU's with PWM output frequency
• Compatible from 100Hz to 5000Hz
• AEM
• ECU Masters
• Fueltech
• Haltech
• Holley
• Link Engine Management
• Megasquirt
