Ford Racing - M-6010-M50X

Engine - Bare Block - 3.630 in Bore - 8.937 in Deck - 6-Bolt Main - 1-Piece Seal - Iron - Ford Coyote - Each

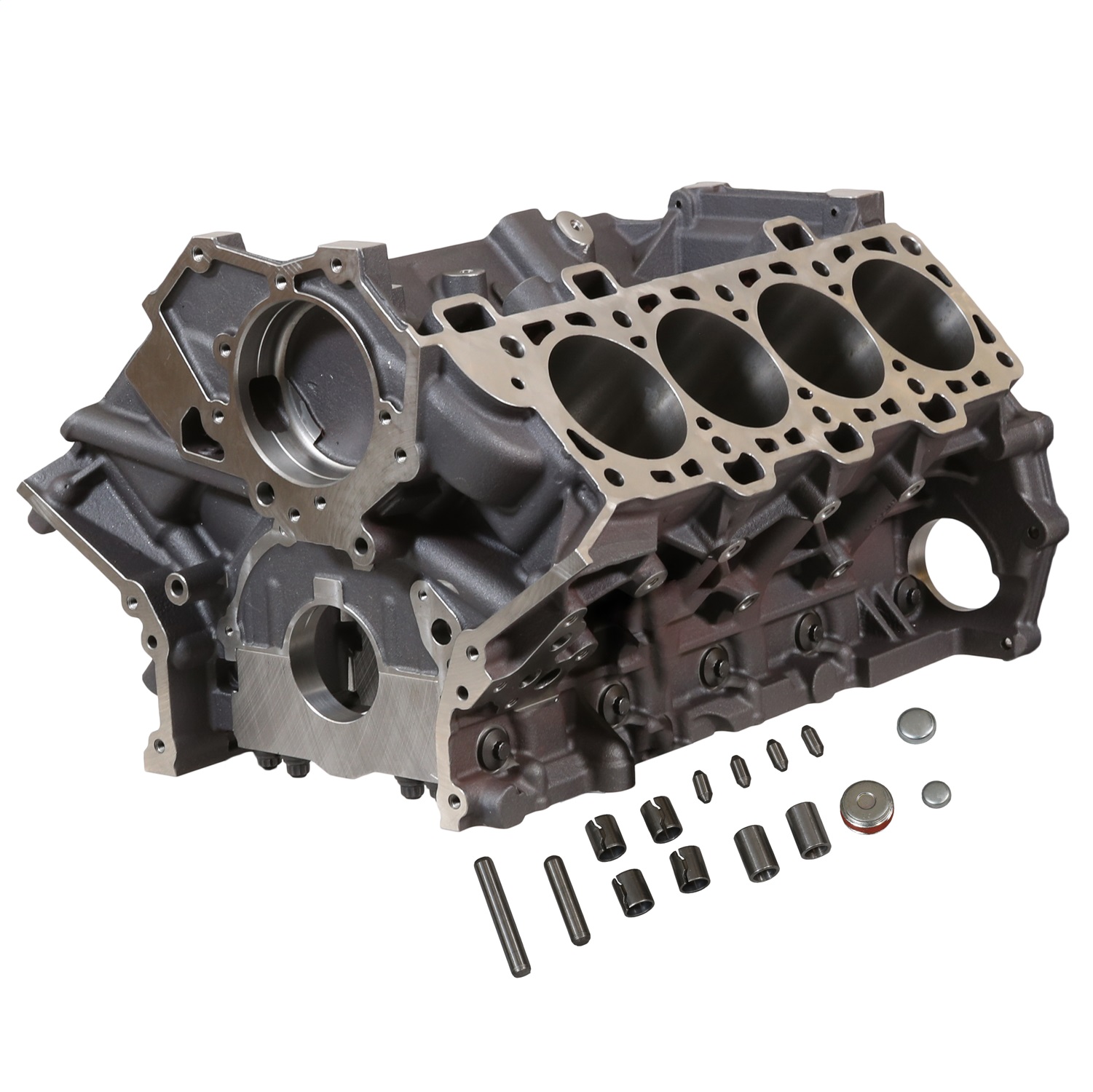

Coyote Production Engine Block; Iron; Race;

Ford Performance cast iron version of the 2011-2017 Coyote engine block. Cast from a proprietary grade class 50 iron. Designed for extra strength for max-effort/boosted Coyote engine builds.

• Deck Height 227 mm (8.937 in.)
• Finished Bore 92.2 mm (3.630 in.)
• Maximum Bore 95.0 mm (3.740 in.)
• Maximum Stroke 99 mm (3.897 in.)
• Maximum Displacement 5.6L
• Standard Coyote 100 mm Bore Spacing
• Lengthened Bores For Added Strength
• Revised Deck Design For Added Strength Around The Water Jackets
• Utilizes 12 mm Head Bolts
• Billet Steel 6 Bolt Main Caps w/Arp Hardware
• Accepts Gen 1 And Gen 2 Coyote 5.0L Cylinder Heads
• Accepts Gen 1
• Gen 2 And Gen 3 Gt350 5.2L Cylinder Heads
