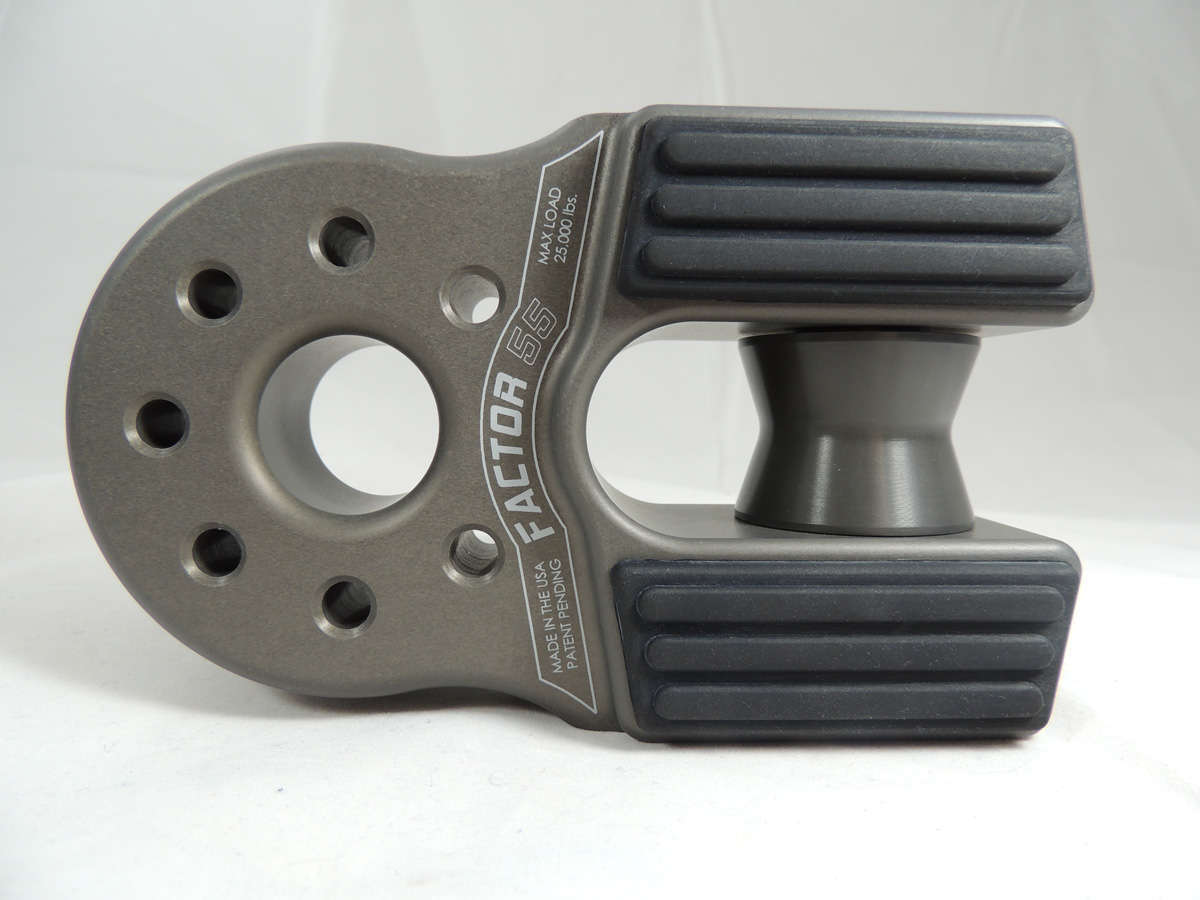

Factor 55 - 00090-06

The world’s first foldable winch shackle mount with self centering load pool. Compatible with wire rope diameters of up to 3/4 inch and synthetic rope tube thimbles up to 5/8 inch in diameter. Fits shackle pin diameters of 1 1/8 inch. 7/8 inch diameter titanium double shear pin. Minimum breaking strength of 65,000 lbs.
Features:

• Color: Anodized Gray
• Replace conventional winch hooks with a safer more secure shackle/D-ring
• Safer recoveries through the practice of Closed System Winching
• Lightweight – Precision CNC machined 6000 series Military Grade Aluminum
• No splicing required – double shear pin design
• Designed for both steel cable and synthetic winch rope eyes
• Equipped with a shear pin load centering spool for wire rope applications
• Foldable and stows rattle free against fairleads
• Integrated EPDM rubber pads for fairlead protection
• Fits common 7/8 and 1inch screw pin shackle sizes (1.0 and 1.125 pin diameters)
• For synthetic rope diameters up to 5/8 and wire rope up to 1 inch
• Available in the Military Specification Hard Anodizing (Mil-A-8625 F Type III) Gray
• 7/8 inch diameter double shear pin
• Max Rated Load: 26,000 pounds
• Ultimate Strength: 68,000 pounds
• Weight: 51oz
• Made in USA
