EngineQuest EQ-CH305B - Chevy 305 Vortec Cylinder Head

$728.55

$487.99

(You save $240.56 )

Description
Warranty Information

Description

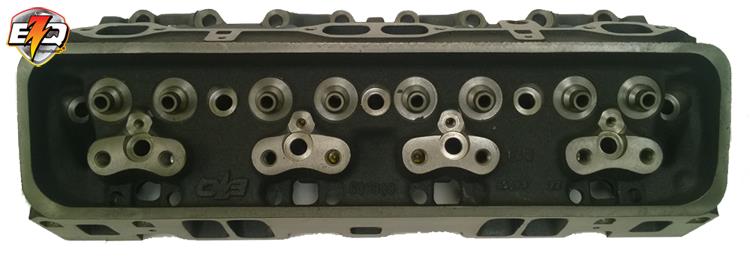

EngineQuest - EQ-CH305B

Cylinder Head - Performance - Bare - 1.840 / 1.500 in Valves - 170 cc Intake - 58 cc Chamber - Straight Plug - Iron - Small Block Chevy - Each

EngineQuest Cylinder heads are manufactured to meet or exceed the OEM specifications.

Highest grade of material used in manufacturing
Thicker decks for greater strength
Superior port finish for increased flow
Improved flow design to resist cracking

Accessory Bolt Holes Drilled: Yes

CNC-Machined Combustion Chamber: No

CNC-Machined Exhaust Runner: No

CNC-Machined Intake Runner: No

Combustion Chamber Style: D SHAPE

Combustion Chamber Volume (cc): 58CC - +/- 2CC

Cylinder Head Finish: Natural

Cylinder Head Material: Cast Iron

Cylinder Head Style: Bare

Damper Spring Included: No

Exhaust Port Location: Standard

Exhaust Runner Volume (cc): Stock

Exhaust Valve Diameter: 1.5

Exhaust Valves Included: No

Flow: Exhuast: Stock

Flow: Intake: Stock

Guideplates Included: No

Heat Crossover: No

Intake Port Location: Standard

Intake Runner Volume (cc): 170cc - +/- 2cc

Intake Valve Angle: Stock

Intake Valve Diameter: 1.84

Intake Valves Included: No

Lock Style: Steel

Locks Included: No

Machined for O-Ring: No

Number of Springs Per Valve: 1

Oiling Style: Pushrod

Retainer Material: Steel

Retainers Included: No

Rocker Arm Nuts Included: No

Rocker Arm Studs Included: No

Rocker Arms Included: No

Spark Plug Style: Straight

Standard Pack: Each

Steam Holes Drilled: No

Valve Cover Mounting Style: Center

Valve Guide Material: Iron

Valve Guides Included: Yes

Valve Seat Machine Style: 3 Angle Cut

Valve Seat Material: Steel

Valve Seats Machined: Yes

Valve Springs Included: No

Valve Stem Seal Style: NA

Valve Stem Seals Included: No
