Description

Eagle - 15012030

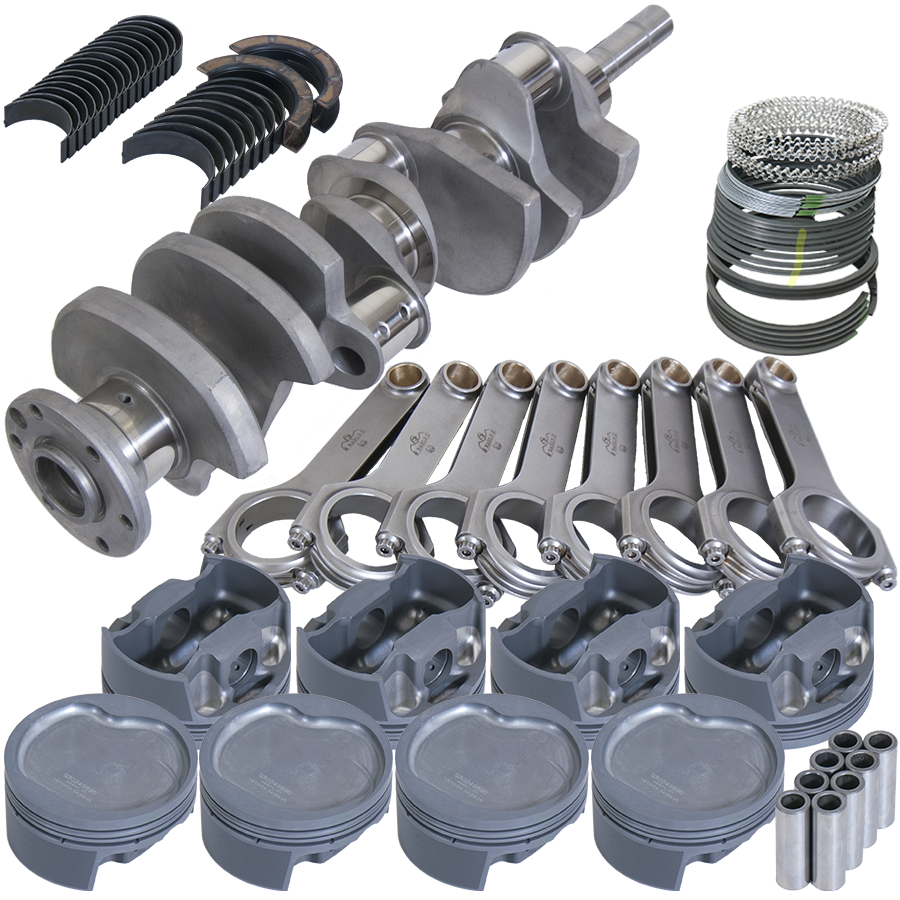

Rotating Assembly - Street / Strip - 545 CID - Forged Crank - Forged Pistons - 4.500 in Stroke - 4.390 in Bore - 6.700 in H Beam Rods - Big Block Ford - Kit

4.500" Forged 4340 Steel CRANK,6.700" H-BEAM RODS,7/16" ARP 8740 BOLTS,FORGED 4032 MAHLE -38CC INV. DOME 4.390" PISTONS,PLASMA-MOLY FILE-FIT RINGS,KING XP ROD/MAIN BEARINGS.

Eagle Competition Rotating Assemblies are perfect for all forms of racing use including nitrous and forced-induction.

Piston Ring Gap: Standard
Piston Ring Thickness: 1.5mm, 1.5mm, 3.0mm
Piston Type: Scj Inverted Dome Forged
Product Line: Competition
Rod Bearing Type: hardened, narrowed or chamfered
Rod Bearings Included: Yes
Second Piston Ring Type: Reverse Twist Iron
Thrust Washer Included: No
Top Piston Ring Type: Barrel Faced Plasma-Moly
Assembly Balanced: No
Assembly Type: Competition Assembly
Balance Type: internal
Bore: 4.39
Connecting Rod Bolt Diameter: 7/16 in
Connecting Rod Bolt Material: ARP 8740
Connecting Rod Design: H-Beam
Connecting Rod Length: 6.800 in
Connecting Rod Material: Forged 4340 Steel
Crankshaft Center Counterweights: No
Crankshaft Flange Bolt Holes: 6
Crankshaft Main Journal Diameter: 3.000 in
Crankshaft Material: Forged 4340 Steel
Crankshaft Reluctor: No
Crankshaft Rod Journal Diameter: 2.200 in
Crankshaft Stroke: 4.500 in
Cylinder Bore Diameter: 4.390 in
Damper Included: No
Flexplate/Flywheel Included: No
Main Bearing Type: hardened, narrowed or chamfered
Main Bearings Included: Yes
Oil Rail Support Included: No
Piston Brand: Mahle
Piston Dome Volume: -38cc
Piston Face Type: inverted dome
Piston Material: Forged 4032 Aluminum
Piston Pin Diameter: .990 in
Piston Pin Type: Full Floating
