Derale 14208 - Transmission Cooling Pan, Reduces Fluid Temps up to 50°F, Increase Capacity

Derale 14208 - Transmission Cooling Pan, Reduces Fluid Temps up to 50°F, Increase Capacity

$451.61
$289.37
(You save $162.24 )
Description

Derale - 14208

Transmission Pan - Cooling - Deep Sump - Flat - 6.313 in Deep - Adds 7.938 qt Capacity - Steel - Black Paint - 4R100 / E4OD / 5R110 / 5R110W - Each

Transmission Cooling Pan; Reduces Fluid Temps up to 50deg.F; Increase Capacity

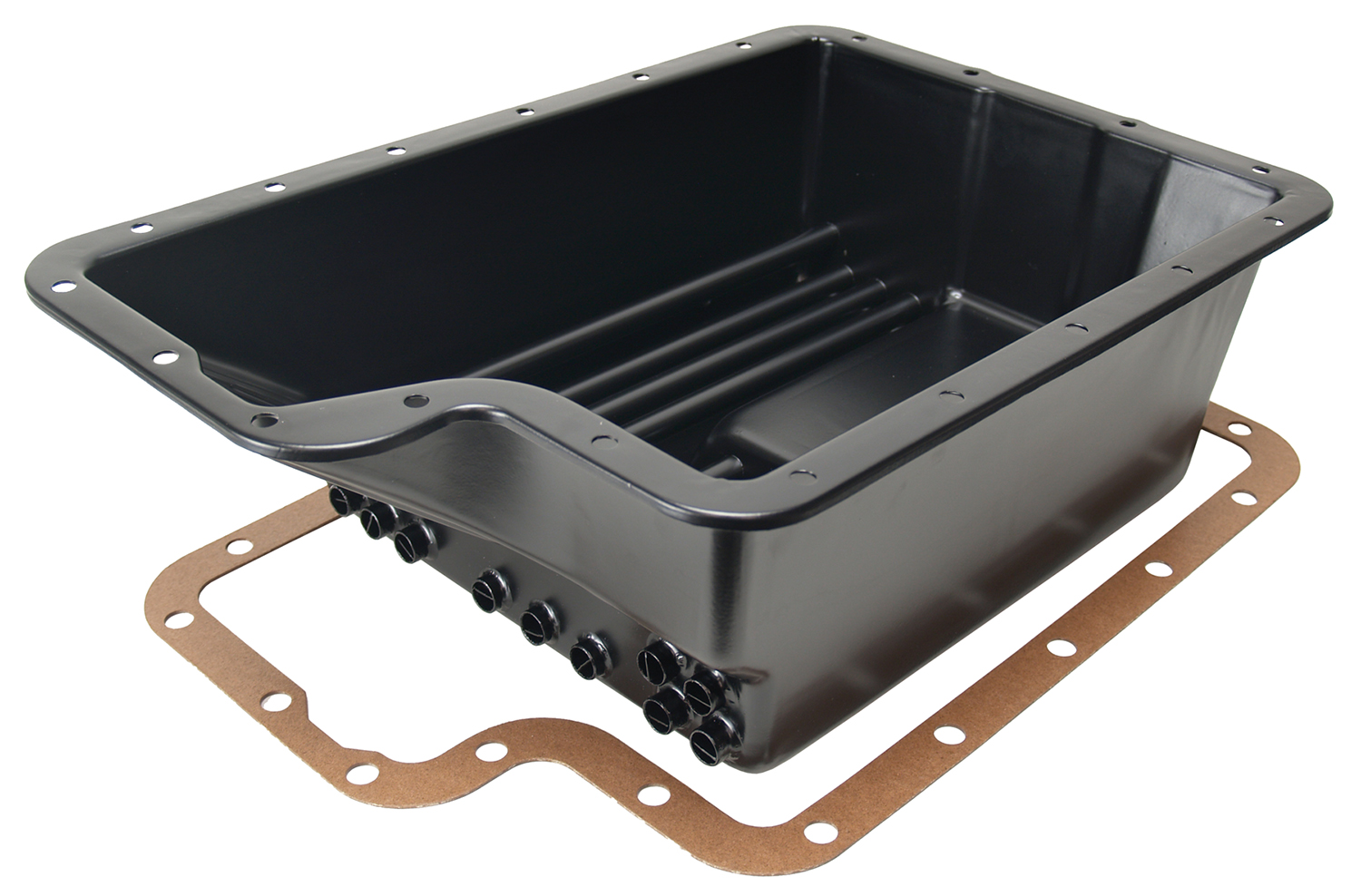

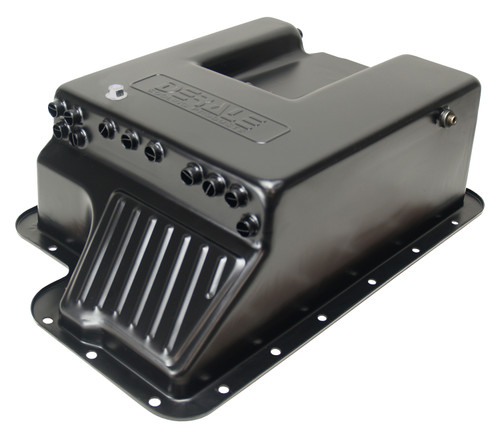

Derale's Transmission Cooling Pan #14208 uses air passing beneath the vehicle and redirects it to help lower transmission oil temperatures. Designed for Ford's E4OD, 4R100 and later 5R110 & 5R110W heavy duty transmissions, this pan features brazed, turbulator-equipped airway tubes passing through the lower section of the transmission pan for more efficient cooling, each is individually pressure tested to ensure a leak-free pan. We've included a much stronger magnetic drain plug and rubber/steel reusable washer, in addition to a 1/8 in. NPT temperature sender bung located in the side of the pan. Finished with a durable black two-stage coating, each pan also includes neoprene gasket and 1/8 in. NPT temperature sender plug.

  • Heavy Gauge Stamped Steel Construction
  • Two Stage Heat Dissipating Black Finish
  • 1/8 in. NPT Temperature Sender Port
  • Reduces Fluid Temperatures Up To 50 Degrees Fahrenheit
  • Increases Fluid Capacity By 8 qts. 10 oz.
  • Patented Turbulator Cooling Tubes Add Heat Transfer Capability
  • Magnetic Drain Plug With Increased Magnetic Strength And Rubber/Steel Washer
  • 6-1/8 in. Pan Depth

Color: Black
Pan depth: 6-1/8
Temp bung size: 1/8 NPT
Tube depth: 4-1/4
