CSF - 7220

Mercedes 190E 2.3-16/2.5-16 Aluminum High-Performance Radiator

CSF manufactures the most advanced and efficient radiator in the industry for your 190E. CSF uses innovative tube and fin technologies with industry-leading testing methods to maximize airflow and heat dissipation.

The CSF radiator features a 2-Row 42mm aluminum core that not only increases the fluid capacity of the radiator, but also improves the cores ability to dissipate heat. CSF's Exclusive B-Tube Technology increases the heat transfer by approximately 15% over regular oval welded tubes. With nearly double the number of cooling fins and tubes the CSF Radiator will outperform the OEM unit by a significant margin. In addition, the super-efficient multi-louvered fins maximize airflow through the core for the best possible performance. The radiator mounts in the factory location and requires no modifications or cutting. The TIG-Welded 100% All Aluminum construction increases the overall strength of the radiator. This improves durability and longevity so you can be confident it will hold up to hard driving conditions.

• 2-Row, 42mm Ultra-High-Performance Dual Pass Core
• 2-Year Limited Warranty
• Cooling Tubes with CSF's Exclusive B-Tube Technology
• 6.5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
• CNC Machined Mounting Brackets and OEM Style Inlet/Outlet
• 100% All Aluminum TIG-Welded Construction
• Satin Finish

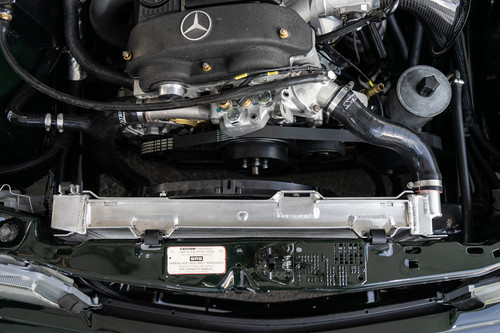

• True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications
• Individually Leak and Pressure Tested
• Includes CNC Cut Fan Mounting Brackets for a 16 inch SPAL Fan (Low Profile SPAL Fan PN: 30100400 - Medium Profile SPAL Fan PN: 30101516)
