COMP Cams 689-423-13 - Camshaft GM LS 358 VVT/AFM 27
COMP Cams 689-423-13 - Camshaft GM LS 358 VVT/AFM 27
COMP Cams 689-423-13 - Camshaft GM LS 358 VVT/AFM 27
COMP Cams 689-423-13 - Camshaft GM LS 358 VVT/AFM 27
COMP Cams 689-423-13 - Camshaft GM LS 358 VVT/AFM 27
COMP Cams 689-423-13 - Camshaft GM LS 358 VVT/AFM 27

COMP Cams 689-423-13 - Camshaft GM LS 358 VVT/AFM 27

Write a Review
$564.29
$512.99
(You save $51.30 )
SKU: COMP-689-423-13
UPC: 036584237945
Stock: 0
Vendor: Turn14 - CSR
SpecialOrder: True
CarbRejected: True
CouponIsOn: False
StockEta: N/A
ProfitMargin: 8.100
CostOfItem: 458.64
ItemPopularity: 0
MapPrice: 499.95
RetailPrice: N/A
EbayAllowed: False
WarehouseStock: 0
ShippingGroups: ["Flatrate_Turn14"]
EbayPrice: 512.99
ShipperHq: {"shipping-groups":["Turn14","FreeShipping","Flatrate_Turn14","CarbRejected"],"shipping-origins":[],"shipping-dimensional-rules":[]}
IsReturnable: True
EbayPriority: 0

Out of stock

  • screenshot-2024-06-06-013938.png
COMP Cams 689-423-13 - Camshaft GM LS 358 VVT/AFM 27

COMP Cams 689-423-13 - Camshaft GM LS 358 VVT/AFM 27

$564.29
$512.99
(You save $51.30 )
Description

COMP Cams - 689-423-13

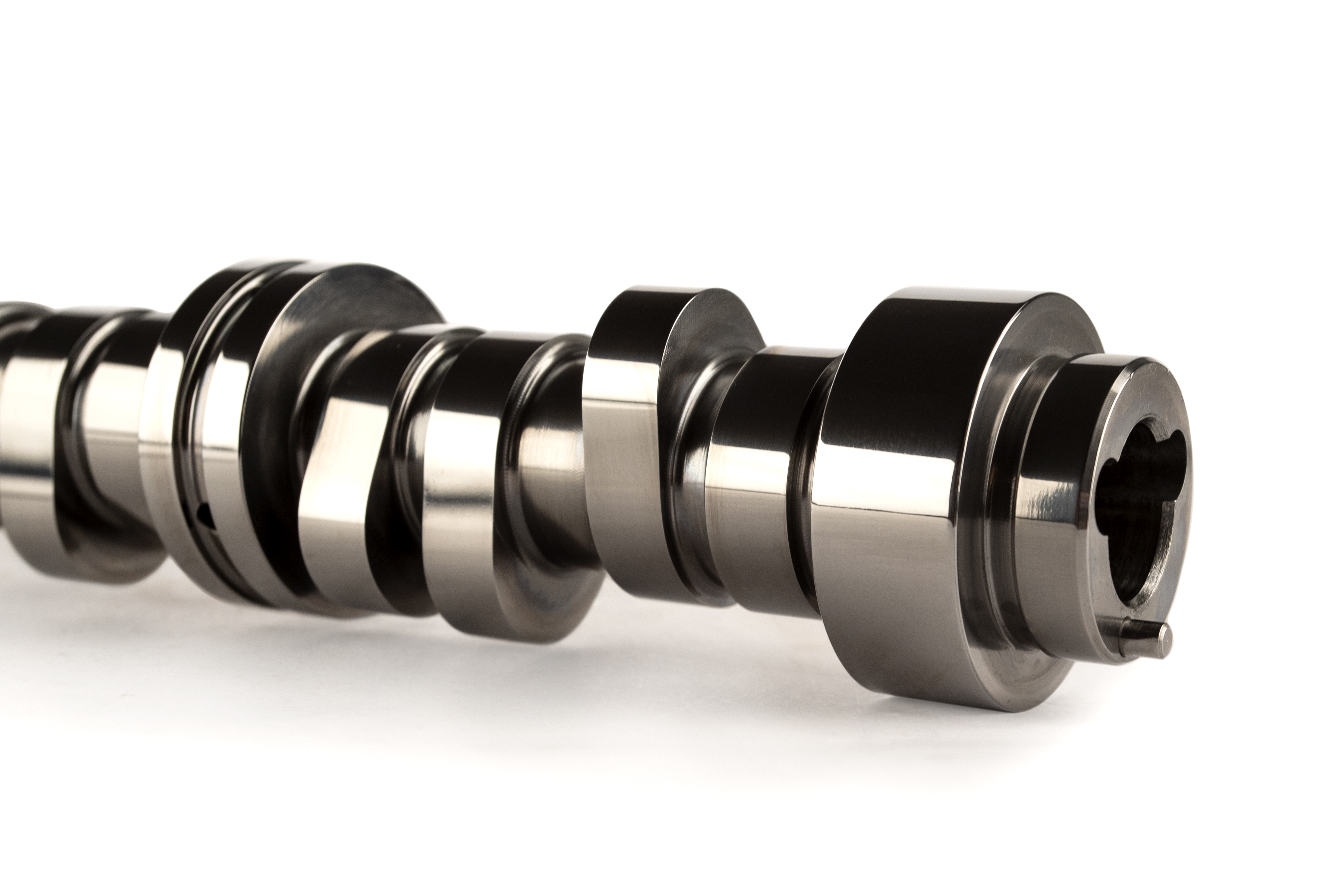

XFI AFM 224/236 D, 222/234 N Hydraulic Roller Cam for GM LS GEN IV

Outstanding top end power in modified L99 style applications, w/o sacrificing low end if properly programmed.

Camshaft Series: XFI AFM
Grind Number: 274PIIHR16
Lobe Separation: 116
Lifters Included: No
Valve Springs Required: Yes
Assembly Lubricant Included: No
Camshaft Gear Attachment: 1-Bolt
Camshaft Material: Billet Steel
Usage: Street/Performance
Intake Valve Lift Non-Deactivation Cylinders: 0.5
Intake Valve Lift Deactivation Cylinders: 0.5
Intake Duration at .050 Inch Lift Non-Deactivation Cylinders: 222
Intake Duration at .050 Inch Lift Deactivation Cylinders: 224
Advertised Exhaust Duration Deactivation Cylinders: 289
Exhaust Valve Lift Non-Deactivation Cylinders: 0.5
Advertised Exhaust Duration Non-Deactivation Cylinders: 286
Exhaust Duration at .050 inch Lift Non-Deactivation Cylinders: 234
Exhaust Duration at .050 inch Lift Deactivation Cylinders: 236
Advertised Intake Duration Non-Deactivation Cylinders: 274
Advertised Intake Duration Deactivation Cylinders: 286
Exhaust Valve Lift Deactivation Cylinders: 0.5
Engine Family: GM LS GEN IV Single Bolt w/ VVT (12606358) and w/ AFM 8 Cylinder (2008-2015)
C.A.R.B. E.O.: N/A
Amazon ASIN: B0066SUOI8
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
